Metrotile Romana Roof & Tiles
ROMANA ROOF TILE & SLATE
ROMANA ROOF TILE & SLATE
Living in Mediterranean style with benefits of 21th century materials

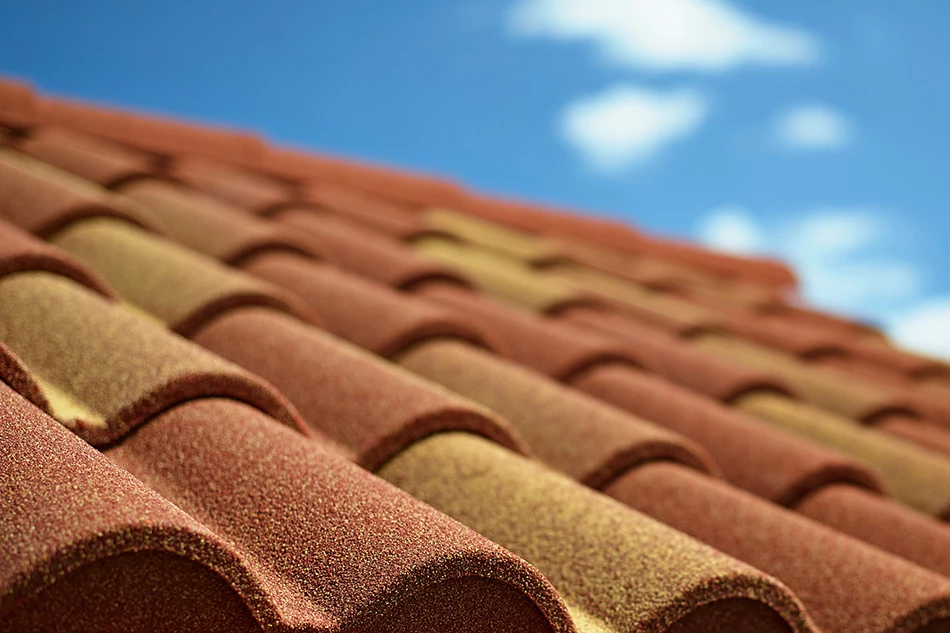

The Romana profile is designed to get the same appearance from traditions of centuries of Mediterranean architecture, with the additional benefits of steel roofing. With their distinctive shape and pronounced profile are unique among stone-coated steel tiles.
Because of the downturned front and the upturned rear edges, the panels have a strong overlapping and interlocking tile covering, which provides an excellent durability, protection and resistance to wind lift or other extreme weather conditions.
INFORMATION
BRAND
Metrotile
PRODUCT TYPE
Roof Tile & Slate
ROOF PITCH
- Maximum : 90 degrees
- Minimum : 15 degrees
DIMENSIONS
- Width of cover : 368 mm
- Length of cover : 1085 mm
- Overall Length : 1165 mm [± 3 mm]
- Overall Width : 400 mm [± 3 mm]
ROOF COVER
0.40 m²
TILES PER M²
2.5
WEIGHT
- Area : 7.5 kg/m²
- Tile Weight : 3.00 kg
TEXTURED SURFACE
Stone chip granules are applied to provide an attractive textured finish which at the same time enhance resistance to UV radiation. Granules are ceramic coated with lightfast heat resistant pigments.
POLYESTER BACKER COATING
This coating provides increased durability to the underside of the tiles.
STONE CHIP
Carefully selected granules provide excellent surface coverage and attractive natural looking and lasting colours.
BATTEN SPACE
368 mm
UP STAND
25 mm
STEEL THICKNESS
0.50 mm
STEEL GRADE
DX53D
STEEL SPECIFICATION
The Metrotile Romana tile is made of ZM250. ZM250 is a steel that is coated with alloy of 93,5 % zinc, 3,5 % aluminium and 3 % magnesium. The grade of steel used is designed to allow pressing without cracking while at the same time is ridged enough to tolerate reasonable loads.
TRANSPARENT PROTECTION LAYER
Clear 100% acrylic resin coating for granule binding and a semi-gloss finish. It helps enhance the appearance as well as increase the resistance to physical damage
POLYURETHANE PRIMER
The primer is applied by a coil coating process, this coating provides increased corrosion protection and a surface for superior adhesion of the basecoat that is applied.
BASECOAT
A tough opaque coating based on acrylic resin. It bonds the stone chips and protects the underlying layer from water and UV radiation. It has good UV resistance and retains its flexibility although it does become harder after the first few weeks.
ZINC-ALUMINIUM-MAGNESIUM COATING MASS
250 g/m
ZINC-ALUMINIUM-MAGNESIUM COATING GRADE
ZM250

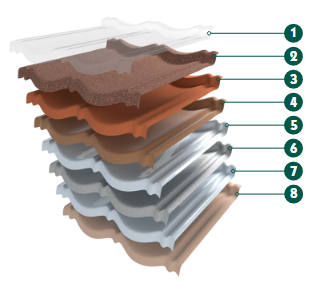

MATERIAL STRUCTURE
1. Transparent protection layer 2. Stone granules 3. Coloured acrylic basecoat 4. Polyurethane primer 5. Zinc-aluminium-magnesium alloy 6. Steel 7. Zinc-aluminium-magnesium alloy 8. Polyester backer coating
