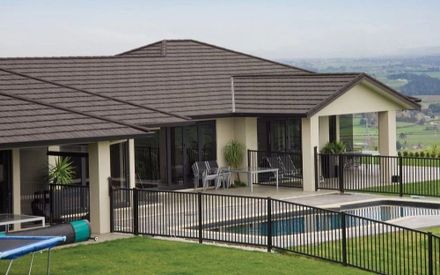

Inspired by classic wooden roofs but with all the strength of steel
The Shake tiles have all the features of traditional wooden shakes, but without the problems of splitting, warping or increased fire risk. Enhanced shadow lines and visual contrasts are combined with lightweight, long-life steel.
The Shake tiles are stone-coated panels pressed from a high grade of coated steel and are available in a wide selection of colours.
INFORMATION
PRODUCT TYPE
Roof Tile
BRAND
Metrotile
OVERALL LENGTH
1330 mm [± 3 mm]
LENGTH OF COVER
1265 mm
OVERGLAZE
Clear 100% acrylic resin coating for granule binding and a semi-gloss finish. It helps enhance the appearance as well as increase the resistance to physical damage.
OVERALL WIDTH
415 mm [± 3 mm]
WIDTH OF COVER
368 mm
MINIMUM PITCH
10° (18 %)
MAXIMUM PITCH
90°
BASECOAT
A tough opaque coating based on acrylic resin. It bonds the stone chips and protects the underlying layer from water and UV radiation. It has good UV resistance and retains its flexibility although it does become harder after the first few weeks.
UP STAND
25 mm
DOWN TURN
24 mm
ROOF COVER
0.466 m²
TILES PER M²
2.15
TRANSPARENT COATINGS
Both sides of the Aluzinc® alloy coated steel are coated with a transparent layer that provides protection and a uniform substrate for further coatings. This transparent coating allows identification of the aluminium-zinc substrate to be made by distributors and customers.
WEIGHT/PANEL
3.01 kg
WEIGHT/AREA
6.44 kg/m²
BATTEN SPACE
368 mm
DOWNLOADS
↓ Brochure
↓ Specification Sheet
TECHNICAL DIAGRAM
STONE CHIP
Carefully selected granules provide excellent surface coverage and attractive natural looking and lasting colours.
TEXTURED SURFACE
Stone chip granules are applied to provide an attractive textured finish which at the same time enhance resistance to UV radiation. Granules are ceramic coated with lightfast heat resistant pigments.
STEEL SPECIFICATION
The Metrotile Shake tile is made of Aluzinc® alloy coated steel. The grade of steel used is designed to allow forming without cracking or significant elastic recovery and at the same time to be rigid enough to tolerate reasonable loads without excessive deformation.
- Steel Grade : DX52D
- Steel Thickness : 0.41 mm
- Aluzinc® Coating Mass : 150 g/m²
- Aluzinc® Coating Grade : AZ150
TEXTURED
