Verano VKN1 Trench Heating Fan Assisted
KN1 Trench heating fan assisted
KN1 TRENCH HEATING FAN ASSISTED

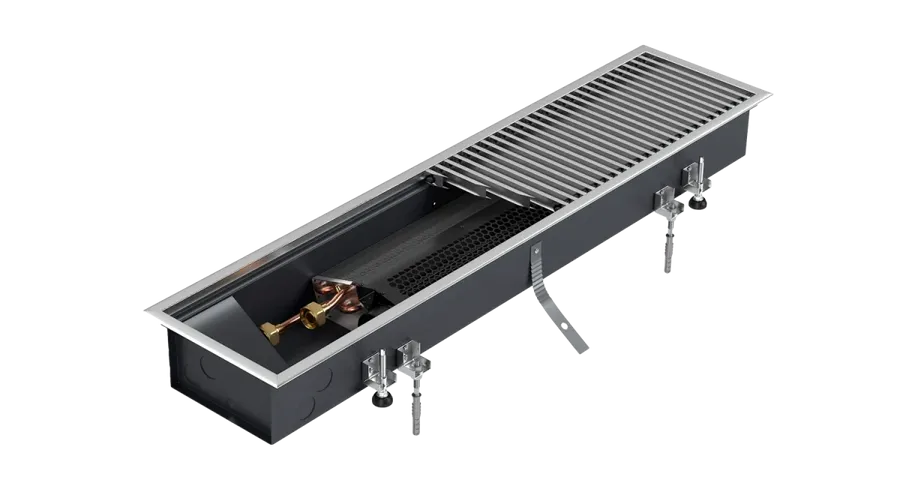

The VKN1 fan-assisted trench heater, thanks to its small size, will fit into any limited ceiling/raised floor space.
This feature can be particularly useful when considering trench heaters for retrofitted or thermo-modernized buildings, especially for rooms where the installation of trench heating was previously impossible due to space limitations.
We achieved higher heat output and shorter temperature control times by using more economical fan motors. With low thermal inertia and electronic temperature control, savings of up to 20% in the operating cost of the trench heating system can be easily achieved.
INFORMATION
BRAND
Pierre Frey
PRODUCT TYPE
Heater
COLLECTION
Vk12
PRODUCTION
Made in Poland
TEST PRESSURE
1.3 MPa.
DIMENSIONS
- Trench Height : 65, 90 mm
- Trench Length (Lk) 140,170 mm
- Trench Length : 950÷2000 mm
MATERIAL
- Steel
- Aluminium
APPLICATIONS
- Residential
- Commercial
MAXIMUM OPERATING TEMPERATURE
110°C
MAXIMUM PERMISSIBLE OPERATING PRESSURE
1.0 MPa.
MAXIMUM HYDRAULIC PRESSURE
1.69 MPa.
STANDARD EQUIPMENT
- Leveling Legs.
- Trench Struts .
- Fixing Anchors .
- Connection Space Cover .
- Highly efficient cooper-aluminium heat exchanger with air vent.
- Highly efficient cooper-aluminium heat exchanger with air vent.
- Casing made of galvanized steel sheet in standard black ral 9005 colour.
ENERGY CLASS
A
PN-EN
16430
ADDITIONAL EQUIPMENT
- Control System.
- Raised Floor Support System.
- Tray (cover) powder coated in any of the RAL colour.
- Air Filter (Requires Increasing The Height Of The Casing By 10mm).
- Decorative Frame : L Or F Type Made Of Natural Or Anodized Aluminium.
- Decorative Grille Made Of Natural Or Anodized Aluminium, Wood Or Stainless Steel .
FEATURES
-Highly energy-efficient heat exchanger -Dedicated control system -Customized trench heater design -Low noise level and energy-efficient EC fan motors -The shallowest and narrowest trench heaters in the range
DETAIL
VKN 1 fan-assisted trench heaters are ideal for any low-temperature system, especially in environments with high humidity. The fact that trench heaters distribute warm air evenly throughout the room can be considered as an advantage.
