ROMAN ROOF TILES
ROMAN ROOF TILES
An authentic Mediterranean look for your home.
The Roman tiles have been designed to imitate the look of traditional natural clay roof tiles to give your home an authentic Mediterranean feel. Roman tiles with their distinctive shape and pronounced profile are unique among stone-coated steel tiles.
A heart of high quality anti-rust coated steel with advanced stone granule coating guarantees optimal protection for your home. The Roman is available in a wide selection of colours. True elegance without the inherent weight and cost.
INFORMATION
BRAND
Metrotile
PRODUCT TYPE
Roof Tile & Slate
BATTEN SPACE
368 mm

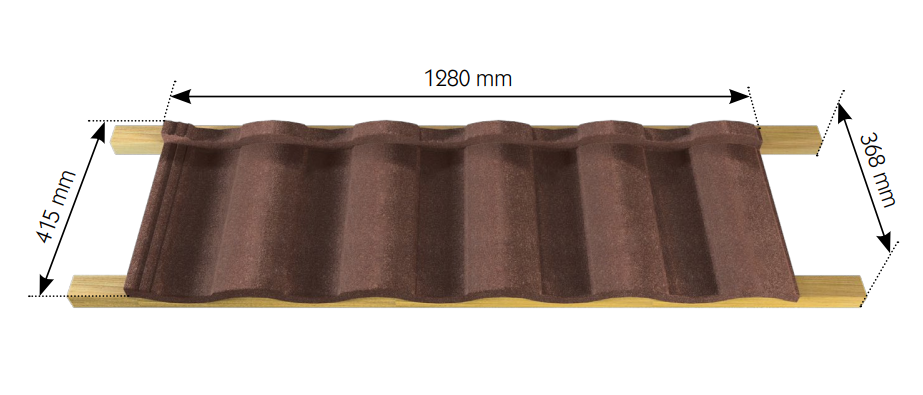

DIMENSIONS
- Width of cover : 368 mm
- Length of cover : 1220 mm
- Overall Length : 1280 mm
- Overall Width : 415 mm [± 3 mm]
ROOF COVER
0.449 m²
TILES PER M²
2.23
ROOF PITCH
- Maximum : 90 degrees
- Minimum : 10 degrees
WEIGHT
- Panel 3.01 kg
- Area 6.71 kg/m²
TEXTURED SURFACE
Stone chip granules are applied to provide an attractive textured finish which at the same time enhance resistance to UV radiation. Granules are ceramic coated with lightfast heat resistant pigments.
DOWN TURN
25 mm
UP STAND
28 mm
STEEL SPECIFICATION
The Metrotile iSlate tile is made of Aluzinc® alloy coated steel. The grade of steel used is designed to allow forming without cracking or significant elastic recovery and at the same time to be rigid enough to tolerate reasonable loads without excessive deformation.
STONE CHIP
Carefully selected granules provide excellent surface coverage and attractive natural looking and lasting colours.
OVERGLAZE
Clear 100% acrylic resin coating for granule binding and a semi-gloss finish. It helps enhance the appearance as well as increase the resistance to physical damage.
BASECOAT
A tough opaque coating based on acrylic resin. It bonds the stone chips and protects the underlying layer from water and UV radiation. It has good UV resistance and retains its flexibility although it does become harder after the first few weeks.
MATERIAL STRUCTURE
TRANSPARENT COATINGS
Both sides of theAluzinc® alloy coated steel are coated with a transparent layer that provides protection and a uniform substrate for further coatings. This transparent coating allows identification of the aluminium-zinc substrate to be made by distributors and customers.

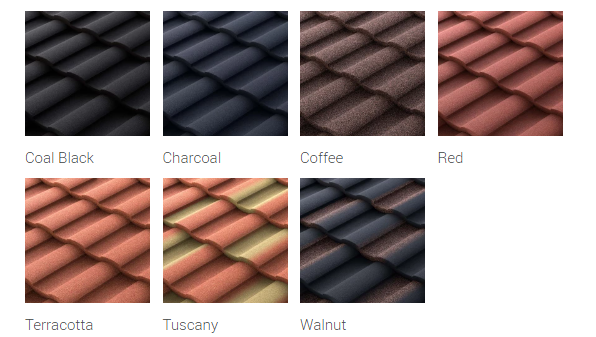

FINISHES
TEXTURED

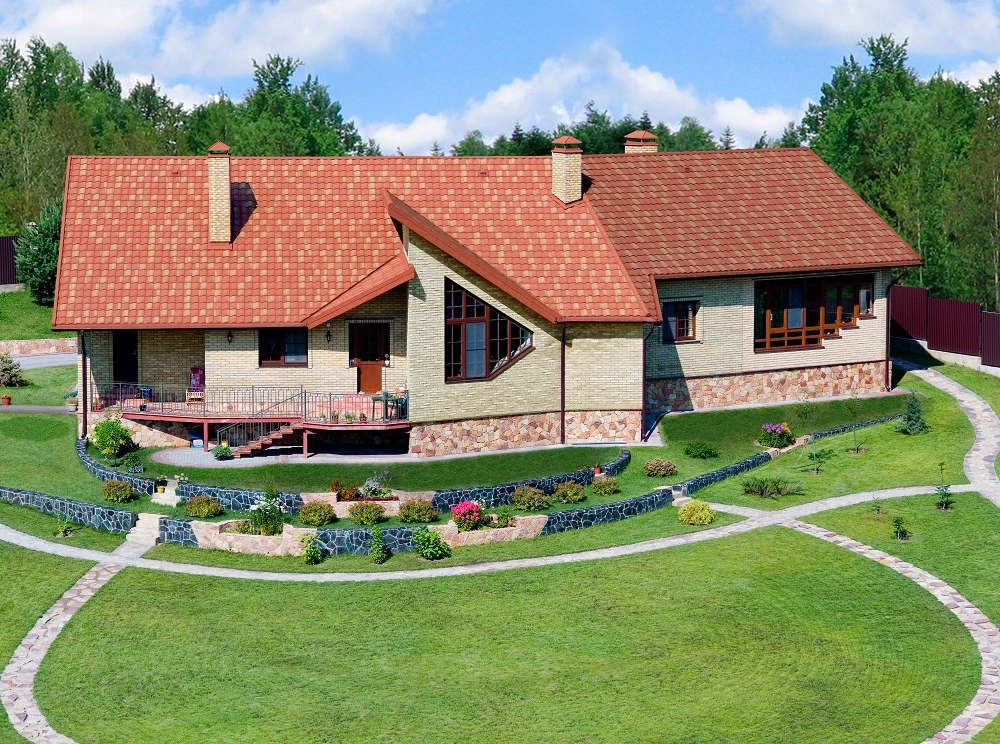

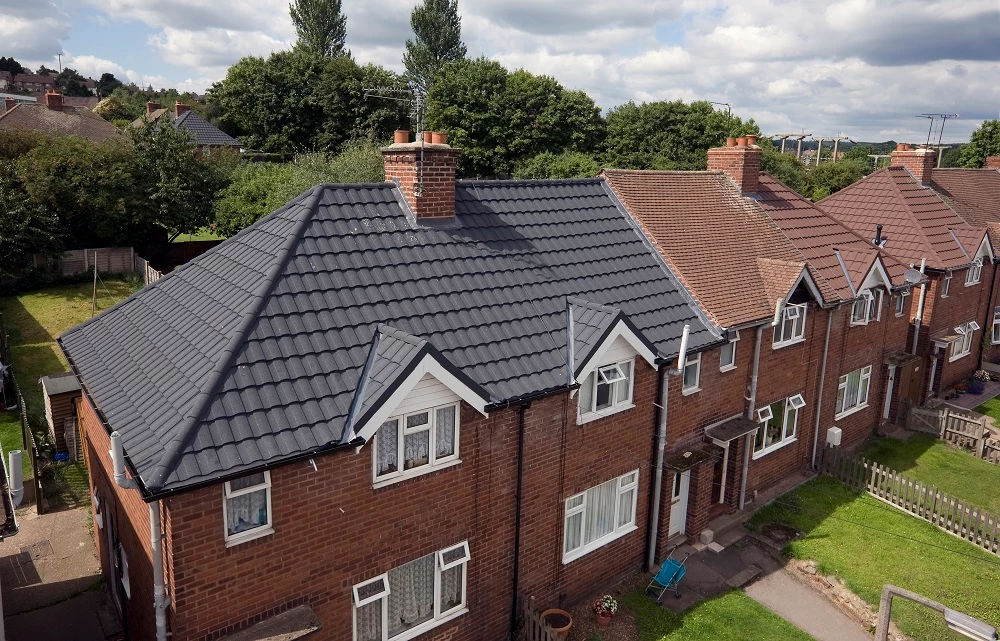

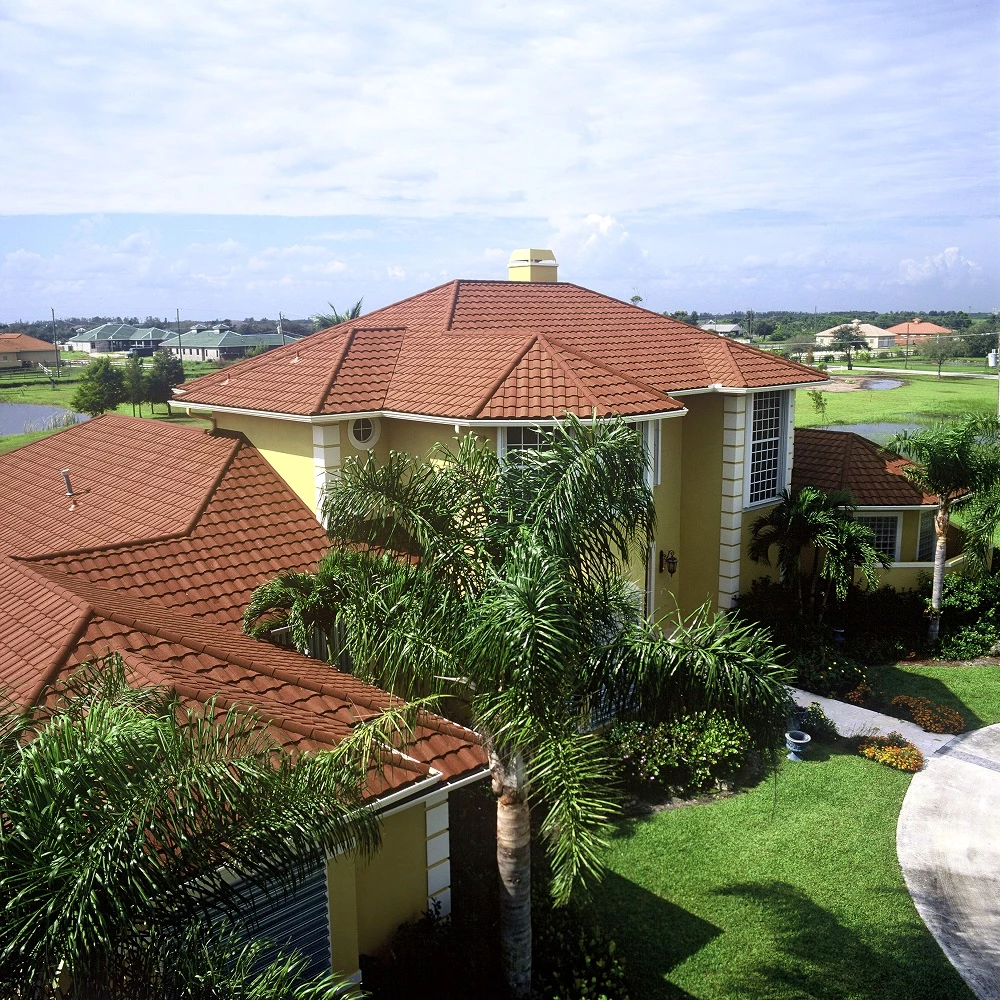

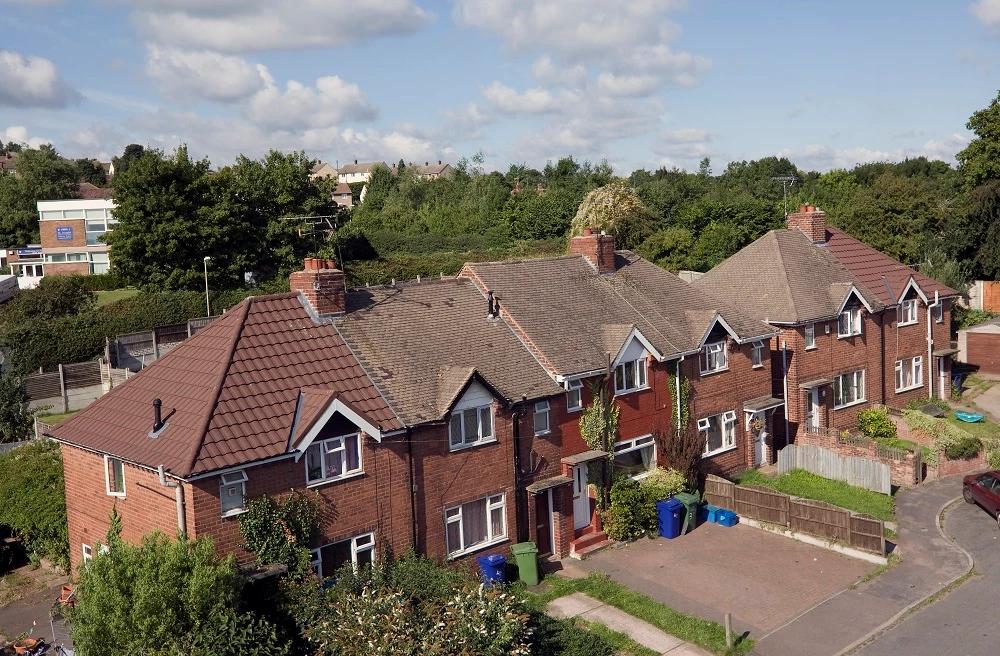

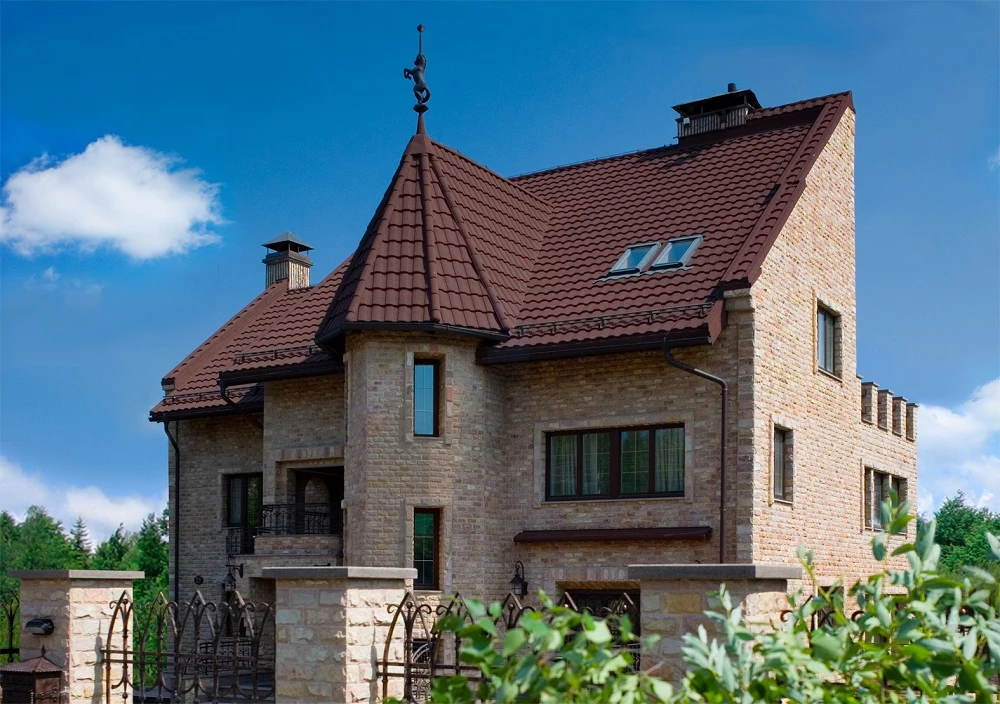

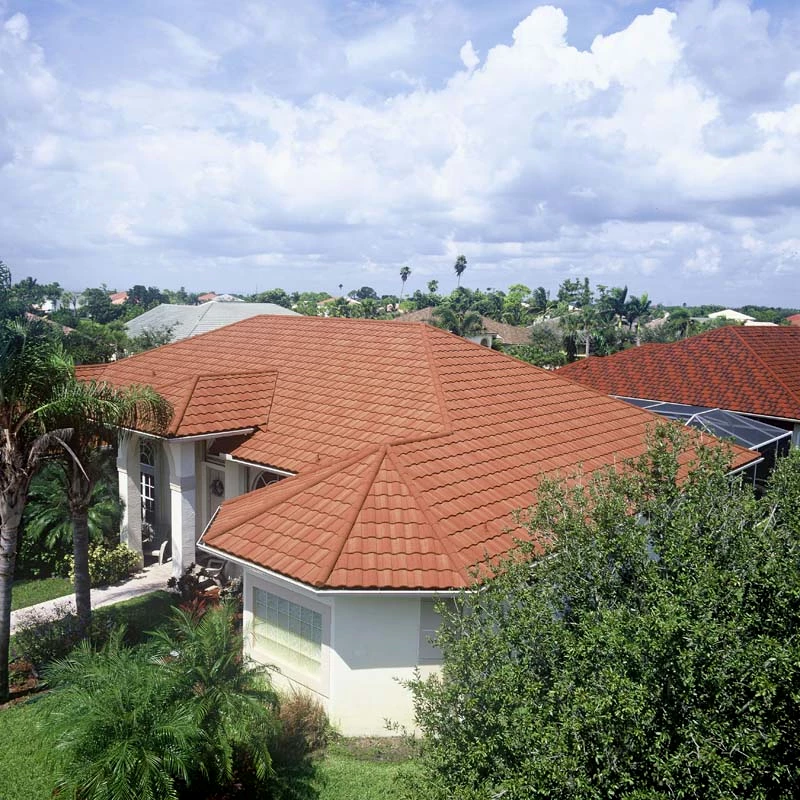

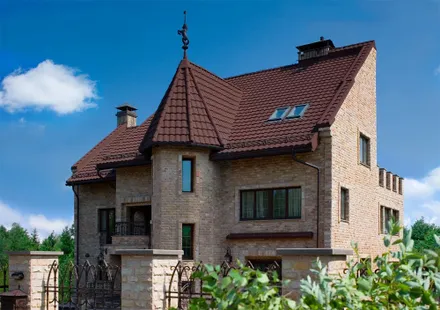

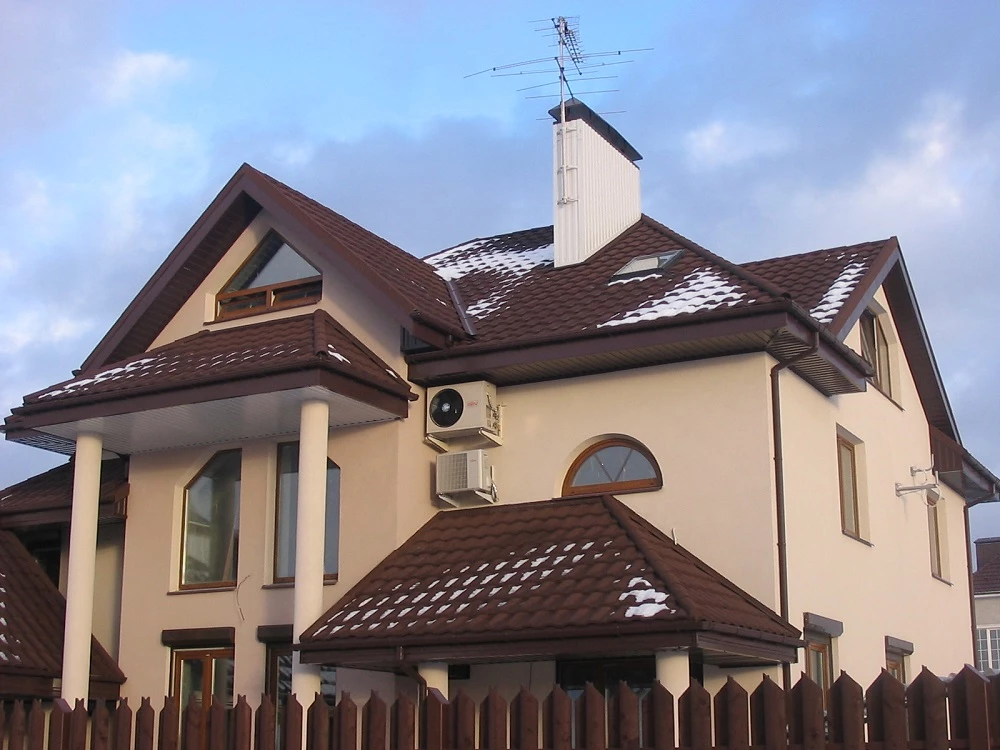

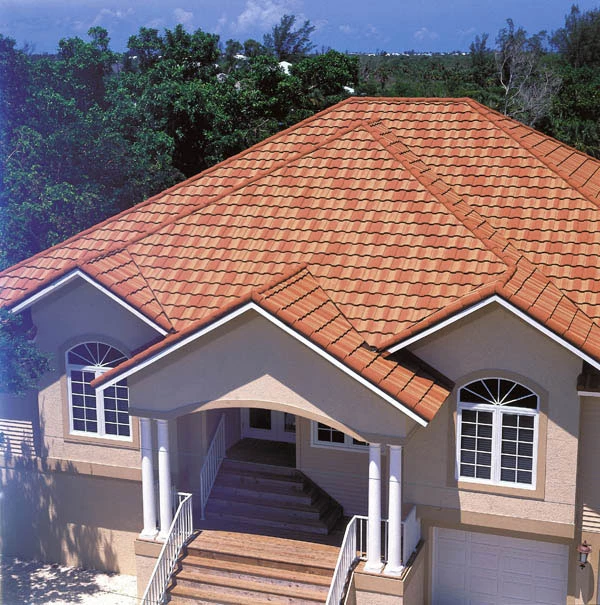

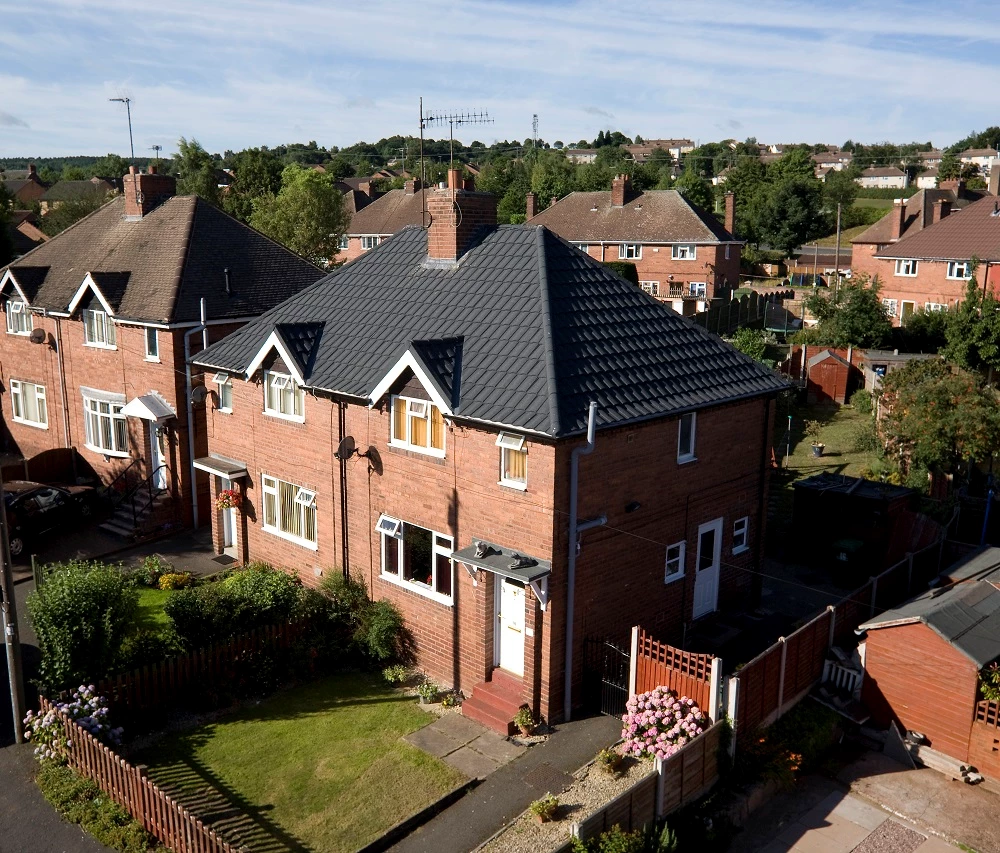

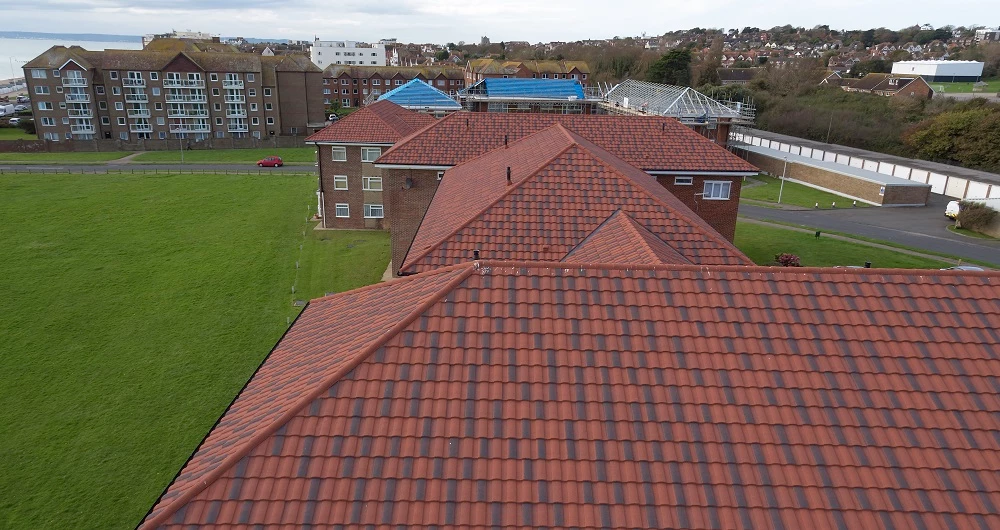

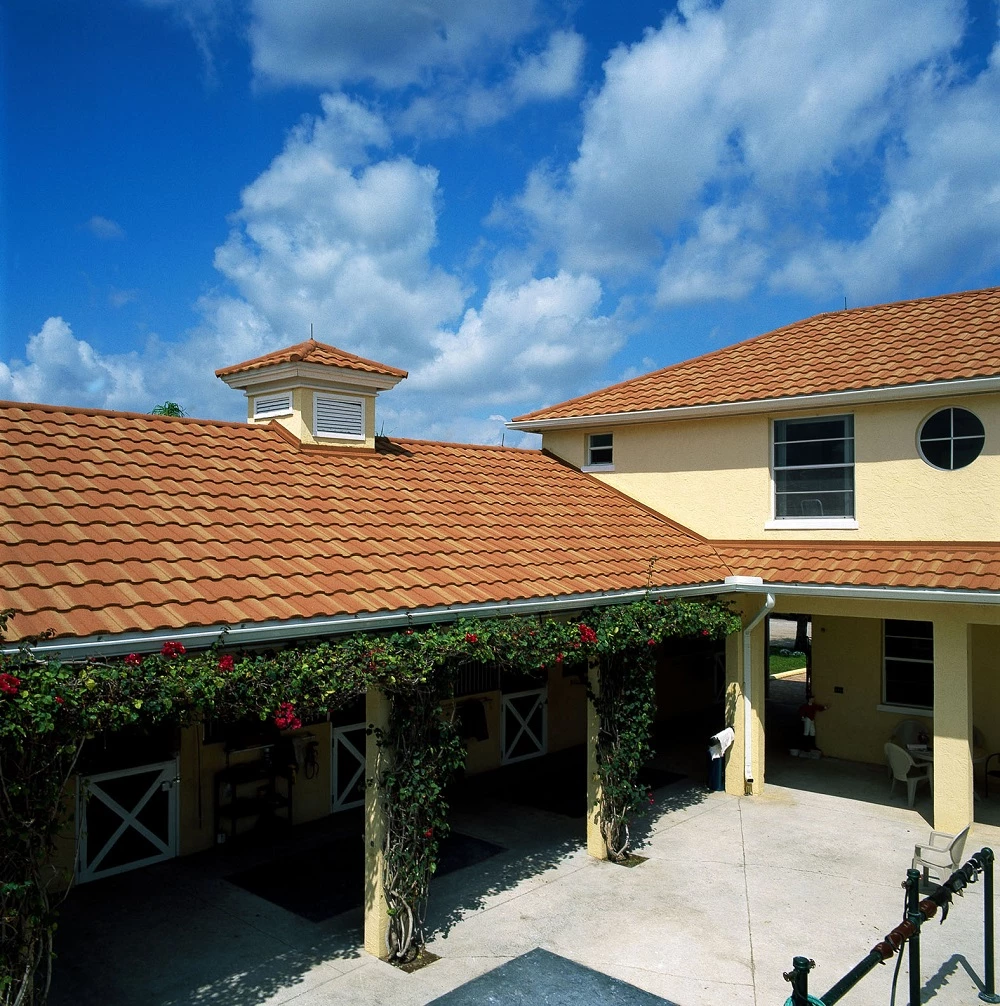

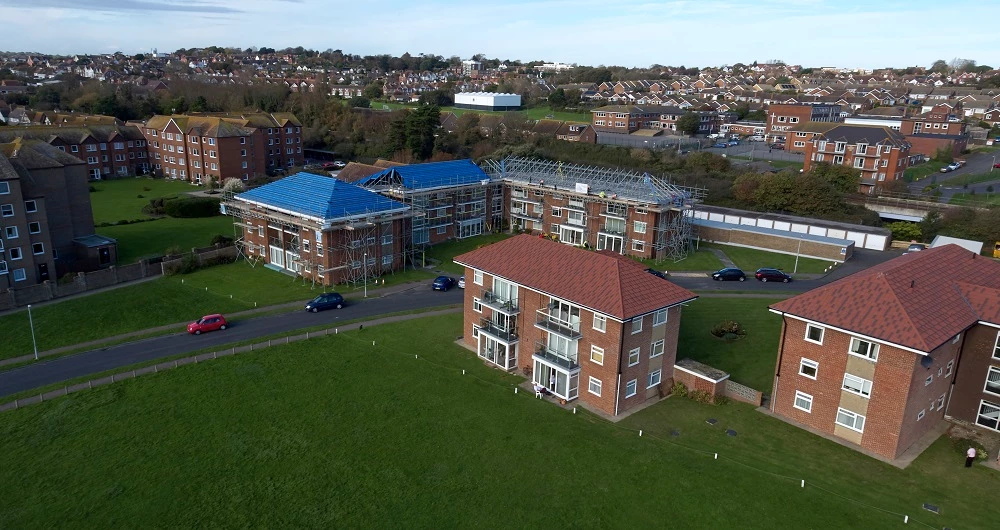

GALLERY
