HOOK-ON SYSTEM CONCEALED CEILING
HOOK-ON SYSTEM CONCEALED CEILING
Hook-on system is used for large spaces where there is a need for frequent access to the ceiling void. It is a concealed system, panels are fully demountable with the help of a hooked grid profile hanged to the aluminium or galvanised steel panels. This system enables the installation of larger panels with the size 300 mm to 1800 mm in length.
INFORMATION
BRAND
Deckon
PRODUCT TYPE
Ceiling
MATERIAL
- Steel
- Aluminium
CERTIFICATIONS
- CE
- TSE (EN 13964)
MONTAGE
Assembly content is being prepared
COLOR
White
PRODUCTION
Made in Turkey
SURFACE
Electrostatic Powder Coated
EDGE DETAIL
20-30mm up-turns, as specified
THICKNESS
0.50 - 0.70 mm
GRID SYSTEM
Concealed grid
SIZES
- 600x600 mm
- 300x600 mm
- 600x1200 mm
ACOUSTIC FELT
Local, Soundtex, Royalin, Lantor acoustic and non-flammable felt options
PERFORATION
Full perforated, 5 cm - 10 cm bordered, non-perforated Ø0.7 mm. / Ø1.5 mm. / Ø1.8 mm. / Ø2.5 mm.
DOWNLOAD
↓ DataSheet
FIRE RESISTANCE
Class A as steel
PANEL TYPE
0.5 - 0.7 mm aluminium orvanised steel
SUSPENSION SYST
- Black
- Hot dip galvanised steel
COLOURS
DETAIL
DETAIL
| NO. | DESCRIPTION | 300X1200 MM | 300X1800 MM | 600X600 MM | 600X1200 MM | 900X900 MM |
|---|---|---|---|---|---|---|
| 1. | Hook-on C Profile | 0.70 | 0.70 | 0.70 | 0.70 | 0.70 |
| 2. | Hook-on L Main tee | 0.83 | 0.83 | 0.83 | 0.83 | 0.83 |
| 3. | Hook-on L Profile - Splicer | 0.30 | 0.30 | 0.30 | 0.30 | - |
| 4. | Hook-on Z Profile | 0.83 | 0.55 | 1.67 | 0.83 | 1.10 |
| 5. | Hook-on Z Profile - Splicer | 0.30 | 0.20 | 0.55 | 0.30 | 0.40 |
| 6. | Pressing spring | - | - | - | - | - |
| 7. | Screw + Nut | 2.20 | 1.80 | 3.30 | 2.20 | 2.60 |
| 8. | M6 Wire - Dowel | 0.80 | 0.80 | 0.80 | 0.80 | 0.80 |
| 9. | M6 Hanger Wire | 0.80 | 0.80 | 0.80 | 0.80 | 0.80 |
| 10. | M6 Nut + Rondela | 1.60 | 1.60 | 1.60 | 1.60 | 1.60 |

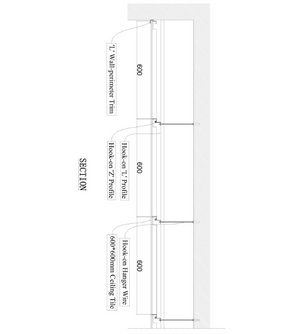

TECHNICAL DRAWINGS
