CIRCLELOCK SOLO MANTRAP DOOR
CIRCLELOCK SOLO MANTRAP DOOR
- Space efficient single cylinder compartment
- Multi-factor authentication
- Piggybacking detection with StereoVision
- Supports bi-directional traffic
.Offering the highest level of physical protection in a security entrance, the Circlelock Solo is the ultimate defence against intrusion into sensitive areas of a building.
Ensuring only one authorised person enters at a time, high security portals eliminate the need for manned supervision or guards. The salary of a guard supervising a swing door or open walkway 24 / 7 / 365, therefore provides a return on investment in under a year.
INFORMATION
BRAND
Boon Edam
COLLECTION
Circlelock
STANDARD DIMENSIONS
- Two door wings
- 584mm throat opening
- 200mm canopy height
LEVEL UP HIGH
2100–2600 mm / canopy height 200-600mm, in increments of 100mm
AESTHETICS
-Standard finish : Powder Coated Aluminium
-Level Up aesthetics : Stainless steel, anodic coating, anodizing, brass
PRODUCT TYPE
Security Doors
LEVEL UP SAFETY
Burglar or bullet resistant protection packages
STANDARD UNIT SIZE
- Width : 1000 mm
- Height : 2200 mm
POWER SUPPLY
- 50 / 60 Hz
- 110-240 VAC
SAFETY
- Fail-safe operation - Fire alarm connection, vandal resistant
LEVEL UP SECURITY
StereoVision Piggybacking detection, Biometric authorisation
COMFORT
Lighting : LED lighting
WEIGHT
750 Kg
LEVEL UP WIDE
1500 mm diameter
OPERATING POWER
65W
OPERATING TEMPERATURE
-15°C / +5°F to +50°C / +122°F
CAPACITY (PER MINUTE IN ONE DIRECTION)
5-6, dependent on access control system
DETAILS

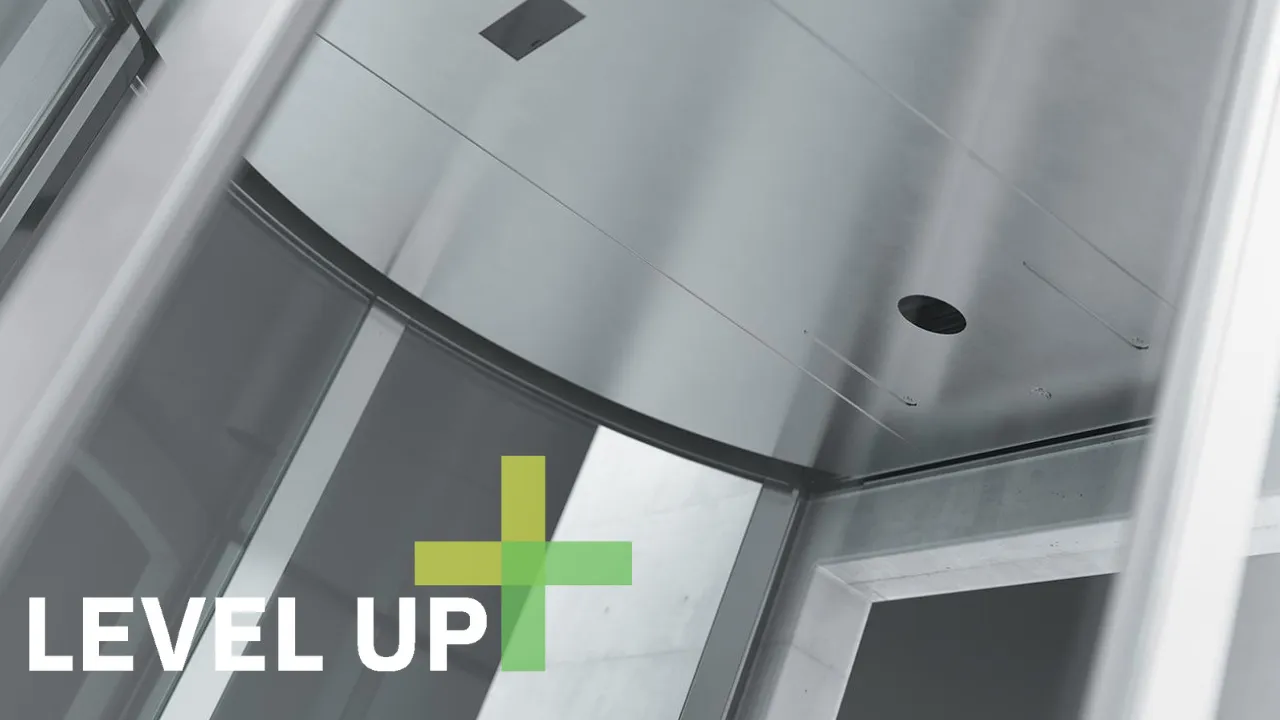

LEVEL UP
One size does not fit all and therefore the Circlelock Solo is highly customisable. This opens up a world of opportunities to create your own tailored high security entrance. To see the possibilities, download the Circlelock Solo brochure.
THE UNCOMPROMISING CREDENTIAL SOLUTION - BIOMETRICS
Organisations around the globe are making their buildings more secure by combining physical security entrances with biometric devices, ensuring only the right people are able to enter. Either as a stand-alone or paired with a standard access control device, biometric devices provide an advanced method for uniquely identifying authorised users based on distinguished biological traits. Authorising users based on these traits further mitigates the risk of unauthorised entry.
THE ULTIMATE SINGLE-ENTRY MANTRAP DOOR
The round, cylindrical compartment features two interlocking, automatic sliding doors. Upon authorisation, the first door opens allowing a user to enter the portal. Integrated sensors confirm the user is alone and if so, a signal is given to the second sliding door to open, completing the passage into the secure area. A secondary biometric system can be used to confirm identity once inside the chamber.
- Supervised disabled entry is possible
- Space efficient cylinder compartment with an interlocking door system for accurate tailgating detection
- Anti-piggybacking system (StereoVision – one or two-way)
- Working principle supports bi-directional traffic, multi-factor authentication
- Self-managed – no manned supervision required
- Steel floor construction facilitating mounting on a computer floor
- Surface mount supporting cost effective quick installation
- Onboard user communication system (integrated visual and audio feedback signalling)
- Fail-safe operation as standard, fail-secure optional
- Support for emergency egress (subject to local regulations)22.
- Seamless integration and feedback with access control systems, biometric devices and building management systems
DIMENSIONS
WORKING PRINCIPLE AND TECHNICAL DIMENSIONS
