Ondumit Royal Roof Sheets and Panel
ROYAL Roof Sheets and Panel
ROYAL ROOF SHEETS AND PANEL

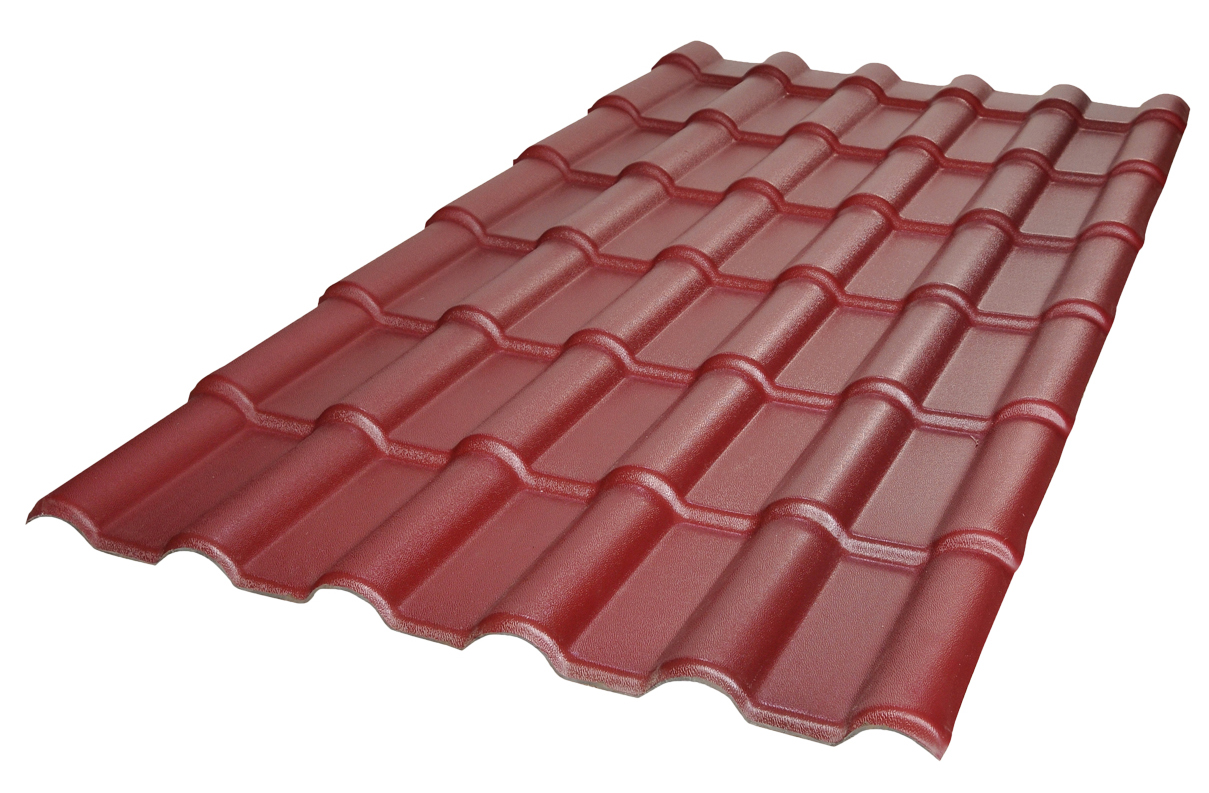

The Royal, which is produced with high technological equipment and reminiscent of the appearance of classic clay roof tiles, adds a modern image to the roofs with various color options while providing excellent sound insulation.
INFORMATION
BRAND
Ondumit
PRODUCT TYPE
Roofing Sheet
DIMENSIONS
- Width : 900 mm
- Length : Times of 250 mm
ONDUMIT ROOFING SHEETS
Ondumit roofing sheets are the result of the most advanced technology in the roofing industry.
WEIGHT
4.75 kg/m2
WORKING WIDTH
820 mm
MODERN AND PROGRESSIVE
While providing the buildings a modern and progressive outlook, Ondumit also resists physical and atmospheric impacts of utmost level.
TECHNICAL DRAWING
PITCH HEIGHT
30 mm
THICKNESS
2.5 mm, 3.0 mm
INSTALLATION AND ABILITY
Ondumit sheets are suitable to use on any kind of roof, and they stand out with properties such as lightweight, ease of installation and ability to use without any maintenance.
PRODUCTION
Made in Turkey
HEAD LAP
250 mm
INSULATION MATERIALS
The surface layer, coated with ASA, provides a further insulation and therefore an economic gain compared to all other alternatives which require extra insulation materials.
PURLINE SPACE
750 mm
DOWNLOAD
↓ Catalogue
ONDUMIT SHEETS
Ondumit sheets, thanks to its four-layer structure consisting of PVC, ASA and insulation layers, are manufactured for those who want their roof to last for life.
PITCH
Ondumit Premium Series are applicable to roof pitches from from 20° to 80°, For the pitch beyond thisrange, special measures should be taken during installation.
HIGHEST LOAD CAPACITY
Ondumit sheets, among all other alternatives, has the highest load capacityThey can carry more than 600 kg of spread weight on a sqm.
RESISTANT TO IMPACTS. DON’T BREAK OR CRACK.
No breaking or cracking were observed during a test while which a 25kg weight was dropped onto an Ondumit sheet which had been installed with a purlin space of 1m.
ADVANTAGES
- Highest Load Capacity.
- Fireproof and Nonflammable.
- 10 Times Lighter than Clay Tiles.
- Perfect Sound and Heat Insulation.
- Protection against Water and Humidity.
- Resistant to Impacts. Don´t Break or Crack.
- Long Lasting Color Stability and Physical Resistance.
- Nondeformable in Acidic Environment, Non-corrodible.
- Transportation and Installation are Cheaper and Easier.
- Warranted for 30 Years against Atmospheric Conditions. Fit for All Climates.
