Deckon Lay-On System Ceiling
LAY-ON SYSTEM CEILING
LAY-ON SYSTEM CEILING

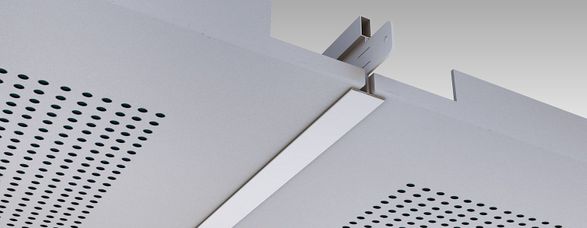

Lay-on system is formed by allowing aluminium or galvanised steel panels rest on T15/24 or T15/24 channel grid system.
The runners are visible and all the panels are demountable manually without any special tool so that the system enables fast and easy access to the ceiling void.
INFORMATION
BRAND
Deckon
PRODUCT TYPE
Ceiling
MATERIAL
- Steel
- Aluminium
CERTIFICATIONS
- CE
- TSE
PANEL TYPE
0.5 - 0.7 mm aluminium orvanised steel
SUSPENSION SYSTEM
- Black
- Hot dip galvanised steel
COLOR
White
PRODUCTION
Made in Turkey
THICKNESS
0.50 - 0.70 mm
GRID SYSTEM
T15/24 exposed grid
SIZES
- 300 mm x 300 mm
- 600 mm x 600 mm
- 600 mm x 1200 mm
ACOUSTIC FELT
Royalin, Lantor acoustic and non- ammable felt options
PERFORATION
Full perforated, 5 cm - 10 cm bordered, non-perforated 0.7 mm. / 1.5 mm. / 1.8 mm. / .2.5 mm.
DOWNLOAD
↓ DataSheet
FIRE RESISTANCE
Class A as Steel
SURFACE
Electrostatic Powder Coated
EDGE DETAIL
20-30mm up-turns, as specified
COLORS
DETAIL
DETAIL
| NO. | DESCRIPTION | 600X600 MM | 300X300 MM | 300X600 MM | 600X1200 MM | 300X1200 MM |
|---|---|---|---|---|---|---|
| 1. | T15/24 Main tee 3600 mm | 3.8 m | 3.8 m | 3.8 m | 3.8 m | 1.67 m |
| 2. | T15/24 Cross tee 1200 mm | 1.67 m | 3.00 m | 1.67 m | 1.67 m | 3.60 m |
| 3. | T15/24 Cross tee 600 mm | 3.8 m | - | 2.5 m | - | - |
| 4. | T15/24 Cross tee 300 mm | - | 2.5 m | 0.7 m | - | - |
| 5. | Z or L Wall angle 300 mm | 0.7 m | 0.7 m | 0.7 m | 0.7 m | 0.7 m |
| 6. | Double spring | 0.7 pieces | 0.7 pieces | 0.7 pieces | 0.7 pieces | 0.7 pieces |
| 7. | Steel dowel | 0.7 pieces | 0.7 pieces | 0.7 pieces | 0.7 pieces | 0.7 pieces |
| 8. | Hanger wire | 0.7 pieces | 0.7 pieces | 0.7 pieces | 0.7 pieces | 0.7 pieces |
| 9. | Acoustic fleece | - | - | - | - | - |
TECHNICAL DRAWINGS
