SKYMAX PERGOLA

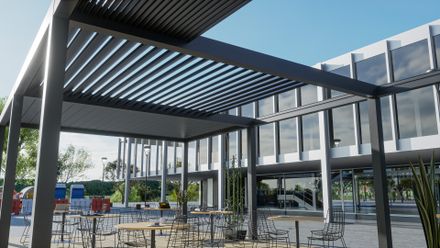

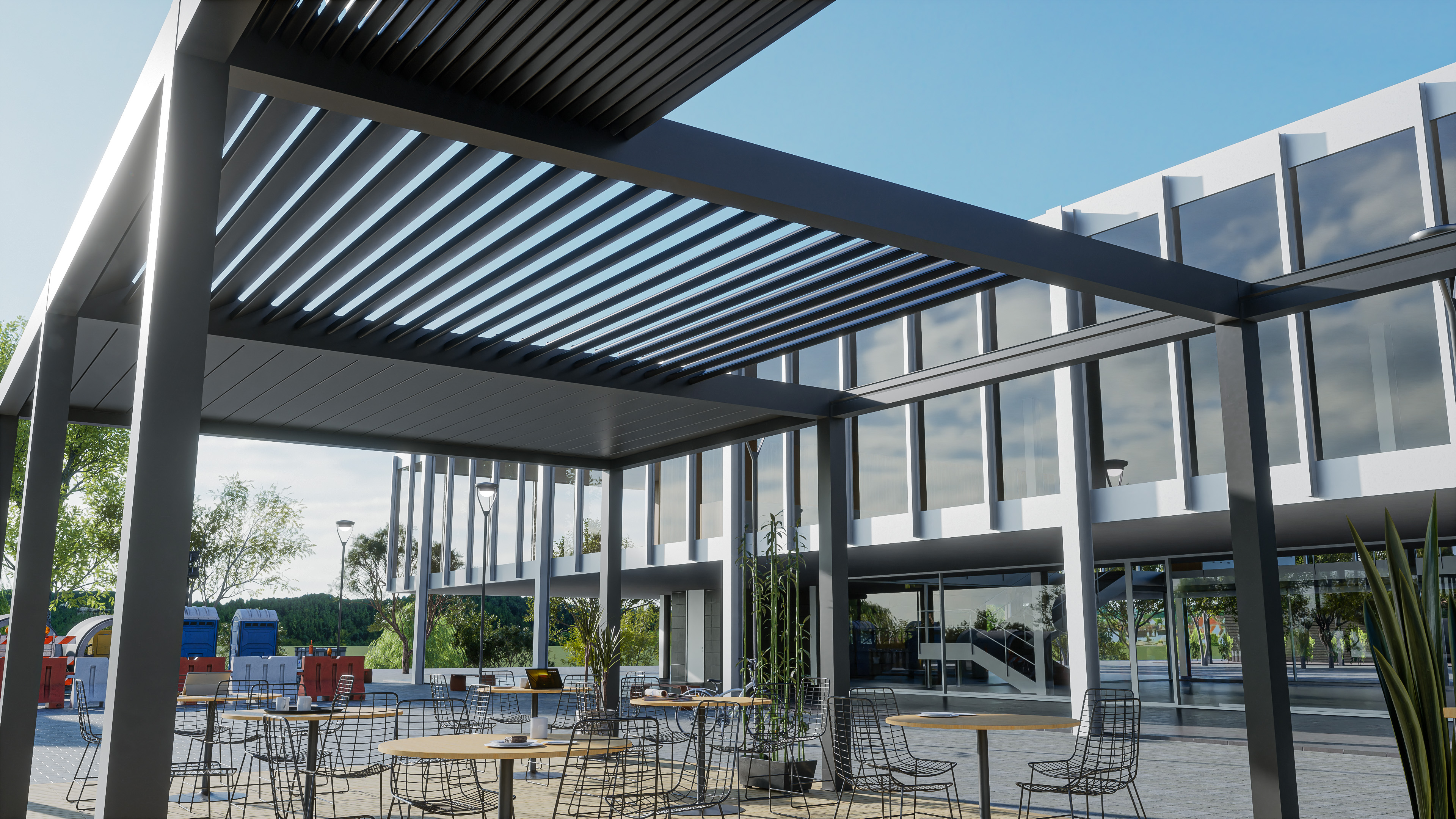

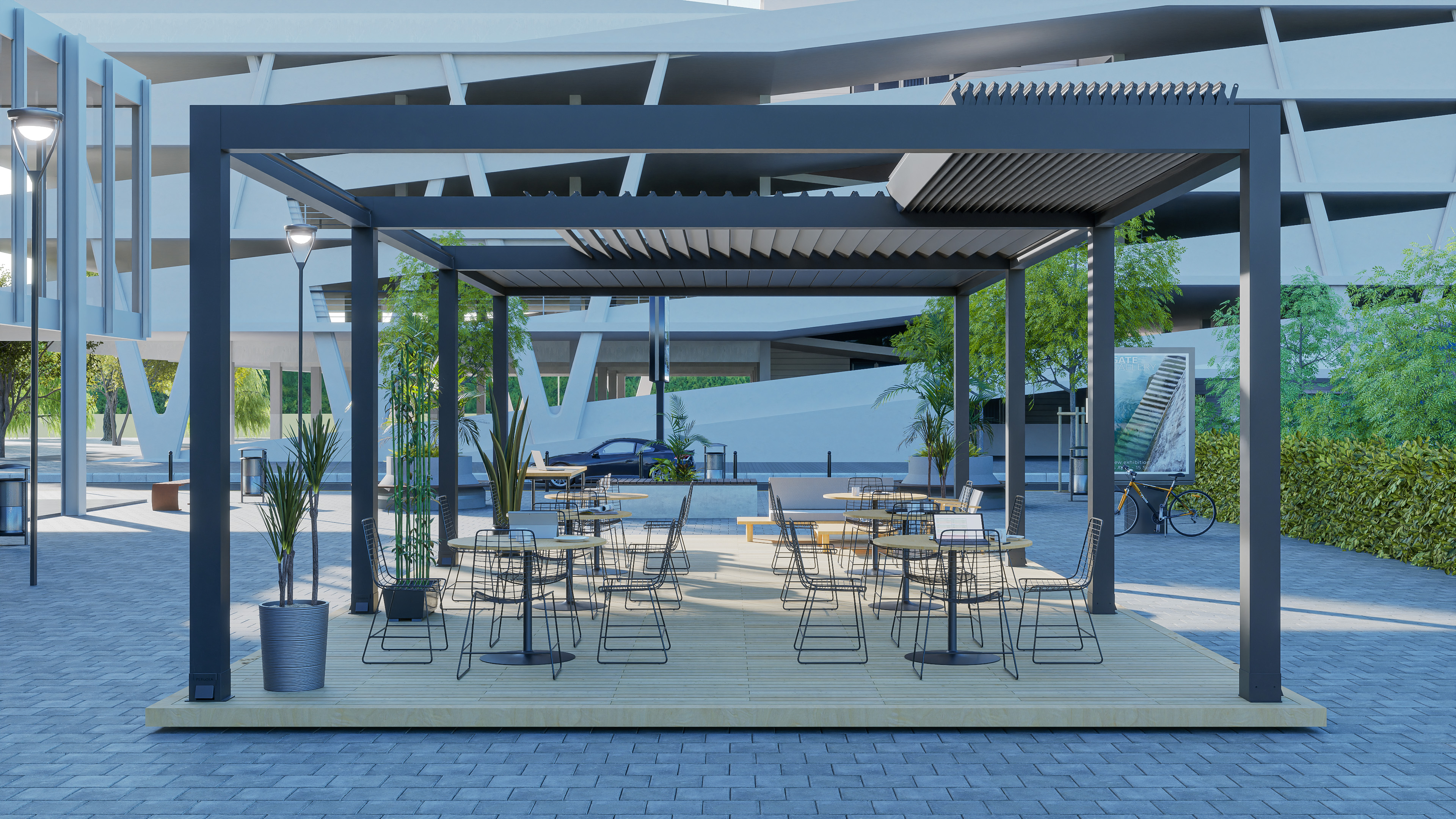

Bioclimatic Pergola with Retractable Aluminum Panels
SkyMax Retractable Bioclimatic Pergola uses automatic smart panels that allow you to adjust the shading of your outdoor spaces.
The panels provide protection from direct sunlight, with the option of being partially or fully opened. The synchronized aluminum panels can retract up to 80% giving you clear sky views.
The simultaneous movement of the panels allows a smooth roof opening and can be paused at any point to allow the desired amount of ventilation. SkyMax regulates the natural ambient temperature when opened and creates an enclosed water-resistant environment when fully closed.
It creates a comfortable outdoor space you can enjoy during sunny or rainy days. It withstands great snow loads and strong winds. Its special design allows ease of assembly and ensures a fast installation. The use of aluminum and stainless steel makes it a lasting pergola you can enjoy using for many years.
information
BRAND
Pergola
PRODUCT TYPE
Pergola
PRODUCTION
Made in Turkey
COLLECTION
I-Zip
BLADE DIMENSIONS
299 mm x 56 mm.
MAX BLADE LENGTH
4000 Mm
FINISHES
In accordance with specifications for Quailcoat and Qualideco. RAL Colour or wood effect finishes are available. 10 years of warranty for finishes.
RAINWATER DRAINAGE
Water is transferred from the grooves on the aluminum lamel profiles to the edge profiles, water is transferred to the feet thereafter.
WIND LOAD
Standard EN 13659 class 6 (aprox. 112 km/h). No breakage was detected.
SNOW LOAD
Standard EN 1999 EUROCODE 9 (aprox. 100 kg/m2) aluminum structures project.
RAIN LOAD
Standard EN 12056 (0.03 l/s max.) constant heavy rain aprox. 108 l.m2/h.
BLADES CAN RETRACT UP TO
80%.
MATERIAL
6063 T5 Aluminum stainless steel
SAFETY
Hidden drains and electrical lines.
CAPABILITY
Capability Of Electrical Motion And Remote Control.
COLORING
Colour Of Your Choice According To The RAL Color Stanadard
BOTTOM PROFILE
36x58 mm
WIND RESISTANCE UP TO
135 km/h.
MOTOR AND AUTOMATION
Pergolas are there to give us comfort and ease of mind. They provide freedom from the factors that can undermine the experience; therefore, we make sure our shading structures do what they are built to do when they are supposed to. Our pergolas can be equipped with sensors of light, wind and rain to change the settings according to the environmental factors automatically, we also have remote control systems to make your structure work at your will. Internationally renowned Somfy motors from France are used to operate all of our products. Guaranteed for 5 years and using RTS and IO technology, the motors can be operated at the simple touch of a button.
PROTECTION
COLORS
STRUCTURE COLOR AND FINISH
We provide an extension to your property and always make sure it looks as if it was always planned to be there. Our Pergolas utilize aluminium all over the structure to ensure lightness and strength at an optimum; however , you can cover the body and the columns with one of our many colours and finish choices as you can see below.
