Kalea A4 Mille. The Versatile Goods Lift.
The Kalea A4 Mille is a very versatile and powerful lift. Given its generous dimensions and high load capacity, this platform lift is just as suitable for warehouses and commercial properties, as for public buildings, clinics, and care homes.
information
BRAND
Kalea Lifts
PRODUCT TYPE
Lift
CUT OUT SIZE - W X D MM
- 1595 x 2335 mm
- 1895 x 2135 mm
- 1895 x 2635 mm
PRODUCTION
Made in Sweden
COLLECTION
Kalea
PLATFORM SIZE - W X D MM
- 1105 x 2180 mm
- 1405 x 1980 mm
- 1405 x 2480 mm
SPEED
Max 0.15 m/s
INSTALLATION
Indoor
KALEA A4 MILLE. THE VERSATILE GOODS LIFT.
The Kalea A4 Mille is a very versatile and powerful lift. Given its generous dimensions and high load capacity, this platform lift is just as suitable for warehouses and commercial properties, as for public buildings, clinics, and care homes.
MOTOR POWER
4.0 kW
RATED LOAD
1000 kg
MINIMAL STRUCTURAL IMPACT
The Kalea A4 Mille is a machine room less lift, with a reduced top height and lift pit, that requires very few building alterations.
DRIVE SYSTEM
Screw and nut
LIFT CONTROLS
Automatic drive (one-touch) on landings, hold-to-run on platform
INSTALLATION IN 4-5 DAYS
Our ready-made, low-impact lift concept makes lift installation is fast and easy. For a 2 stop lift, a working week is all you need.
RATED LOAD OF 1000 KG
Thanks to its high load capacity and large platform, the Kalea A4 Mille is perfect for transportation of goods, or groups of 8-10 people.
MAX TRAVEL
13 m
DOOR CONFIGURATION
Single entry/open-through access/adjacent access
MAX NUMBER OF STOPS
6
DIRECTIVES AND STANDARDS
MD 2006/42/EC, applicable parts of EN 81-41
MACHINE ROOM
Integrated (MRL)
LIFT PIT
100 mm (120 mm if the floor is fitted with wood laminate ortiles)
ALL-INCLUSIVE LIFT CONCEPT
The platform lift is delivered in prefabricated elements as an all-inclusive concept. Even a ready-made lift shaft is included!
DOWNLOADS
MIN HEADROOM
Top floor 2350 mm (full-height door)
POWER SUPPLY
3 × 400 VAC/3 × 230 VAC/, 50 Hz, 16 A, 5 × 6,0 mm²
LIFT SIZES & FLOOR CUT OUT WHAT IS A CUT OUT SIZE?
The cut out size refers to the minimal dimensions of the pit and the opening through the floors (width x depth, mm) required to install the lift.
DETAIL
LOW TOP HEIGHT
With standard doors, the Kalea A4 Mille has a top height of only 2300 mm, a top height which will easily fit under almost any ceiling.
ONLY 130 MM LIFT PIT
A lift pit of 130 mm is all you need. It is also possible to install the lift directly on the floor and create an access ramp for it.
MACHINE ROOM LESS LIFT
The screw-driven machinery is compact enough to fit inside the lift shaft, there is no need for a separate machine room.

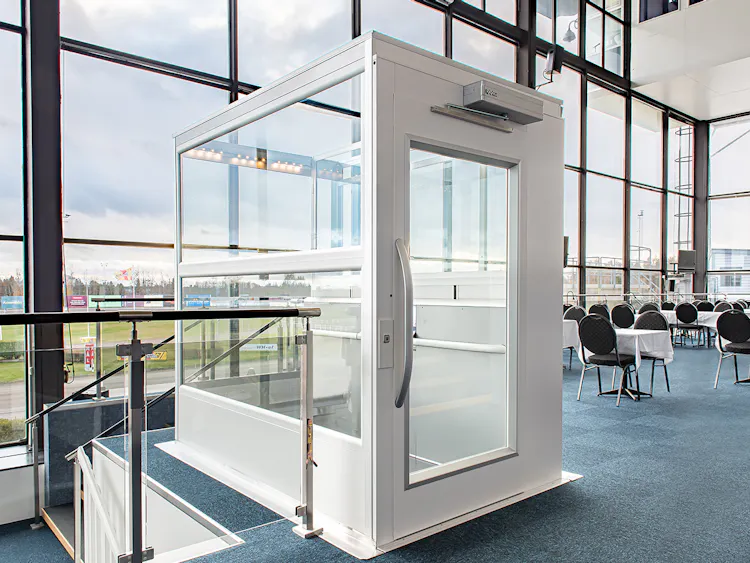

ELEGANT LIFT DESIGN
This is a goods lift with a neutral and sleek look that can be adapted to blend in with most architectural and decorative styles. Choose between several door models, a lift shaft of glass or of steel, or go for the discreet and elegant solution of encasing the lift in the wall.

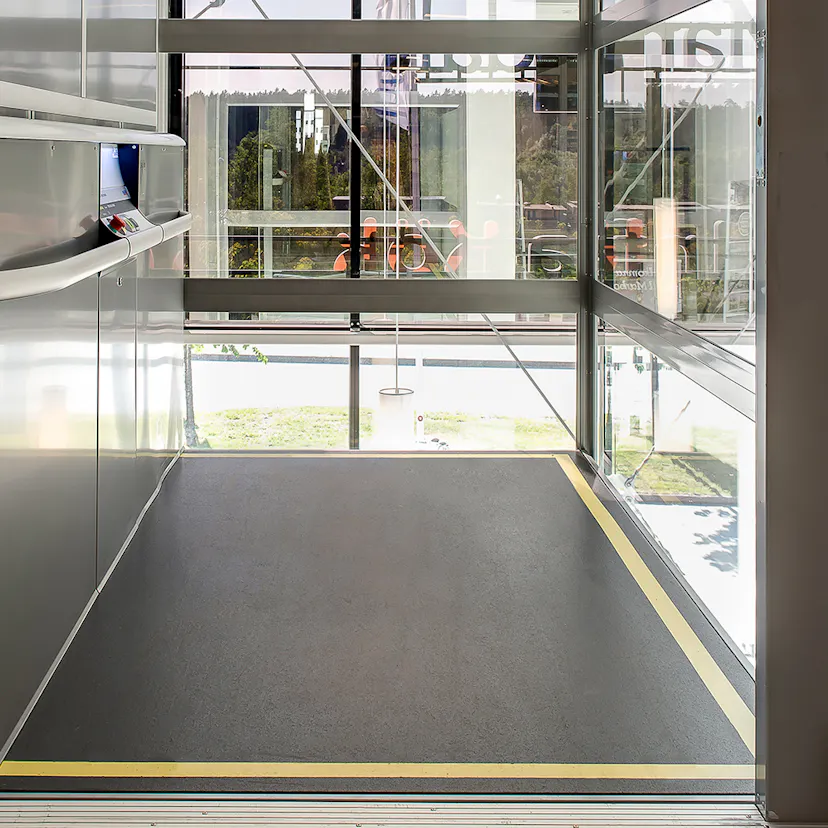

KALEA A4 MILLE PLATFORM DESIGN
The platform controls are conceived to be ergonomic and user-friendly and the control panel includes floor buttons, an alarm button and an emergency stop button. In addition, the platform comes with several safety features, such as emergency phone, safety edges, and battery emergency lowering as standard.
To comply with European Standards, the floor buttons need to be operated by hold-to-run (constant pressure on the button), while the call buttons on the doors are operated with automatic drive (one-touch). For countries outside of Europe, other standards may apply. Please contact us, or your closest Kalea dealer, if you need more information.
MULTIPLE APPLICATIONS
The Kalea A4 Mille is a very versatile lift. Thanks to the fact that this large and powerful lift is approved for transport of cargo and passengers, it can be used for many different things, in a great variety of buildings.
PLATFORM LIFTS EXPLAINED
The Kalea A4 Mille is a vertical platform lift. A vertical platform lift does not have a lift cabin. Instead you travel with an open platform inside an enclosed lift shaft.
Also, platform lifts do not travel as fast as conventional lifts, but they offer other great advantages, such as short delivery time, speedy installation and space-efficiency.
