KALEA C1 FUTURA CABIN LIFTS
KALEA C1 FUTURA CABIN LIFTS
Kalea C1 Futura. A Lift with Comfort & Style.
Are you looking for a comfortable and cost-efficient lift solution, which is fast and easy to build? The Kalea C1 Futura is the world’s only screw-driven cabin lift with automatic drive and telescopic sliding doors. Thanks to our smart, ready-made concept, your cabin lift can be delivered and installed much faster than conventional lift solutions.
information
BRAND
Kalea Lifts
PRODUCT TYPE
Lift
POWER SUPPLY`
3 × 400 VAC/3 × 230 VAC, 50/60 Hz, 16 A, 5 × 2,5 mm² or 1 × 230 VAC 50/60 Hz, 32 A 5 × 2,5 mm²
PRODUCTION
Sweden
INSTALLATION
Indoor
LOW BUILDING COSTS
Thanks to its compact, ready-made concept, the Kalea C1 Futura has minimal structural impact, which also reduces your building costs.
SPEED
Max 0.15 m/s
RATED LOAD
300/375/450/525/630 kg
IN NEED FOR DESIGN IDEAS?
If are looking for some nice design ideas, you should check out this magnificient installation of a Kalea C1 Futura in an old loft apartment! This is the perfect example of how beautiful lift design can enhance the beauty of the architectural features around it.
MIN HEADROOM
Top floor 2500 mm
MOTOR POWER
4.0 kW for 3 x 400 VAC or 3.7 kW with 3 × 320/1 × 230 VAC
DRIVE SYSTEM
Screw and nut
LIFT CONTROLS
Automatic drive (one-touch)
LIFT PIT OF ONLY 10 CM
A lift pit of 10 cm is all you need. It is also possible to install the lift directly on the floor and create an access ramp for it.
MACHINE ROOM LESS LIFT
The screw-driven machinery is compact enough to fit inside the lift shaft, there is no need for a separate machine room.
REDUCED TOP HEIGHT
The top height of the Kalea C1 Futura is only 2450 mm on the top floor, which is low enough to fit under almost any ceiling height.
MAX TRAVEL
15 m
DOOR CONFIGURATION
Single access/open-through access
MAX NUMBER OF STOPS
6
DIRECTIVES AND STANDARDS
MD 2006/42/EC, applicable parts of EN 81-41, EN 81-20 and EN 81-70
SPACE-SAVING DESIGN
The integrated machine room, low top height and reduced lift pit, make it easy to fit your cabin lift, even when the space is very limited.
FAST & EASY INSTALLATION
Because of the ready-made and space-efficient construction, it is possible to install a 2 stop cabin lift in less than one working week.
ALL-INCLUSIVE LIFT CONCEPT
The lift is delivered as an all-inclusive, ready-made concept with everything you need to install it. The ready-made elements are fast and easy to assemble.
MACHINE ROOM
Integrated (MRL)
LIFT PIT
100 mm (120 mm if the floor is fitted with wood laminate or tiles)
DOWNLOADS
↓ Kalea Colour Guide
↓ Kalea Main Brochure
↓ Kalea Technical Brochure
↓ Kalea C1 Futura Brochure
↓ C1 Futura 1100×1200 Glass Shaft Doors A
↓ C1 Futura 1100×1200 Glass Shaft Doors AC
↓ C1 Futura 1100×1200 Shaftless Doors A
↓ C1 Futura 1100×1200 Shaftless Doors AC
↓ C1 Futura 1100×1400 Shaftless Doors A
↓ C1 Futura 1100×1400 Shaftless Doors AC
↓ C1 Futura 1100×1400 Steel Shaft Doors A
↓ C1 Futura 1100×1400 Steel Shaft Doors AC
↓ C1 Futura 1100×1700 Shaftless Doors A
↓ C1 Futura 1100×1700 Shaftless Doors AC
COLOURS
COLOURS
LIFT SIZES & FLOOR CUT OUT
WHAT IS A CUT OUT SIZE?
CUT OUT SIZE 1
For cabin lifts designed to be installed with a ready-made shaft, the cut out size indicates the minimal dimensions of the lift pit (width x depth, mm) and the minimal dimensions of the opening between floors (width x depth, mm)
CUT OUT SIZE 2
For cabin lifts designed to be placed inside a masonry shaft, the cut out size indicates the minimal dimensions of the lift pit (width x depth, mm) and the minimal internal dimensions of the masonry shaft (width x depth, mm).
LIFT WITH READY-MADE SHAFT
| CABIN SIZE - W X D MM | CUT OUT SIZE - W X D MM - SINGLE ENTRY | CUT OUT SIZE - W X D MM - OPEN-THROUGH |
|---|---|---|
| 900 x 950 mm | 1410 x 1310 mm | 1410 x 1450 mm |
| 900 x1200 mm | 1410 x 1560 mm | 1410 x 1700 mm |
| 900 x 1400 mm | 1410 x 1740 mm | 1410 x 1900 mm |
| 1100 x 1200 mm | 1610 x 1560 mm | 1610 x 1700 mm |
| 1100 x 1400 mm | 1610 x 1740 mm | 1610 x 1900 mm |
| 1100 x 1700 mm | Not available | Not available |
LIFT FOR MASONRY SHAFT
| CABIN SIZE - W X D MM | CUT OUT SIZE - W X D MM - SINGLE ENTRY | CUT OUT SIZE - W X D MM - OPEN-THROUGH |
|---|---|---|
| 900 x 950 mm | 1350 x 1240 mm | 1350 x 1410 mm |
| 900 x 1200 mm | 1350 x 1490 mm | 1350 x 1660 mm |
| 900 x1400 mm | 1350 x 1690 mm | 1350 x 1860 mm |
| 1100 x 1200 mm | 1550 x 1490 mm | 1550 x 1660 mm |
| 1100 x 1400 mm | 1550 x 1690 mm | 1550 x 1860 mm |
| 1100 x 1700 mm | 1550 x 1990 mm | 1550 x 2160 mm |
DETAIL
CABIN INTERIOR
To offer you the highest level of comfort, the Kalea C1 Futura is operated with automatic drive from the landings and inside the cabin. Whether you go for classic push buttons, or touchscreen, does not matter. All controls of the lift are always with automatic, one-touch drive.
NO SPACE IS TOO SMALL FOR A LIFT
You may not think you have enough space for a lift, but we think that you do! Because the Kalea C1 Futura has a very compact construction and is available with a space-saving, ready-made shaft in glass or steel panels, it takes up much less room than a conventional passenger lift. Do you need to go smaller? For limited and narrow spaces, our platform lifts, offer you a great alternative. In fact, the smallest size of the Kalea Kosmos fits inside just 1m2.
EI60 FIRE-RATED DOORS
For places where a high level of safety is praticularly important, EI60 fire-rated sliding doors are available as an option. To preserve the integrity of the fire-rated doors, they need to be combined with a masonry or concrete lift shaft with an equivalent or higher fire rating.
A SUSTAINABLE LIFT SOLUTION
Every day, we strive to improve the sustainability of our products, not only for this generation, but for the next. Cabin lift Kalea C1 Futura is listed in the database for building products that can be used in Nordic Swan Ecolabelled Buildings.
LIFT SHAFT OPTIONS

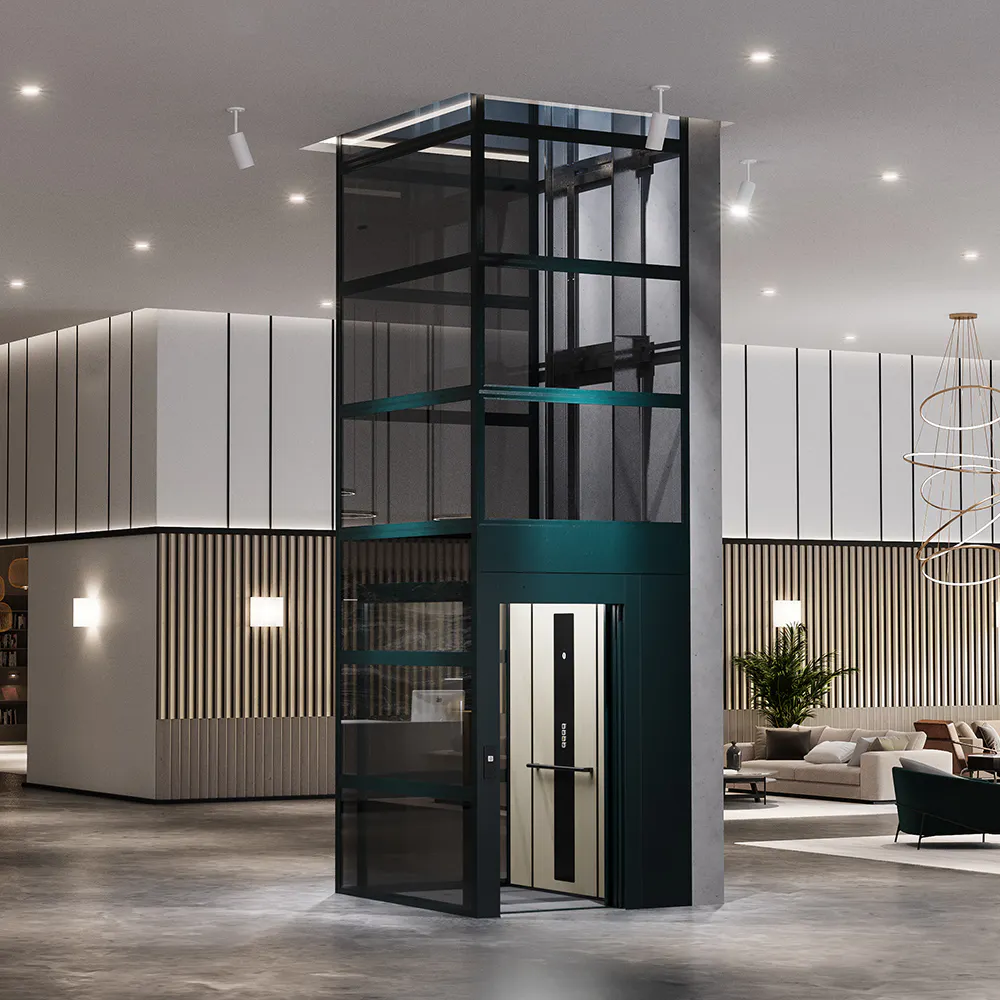

To blend in seamlessly with any interior, the Kalea C1 Futura is available in two designs: One design without shaft, intended for installation inside a masonry shaft, and another design delivered with a space-saving, ready-made shaft in glass or steel panels.
ACCESSIBILITY OPTIONS
To comply with the EN 81-71 Accessibility Standard, the Kalea C1 Futura can be equipped with a horizontal control panel, mirrors and extra large call buttons (50×50 mm). In addition, the lift is available with double horizontal control panels.
BUILD YOUR LIFT
Would you like create your unique lift design? Our Lift Configurator enables you to try out different designs and colour combinations and actually build your lift. Watch the video find out how easy it is!
WHAT IS A CABIN LIFT?
A cabin lift can be described as a hybrid solution between a vertical platform lift and a conventional passenger lift. Instead of travelling on an open platform inside a lift shaft, you travel in a fully enclosed cabin.
Cabin lifts do not travel as fast as conventional passenger lifts, but they offer you other great advantages, such as short delivery time, fast installation and space-efficiency. Watch the video to find out what is like to travel with the Kalea C1 Futura!
