Stabilit Suisse Macrolux® Rooflite® Sheets Trapez 76/18
MACROLUX® ROOFLITE® SHEETS TRAPEZ 76/18
MACROLUX® ROOFLITE® SHEETS TRAPEZ 76/18
Macrolux® Rooflite® sheets come in two options - trapezoidal or sinusoidal - and are designed to cater to various different types of applications in the building, agricultural and industrial field.

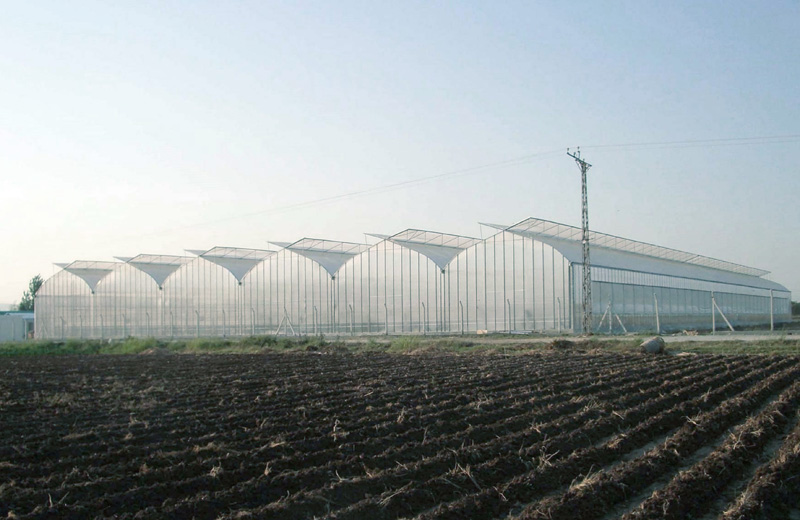

The corrugated sheets are particularly suitable for agricultural use for roofing greenhouses where light transmission is a crucial requirement.
Available in different shapes and thicknesses, they match perfectly with a wide range of sheet metal profiles from leading manufacturers and/or with sandwich panels.
INFORMATION
PRODUCT TYPE
Sheets
PRODUCTION
Made in
BRAND
Stabilit Suisse
FIRE CERTIFICATION
B s1 d0
BENEFETIS
- Lightweight
- UV protection
- Good impact resistance
- Good fire performance
- Excellent light transmission
- Wide range of shape options
- Guaranteed and certified quality
PITCH
76
LIGHT TRANSMISSION
89%/75%
COEFFICIENT OF THERMAL EXPANSION
0.065 mm/m °C
SERVICE TEMP. (CONTINUOUS USE)
-40° +120° °C
NOMINAL WIDTH
- 660
- 807
- 1040
- 1265
CODE
– E312
- E354
- E334
- E313
COVER
- 608
- 760
- 988
- 1216
LENGTH
Max suggested Length 6,0 m
PE SPACER
Available in 1000 mm bars
THICKNESS
- 0.8
- 0.9
- 1.0
- 1.1
EXTRA UV PROTECTION
Sheets with increased, extra strong protection from UV rays. Ideal for use in applications marked by particularly harsh environmental conditions.
DOWNLOAD
↓ Technical Data
MINIMUM BENDING RADIUS
4000 mm
UV PROTECTION ON ONE SIDE
Sheets protected from the effects of UV rays on one side. This protection effectively allows the sheets to retain their original transparency and mechanical impact resistance properties for the duration of their service life
UV PROTECTION ON BOTH SIDES
Sheets protected from the effects of UV rays on both sides. Particularly suitable for applications where they may be exposed to direct and/or indirect solar radiation on both sides. This treatment also eliminates installation errors, while cutting is optimized since the sheeting is protected whichever side faces up.
UV PROTECTION
Yes
MINIMUM SLOPE FOR INSTALLATION
5
TECHNICAL DRAWING
