Abstracta Scala Acoustic Lighting Ceiling
SCALA ACOUSTIC LIGHTING Ceiling
SCALA ACOUSTIC LIGHTING CEILING
Designed By Anya Sebton
Scala is a playful paraphrase on corrugated iron that simultaneously employs the functionality of the shape.
”The inspiration comes from the many houses in Iceland, where not only the roofs, but the facades too, are covered by corrugated iron. It gave birth to the idea of bringing it into the space”, explains award-winning designer Anya Sebton.
DESIGNER
ANYA SEBTON
Anya Sebton is an award-winning designer and interior designer with commissions from leading Scandinavian producers including Lammhults, Asplund and Abstracta.
Her works are found in airports, embassies and museums around the world. A simple graphic style and solution-oriented approach have made her a highly acclaimed designer.
With Anya Sebton, form always closely interacts with function. This is evident in her Scala screen concept, which she designed for Abstracta.
Clearly reflected in her work as an interior designer is a well-developed sense of a space’s possibilities and limitations.
Its design language is inspired by corrugated iron – a form which not only gives the screens their distinct visual identity, but which was developed primarily with soundscapes in mind, as the wave-shaped screens effectively attenuate sound waves.
INFORMATION
BRAND
Abstracta
PRODUCT TYPE
Celling Light
TYPE OF LENS
Opal
SCATTERING ANGLE
120 °
LUMINAIRE LUMINOUS FLUX
1100LM
FINISH
Ceiling suspended sound absorber in one size, with or without lighting. The sound absorbing core (”Soundfelt VF”) is made from molded polyester. ”Soundfelt VF” material is compliant with fire resistance requirement B-S1,d0 in accordance with EN13501. Covering upholstery can be added on one side, made from molded fabric. The ash wooden parts in light armature are stained in black or white.
CCT
3000K
SYSTEM POWER
14.4 W
WEIGHT
- Sound absorber with lighting : 8.5 Kg
- Sound absorber without lighting : 6.7 Kg
DIMENSIONS
- Height : 60 mm
- Width : 1600 mm
- Depth : 1207 mm
INSTALLATION
Ceiling-installation. 3 m power cord, 3 m wire. Bracket on backside is made from black painted steel.
SOUNDSCAPE
The design of the sound-absorbent Scala is not only developed for visual reasons, but primarily to contribute to a softer soundscape.
SPECIFICATIONS
Pendant sound absorber comes with or without the lighting. Choose from a wide range of upholsteries and colours. Wire kitnfor adjustable ceiling suspension is included.
LIGHTING
CRI
80
INPUT
230V
USE
Interior
DIMMER KIT
Wireless dimmer kit is available as an accessory along with article 19055100. On request, the product can be Dali-compatible.
CIRCULARITY
The product is designed to be reused and we offer 10 years spare part warranty. Use our Zero-waste recycle service when the product’s lifecycle is over, see more: www.abstracta.se.
CONTROL
Dimmable TRIAC. DALI available on request.
INCLUDED
Wire kit for adjustable suspension to the fittings on backside.
SDCM
3
DOWNLOAD
↓ Brucode
LIGHTING FINISHES

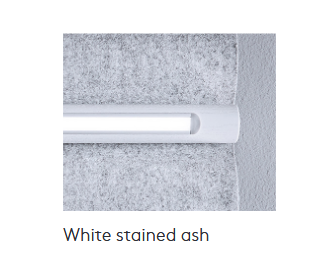

- White Stained Ash
- Black Stained Ash
