CLICK-ON SCREENS (TIMBER BEAM)
CLICK-ON SCREENS (TIMBER BEAM)
Click-on Screens have been meticulously designed to provide a clean, linear, 360-degree screening product. Unmatched elsewhere within the market, the open batten system can be crafted from either timber or aluminium as a balustrade infill or free-standing screen.
INFORMATION
BRAND
Sculptform
PRODUCT TYPE
Timber Beam
MINIMUM SPACE (25MM GAP)
If your screen is forming a barrier, the maximum gap is 120mm according to the 1170 Australian Standard.
CORROSION ZONES
The standard Click-on Screens system is suitable for use in a Class 4 corrosivity zones according to AS4312. Please contact us if you require Class 5 or higher.
DESIGNED FOR BARRIER STRENGTH
-Click-on Screens are excellent as balustrade infills, fulfilling the need to make barrier systems beautiful. -The detailed design and strong engineering allows for large batten spans between fixings which can also be invisible for a 360-degree clean, unhindered design. -They’ve been engineered to meet high load requirements and comply with C3 and C5 balustrade infill ratings according to AS1170.1.
COLLECTION
Click-on Screens
BATTEN SIZE
30x60mm
CLIP TYPE
Back Mount
SPACING (GAP)
50 mm
MOUNTING TRACK TYPE
45x25mm Split Track

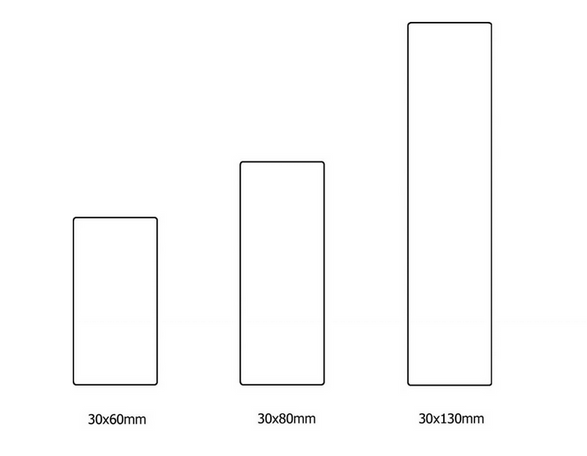

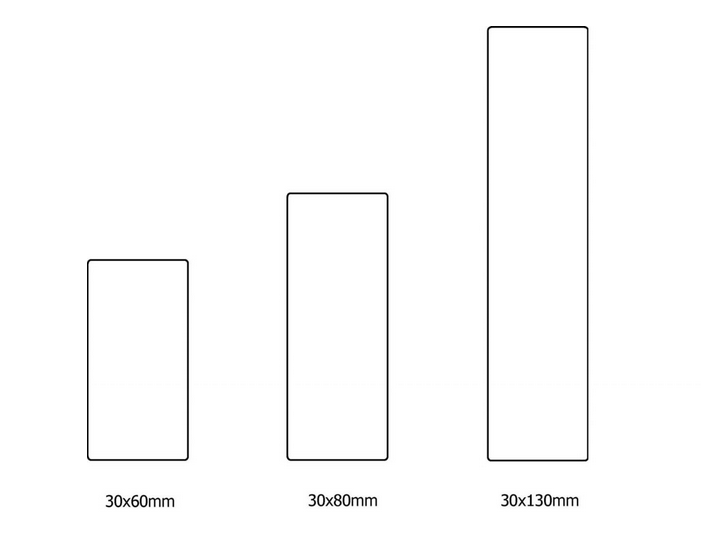

PROFILES AND SIZES
Click-on Screens are available in the following timber sizes and profiles.
HOW IT WORKS
-Click-on Screens consist of mounting tracks, clips and timber or aluminium battens. The clip base comes factory fitted to the mounting track at the specified spacing. -The Click-on connection features a button fixed to the back or ends of the batten, which clicks securely into engagement in the clip base. -Site variation and building and thermal movement are factored into the design, with the top bracket fixed into place and lower brackets able to slide. The rail design makes for easy fixing to any substrate while giving the installer up to 10mm of in/out adjustment.
MAX BATTEN SPANS FOR INTERIOR APPLICATIONS
Between clips or clip to the mid support rod.
| TIMBER | MAXIMUM SPAN |
|---|---|
| Spotted Gum (Interior and Exterior) | 1.5m |
| Australian Ash (Interior only) | 3m |
| American Oak (Interior only) | 1.5m |
SPACING OPTIONS
Choosing a batten spacing (Gap between battens) will depend on a your screen application and level of privacy you are trying to achieve, or any fixtures you might be working around. Below are some suggestions for each batten size based on the proportions of nature.
| BATTEN PROFILE | SPACING OPTIONS |
|---|---|
| 30x60mm | 30mm, 50mm, 80mm |
| 30x80mm | 50mm, 80mm, 100mm |
| 30x130mm | 80mm, 100mm, 130mm |
DETAIL

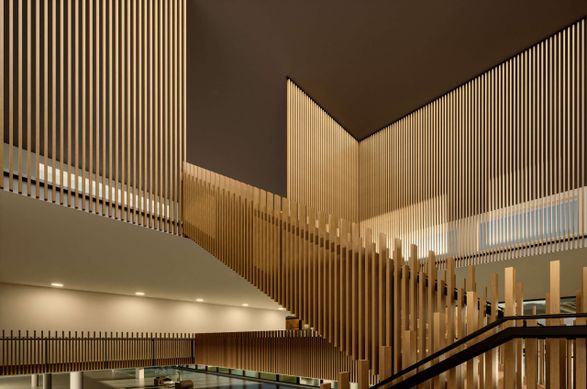

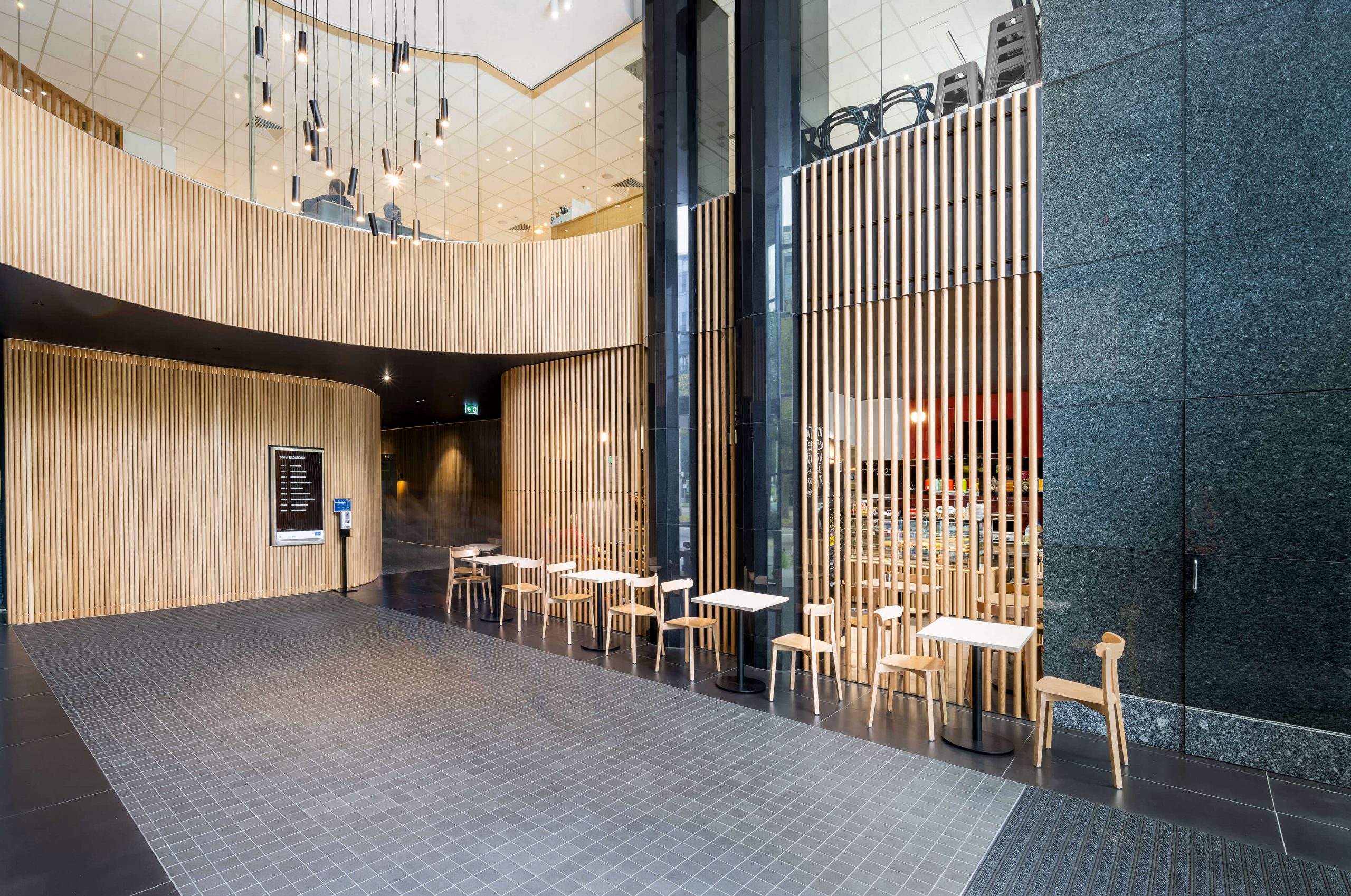

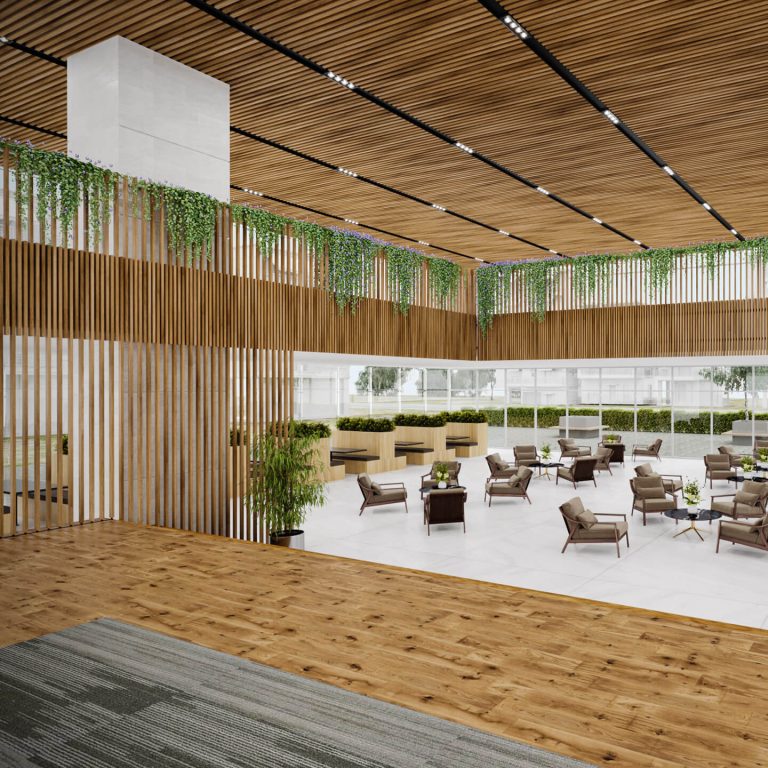

DIVERSE SCREENING APPLICATIONS
Spatial architecture is easily achieved with Click-on Screens. Their flexible design and strong joins enable you to design impressive multi-functional spaces. They can be used for a range of applications such as:
- Office dividers
- Balustrade infills
- Staircase barriers
- Facade screens
- Free standing screens
FREE-STANDING SCREEN CAPABILITIES
Create a bespoke timber screen with our customisable system requiring minimal fixings to create stunning free-standing screens with no visual disturbance.
Our wood finish or anodised aluminium is ideal for applications where the specified screen size is not possible with timber or where Group 1 is needed. Aluminium battens allow greater lengths and spans between fixings, are non-combustible and require no maintenance.
MOUNTING OPTIONS
- Back Mounted Configuration
- End Mounted Configuration
- Combination Back/End
MOUNTING TRACK TYPES AND SUBSTRATE FIXINGS
SPLIT TRACK - 45X25MM
Used in straight applications for both back mount and end mount. Designed to span up to 1200mm between balustrade posts. Track has pull out adjustment from 25-35mm, to allow onsite packing.
SLIM TRACK - 45X5MM
Default end mount track, designed to be slim to the floor and ceiling. Used for back mount curves down to a 600mm Radius. Fixing of this track must be through the centre of the clip casting.
DIRECT FIX
Where no track is desired for both back mount and end mount. Complex site specific spacing. Sculptform does not take responsibility for the clip to substrate connection. Screw not supplied by Sculptform. Suitable fixing needs to be considered by the installer. M5 or 10g countersunk screw is most suitable.
REMOVABILITY
The removal tool has two prongs that when slid into the clip connection, disengage the spring and release the batten.
MID SUPPORT THREADED ROD
For applications requiring a large distance between clips, a threaded rod and spacer system can be used as an extra fixing point. The rod runs through pre-drilled holes and uses spacer sleeves to help prevent movement and keep the battens straight. This extra fixing is provided by Sculptform and included in all pricing for screens.
CLIP TYPES
END MOUNT FIXED
BACK MOUNT FIXED
Back when using the Back Mount Method a 20mm clear gap is required above or below the batten to enable installation and removal of the battens.
END MOUNT FLOAT
The End Mount floating clip can take up to +- 25mm of Building movement if installed with a 25mm gap under the batten.
BACK MOUNT FLOAT
Back Mount Floating clip is only designed to take up to +- 5mm for installation and thermal movement. Not suitable for building movement. All mounting tracks to be fixed to a continuous frame that eliminates building movement. If your screen is a slab to slab application, or building movement is expected, refer to the End Mount floating clip.
TYPICAL CONSTRUCTION DETAILS
FREE STANDING SCREEN
BALUSTRADE INFILL
STAIRCASE SCREEN
SPECIES AND COATINGS
SPECIES AND COATINGS
Colours are reproduced as accurately as possible, we recommend that you request product samples before final selection. Whilst our products are produced as consistently as possible, each species has their own natural variations of colour, features and characteristics. Product samples may or may not fully reflect the colour variation that will occur on the project.
SPOTTED GUM
AMERICAN OAK
GUM AUSTRALIAN ASH
