COOL SHOWER
COOL SHOWER
Referencia: 90425900TLC
Shower thermostatic with telescopic column.
INFORMATION
BRAND
GRB
PRODUCT TYPE
Shower
PRODUCTION
Made in Spain
SAFETY BUTTON
Stop safety button at 38°C
MINIMUM PRESSURE
Without minimum pressure and without calibration

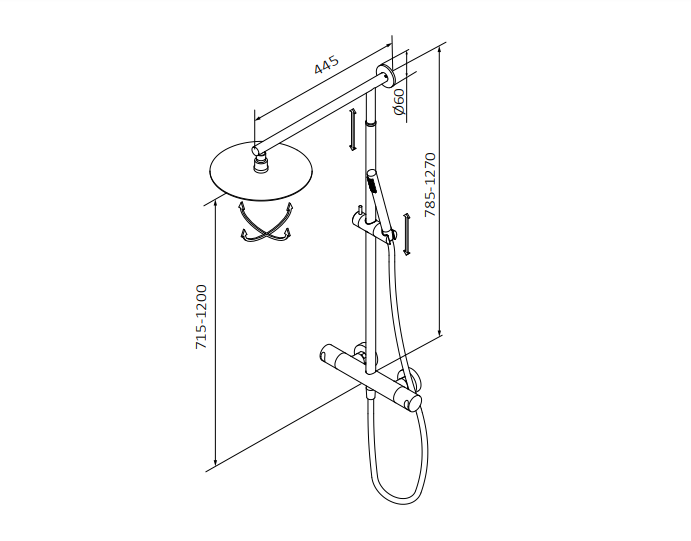

TECHNICAL DRAWING
EAN
8435200354097
ANTI-LIMING
Anti-liming and self-calibrated metallic cartridge, certificated by Aenor
COLLECTION
Cool
RECOMMENDED PRESSURE
90 425 900 TLC
CODE
90 425 900 TLC
WEIGHT
6.817 kg
PACKING DIMENSIONS
- Width : 31 Cm
- Long : 19 Cm
- High: 77 Cm
SPARE PARTS LIST
- 00090020: Cool temperature handle
- 00450090: Thermostatic cartridge + Cool handle
- 090057: Eccentric thermostatics set-platesjoints
FINISH
Chrome
MAXIMUM PRESSURE OF USE
10 bars
INLETS
(H) G 3/4”
SILVER SHOWER
Silver shower hose 170 - Length: 1700 mm - PVC Chrome
OUTLETS
G 1/2”
TUBE HAND-SHOWER
Tube hand-shower 1F / Silver shower hose 170 cm
ETECHNICAL SPECIFICATIONS
-Cartridge Thermostatic - Sensitivity and acoustincs according to the norm EN ISO 3822 -Slim showerhead Orientable 1F ø250 mm Metallic - Flow to 3 bar opening max.: 12 l/min -Tube hand-shower 1F 15x45 mm Chrome - Flow to 3 bar opening max.: 16.8 l/min
DIVERTER
In left flow handle
DOWNLOAD
↓ Data sheet
ADJUSTABLE WALL SUPPORT
Adjustable wall support column that allows you to hide any existing holes in the wall or tile
SLIM SHOWERHEAD & GRB
-Slim showerhead Orientable 1F ø250 mm -GRB Live Technology, constant temperature. Valid for all hot water supplies
DETAIL
-Adjustable support -Allows adhesive for wall fixing
-Adjustable column height optimized to the maximum (785-1270 mm)
COLORS
COLORS
-Chrome -Epoxy White -Epoxy Black -Inox -Black-Arce -Black-Nogal -EterNice Copper -EterNice Metal Black -EterNice Brushed Gold
