Metrotile Ipanel Tiles And Slate
IPANEL TILES AND SLATE
IPANEL TILES AND SLATE
A streamlined look
iPanel offers an excellent aesthetic and protective solution.
This unique profile is a wonderful complement to both bungalow and contemporary architecture. Low profile with straight lines, iPanel also performs in adverse weather conditions and on shallow sloped roof pitches.
The iPanel is an interlocking, hidden fastener panel. Pressed from corrosion resistant steel and coated in stone it is available in a wide range of colors.
INFORMATION
BRAND
Metrotile
COLLECTION
iPanel
PRODUCT TYPE
Roof Tile
LENGTH OF COVER
1230 mm
TRANSPARENT COATINGS
Both sides of the Aluzinc® alloy coated steel are coated with a transparent layer that provides protection and a uniform substrate for further coatings. This transparent coating allows identification of the aluminium-zinc substrate to be made by distributors and customers.
LENGTH OF COVER
1230 mm
WIDTH OF COVER
375 mm
MINIMUM PITCH
10° (18 %)
MAXIMUM PITCH
90°

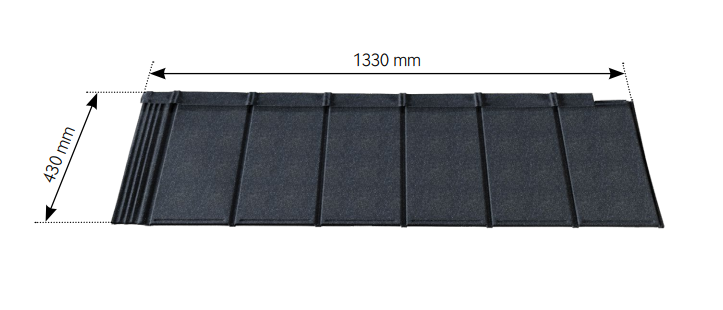

DIMENSIONS
- Overall Length : 1330 mm [± 3 mm]
- Overall Width : 430 mm [± 3 mm]
BASECOAT
A tough opaque coating based on acrylic resin. It bonds the stone chips and protects the underlying layer from water and UV radiation. It has good UV resistance and retains its flexibility although it does become harder after the first few weeks.
ROOF COVER
0.46 m²
TILES PER M²
2.17
WEIGHT/PANEL
3.29 kg
WEIGHT/AREA
7.14 kg/m²
STONE CHIP
Carefully selected granules provide excellent surface coverage and attractive natural looking and lasting colours.
OVERGLAZE
Clear 100% acrylic resin coating for granule binding and a semi-gloss finish. It helps enhance the appearance as well as increase the resistance to physical damage.
MATERIAL
- Steel
- Coated In Stone
DOWNLOADS
↓ Brochure
↓ Specification Sheet

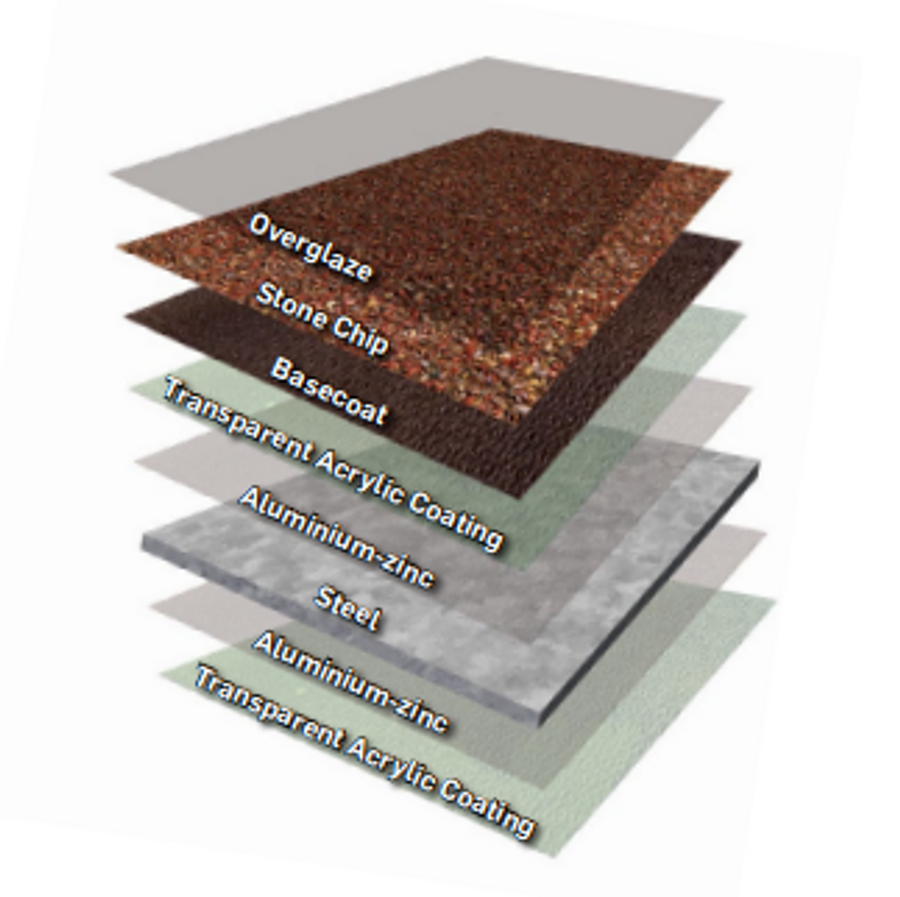

MATERIAL STRUCTURE
TEXTURED SURFACE
Stone chip granules are applied to provide an attractive textured finish which at the same time enhance resistance to UV radiation. Granules are ceramic coated with lightfast heat resistant pigments.
STEEL SPECIFICATION
The Metrotile Bond tile is made of Aluzinc® alloy coated steel. The grade of steel used is designed to allow forming without cracking or significant elastic recovery and at the same time to be rigid enough to tolerate reasonable loads without excessive deformation.
- Steel Thickness : 0.41 mm
- Steel Grade : DX52D
- Aluzinc Coating Mass : 150 g/m²
- Aluzinc® Coating Grade : AZ150
COLORS

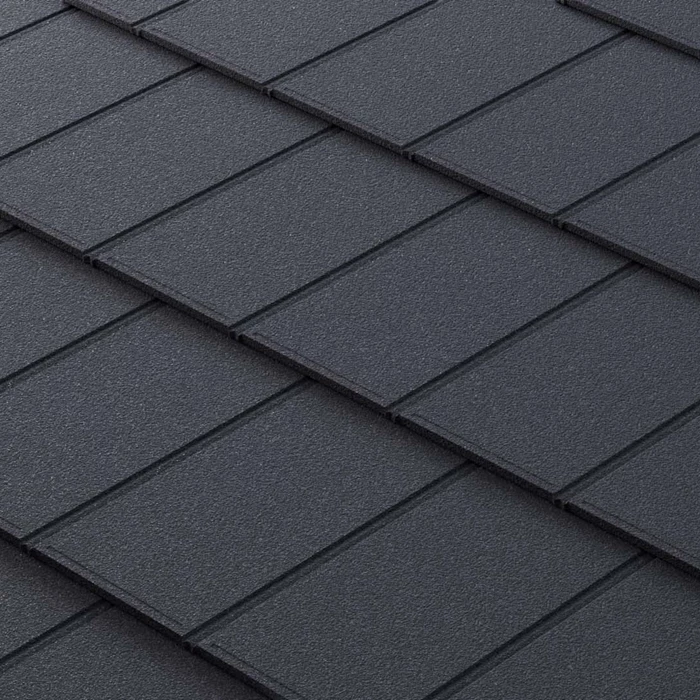

PAINT

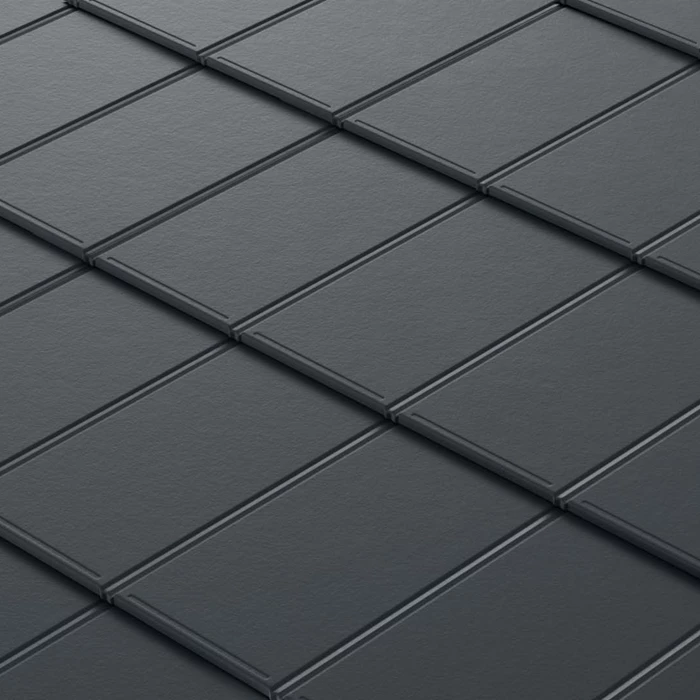

-Matt Charcoal -Matt Black

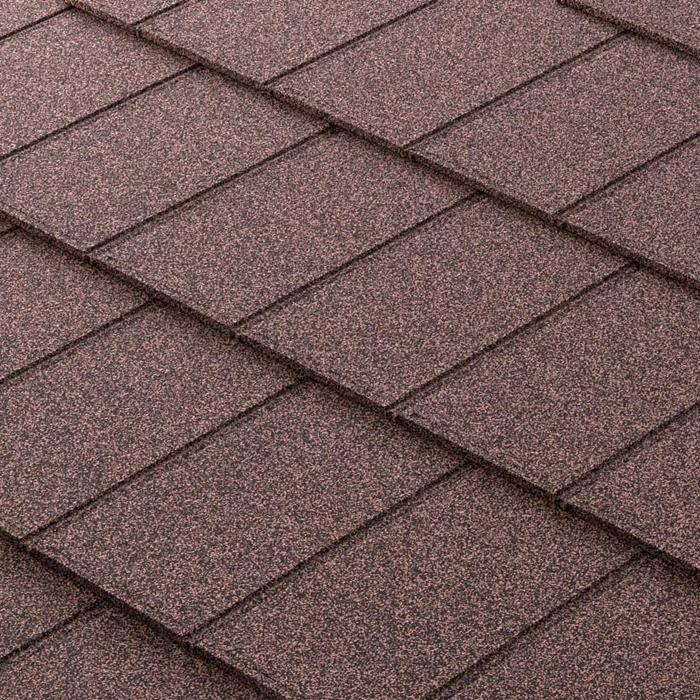

TEXTURED

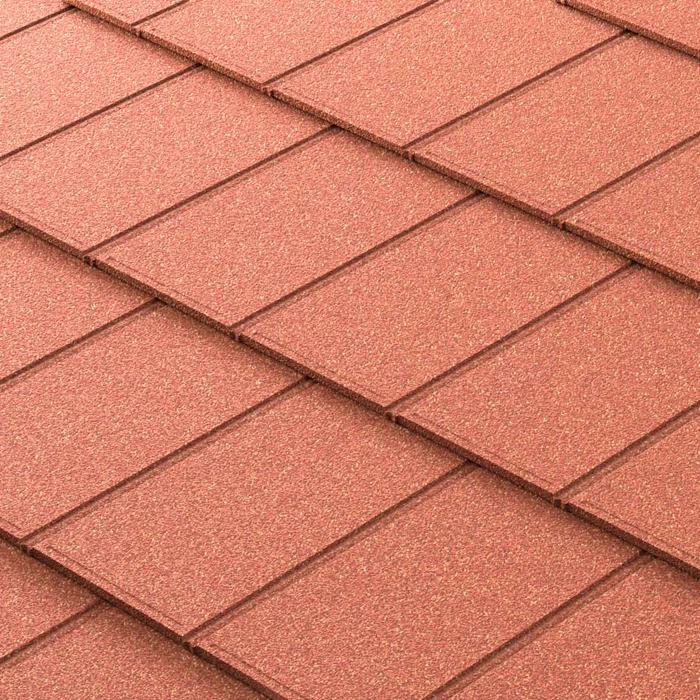

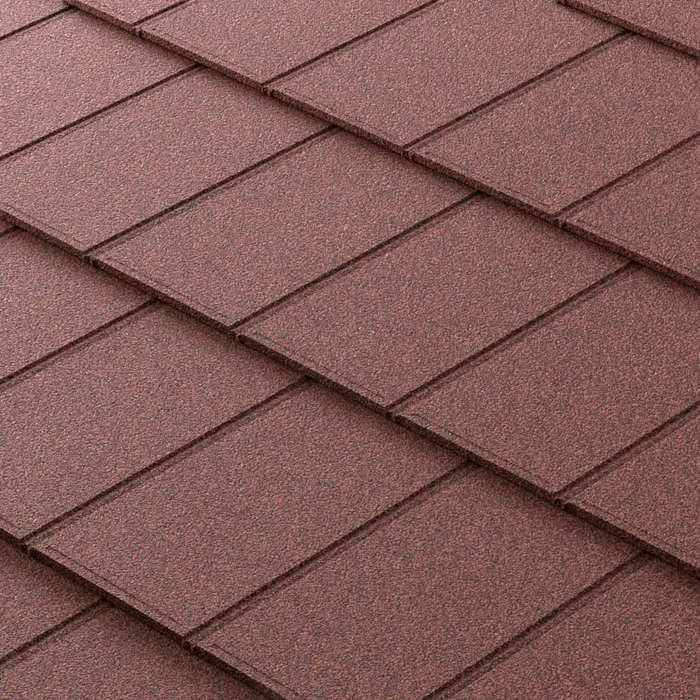

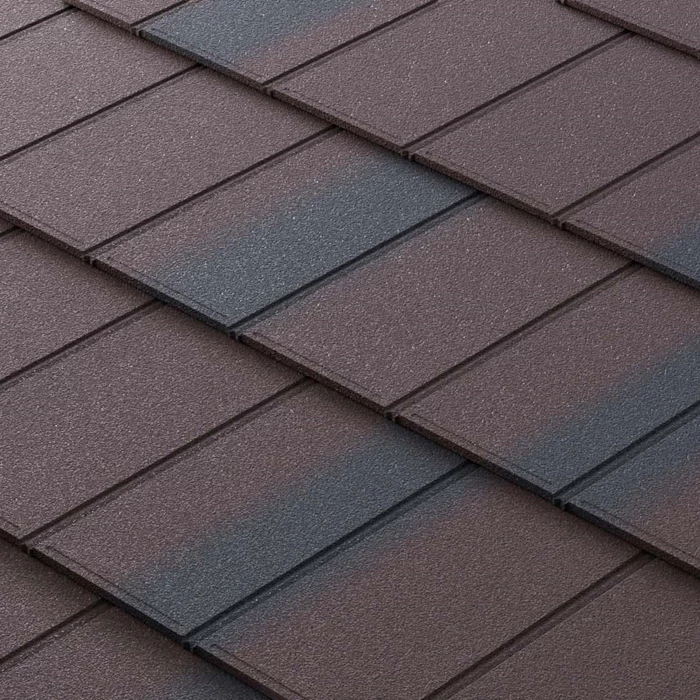

-Bister Brown - Black -Coal Black -Charcoal -Coffee -Ironbark -Scarlet -Terracotta -Shingle Brown Black
