WOODSHAKE ROOF TILE AND SLATE
WOODSHAKE ROOF TILE AND SLATE
Warm wooden roofs without the need for regular treatment

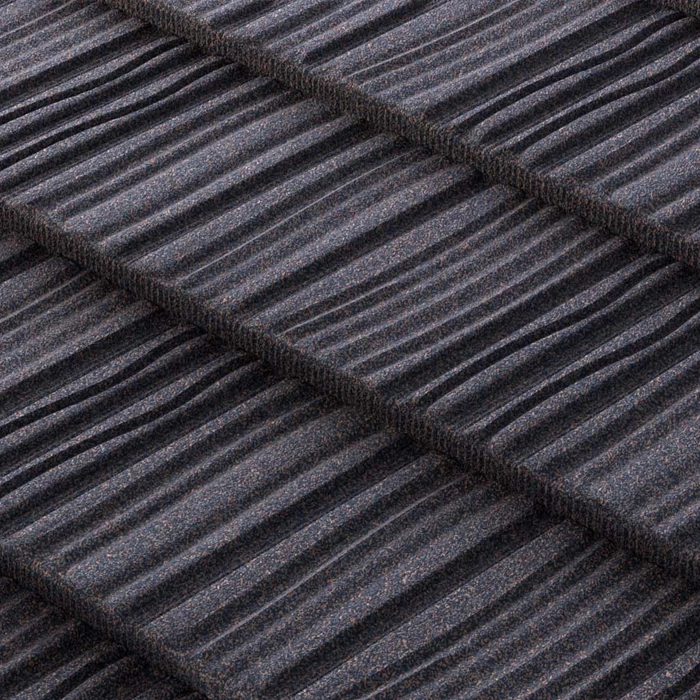

The Woodshake tiles are a perfect imitation of traditional wooden shakes.
They have a natural, rustic look with lots of character and are ideal for commercial and residential properties.
INFORMATION
PRODUCT TYPE
Roof Tile
TILES /M2
2.15
MATERIAL
- Steel Grade : DX52D
- Steel Thickness : 0.41 mm
- Aluzinc® Coating Grade : AZ150
- Aluzinc® Coating Mass : 150 g/m
DIMENSIONS
- Overall Length : 1340 mm
- Width of cover : 369 mm
- Length of cover : 1262 mm
WEIGHT /TILE
3.10 kg
MAXIMUM ROOF PITCH
90 degrees
MINIMUM ROOF PITCH
10 degrees
ROOF COVER /TILE
0.47 m2
DETAIL
The Metrotile Woodshake tile is made of Aluzinc® alloy coated steel. The grade of steel used is designed to allow forming without cracking or significant elastic recovery and at the same time to be rigid enough to tolerate reasonable loads without excessive deformation.
UP STAND
27 mm
DOWN TURN
25 mm
TRANSPARENT COATINGS
Both sides of the Aluzinc® alloy coated steel are coated with a transparent layer that provides protection and a uniform substrate for further coatings. This transparent coating allows identification of the aluminium-zinc substrate to be made by distributors and customers.
STONE CHIP
Carefully selected granules provide excellent surface coverage and attractive natural looking and lasting colours.
OVERGLAZE
Clear 100% acrylic resin coating for granule binding and a semi-gloss finish. It helps enhance the appearance as well asincrease the resistance to physical damage.
BASECOAT
A Eough opaque coating based on acrylic resin. It bonds the stone chips and protects the underlying layer from water and UV radiation. It has good UV resistance and retains its flexibility although it does become harder after the first few weeks
COLOURS
COLORS
-Brown -Umber Brown
-Coal Black -Charcoal
-Greenstone -Pepper
-Walnut
