HOOK-ON METAL PANEL CEILING SYSTEM

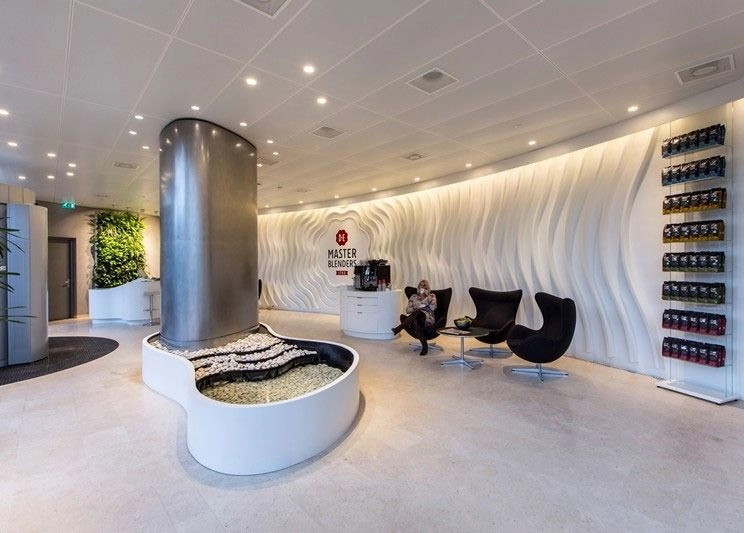

Integra Hook-on ceiling panels provide a monolithic ceiling through hidden S-hook systems. The panels are available in various sizes, perforations and colors. The Hook-on panels, like other panels, can be easily dismantled. The Hook-on system is an ideal solution for heavily visited buildings and spaces, such as offices, airports and stations.
INFORMATION
BRAND
Usg
PRODUCT TYPE
Ceiling System
HOOK-ON
Integra Hook-on ceiling panels provide a clear, monolithic ceiling through hidden S-hook systems. The panels are available in various sizes, perforations and colors. The Hook-on panels, like other panels, can be easily dismantled.
THICKNESS
0.5 to 1.0 mm.
LENGTH
200 mm to 3000 mm
WIDTH
200 mm to 1200 mm
ACOUSTICS
The grid ceilings from Integra can be supplied with a polyester fiber mat. In addition to its technical performance, the acoustic insert can also be perceived as part of the architectural design with its visible surface.
Color options : Black, White, Gray
MATERIAL
0.4 mm aluminum
COLLECTION
Quadro
OPTIONS
Panels can be fitted with folding option (hooks).
INLAY
Acoustic fleece (Soundtex), Sealed rock wool or polyester fiber mat
PERFORATION
Ø 0.7, Ø1.5, Ø1.8, Ø2,5 (standard), Ø3.0, Ø4.5, Ø6.0, Ø7.0, Ø12.0, Ø16.0, 8 x 8 square.
TECHNICAL STANDARDS
-Panels are tested according to the EN 13501-1 standard. -ceiling panels are supported by the clip-in system, which are produced according to European, American and TAIM (Technical Association of Industrial Metal Ceiling Manufacturers) standards, which are produced in our factory according to ISO 9001.2008, TSE certificates.
HOOK-ON 'CORRIDOR' SYSTEM
| PROFILE / ACCESSORIES | PRODUCT CODE | QUANTITY MODULE 1200 mm |
|---|---|---|
| Hook-on profile | AS 9 | 0,67 mt / m2 |
| Hook on length connector | AS 20 | 0,20 pcs / m2 |
| Wall connector | AS 30 | 0,70 pcs / m2 |
| Bolt nut | VDS 60 | 2,50 pcs / m2 |
HOOK-ON SYSTEM
| PROFILE / ACCESSORIES | PRODUCT CODE | QUANTITY MODULE 600X1800 mm |
|---|---|---|
| Hook-on Profile | AS 9 | 1,39 mt / m2 |
| Rostwinkel | AS 20 | 0,83 pcs / m2 |
| Length connector Rostwinkel | AS 25 | 0,18 pcs / m2 |
| Hook on length connector | AS 15 | 0,17 pcs / m2 |
| Bolt nut | VDS 60 | 2,50 pcs / m2 |
| L-clamp angle line | WL3000 | 0,70 mt / m2 |
| Clamping spring | KT-40 | 2,00 pcs / m2 |
| Threaded rod or vernier | ATJ-100 | 1,00 pcs / m2 |
COLORS
TYPES
PLANK
Integra Plank Hook-On System offers monolithic appearance due to hidden hanging system. With this system, the panels are hooked to the suspension profiles. The system is available in different sizes. The panels can be easily disassembled without tools.
CORRIDOR
Integra Hook-On Corridor Panels are designed to provide the ideal solution for hallways with different sizes and details. Because the panels are produced according to the specific size of each modular area, material waste during installation is minimized. The panels can be easily disassembled without tools.
BODY EXTERIOR
Integra Hook-On exterior system is used for the areas where there is wind load and corrosion hazard. Since the panels are attached to the profiles with rings, high resistance and rigidity are ensured, making it the right choice for external areas. Since the panels are covered with high-density paint on both sides, the resistance to corrosion is maximum.
DS
Integra Hook-On DS panels are designed to provide ideal solutions for corridors of various sizes and details. The hallway panels can be slid without loosening, making the area above the ceiling easily accessible.
