PERSPECTA C - METAL PANEL CEILING SYSTEM WITH C BANDRASTER
PERSPECTA C - METAL PANEL CEILING SYSTEM WITH C BANDRASTER
Perspekta C is a modular ceiling system with versatile options for modern architecture.
The panels can be placed parallel or perpendicular and are available in various sizes.
Their monolithic appearance fits well into modern architecture. These panels can be easily dismantled without tools, making them suitable for large spaces.
INFORMATION
SIZES
-Width : 200 mm to 1200 mm
- Length : 200 mm to 3000 mm
BRAND
Integra
PRODUCT TYPE
Metal Ceiling
THICKNESS
0.6 to 1.0 mm.
PRODUCTION
Made in Netherland
COLOR OPTIONS
- Gray
- Black
- White
MATERIAL
- Aluminum
- Galvanized Steel
- Stainless Steel
INLAY
Acoustic fleece (Soundtex), Sealed rock wool or polyester fiber mat
PERFORATION
Ø 0.7, Ø1.5, Ø1.8, Ø2,5 (standard), Ø3.0, Ø4.5, Ø6.0, Ø7.0, Ø12.0, Ø16.0, 8 x 8 square. For more information see Perforations.
ACOUSTICS
NRC: 0.60 to 0.90
For more information see Reports.
COLOR
RAL9010, RAL9016 and RAL9006
- For more information see Colors.
- if desired, panels with a wood motif can be produced.
- if desired, production is possible in all other RAL colors and NCS colors.
- if desired, special anti-bacterial paint is possible for places where hygiene is important.
MODERN ARCHITECTURE
The Perspekta ceiling system is composed of modular profiles and panels that can be parallel or perpendicular to each other. The system is available in different sizes and options. Due to their monolithic appearance, Perspekta panels can be used for modern architecture.
All Perspekta panels can be easily disassembled without tools. The Perspekta system is suitable for large spaces, such as offices and airports.
EDGES
Sharp-edged (Default)
FIRE CLASS
Fire reaction group A2-s1.d0.
TECHNICAL STANDARDS
- Panels are tested according to the EN 13501-1 standard.
- Ceiling panels are supported by the clip-in system, which are produced according to European, American and TAIM (Technical Association of Industrial Metal Ceiling Manufacturers) standards, which are produced in our factory according to ISO 9001.2008, TSE certificates.
DETAILS

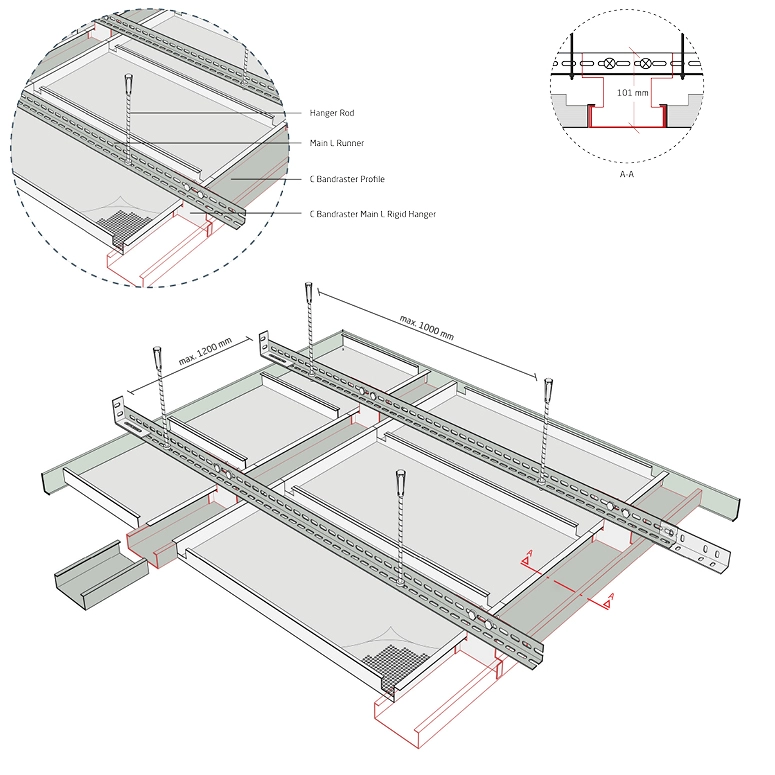

INSTALLATION SCHEME
PERSPEKTA 'C-BAND GRID' SYSTEM
| PROFILE / ACCESSORIES | PRODUCT CODE | QUANTITY MODULE (600X1.800 MM) |
|---|---|---|
| C-Bandraster profile | CBP-100-L4000 | 0.56 pcs / m2 |
| Length connector | CBP-ZL-100 | 0.21 pcs / m2 |
| Clamping spring | KT-40 | 2.00 pcs / m2 |
| L-clamp angle line | WL-3000 | 0.70 mt / m2 |
| Nonius part | CBP-100-NA | 1.00 pcs / m2 |
| Nonius upper part | NU-100 | 1.00 pcs / m2 |
TYPES

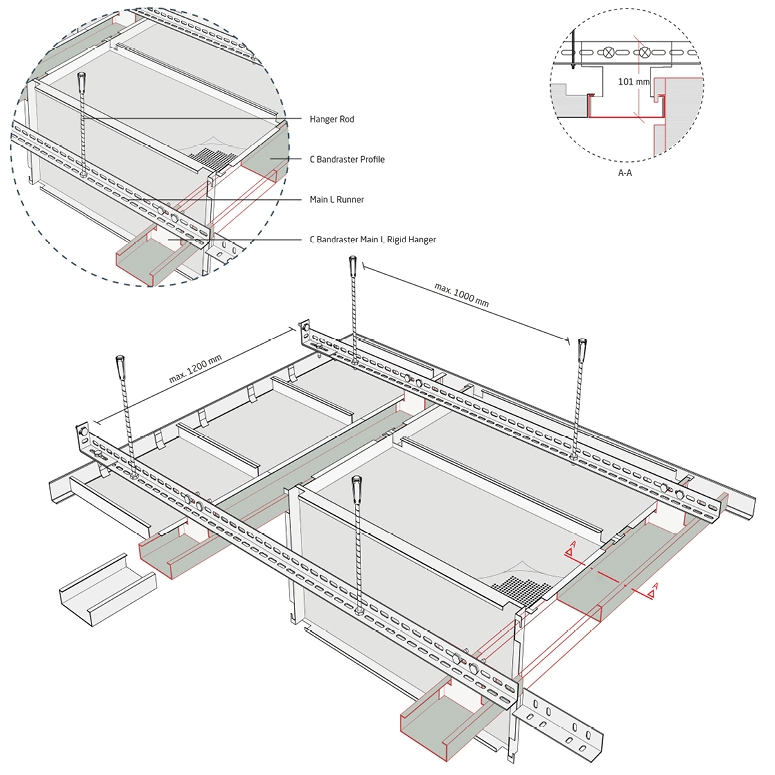

BAND GRID
Integra Perspekta C Bandraster System uses C-bandraster between the panels. In addition to aesthetics, C-bandrasters also support the adjacent panels and are part of the hanging system. The panels can be produced for a variety of architectural designs, with different material and color options. Production of bandrasters with dimensions other than those stated is possible. All Integra Plank Perspekta panels can be easily dismantled without the need for tools.

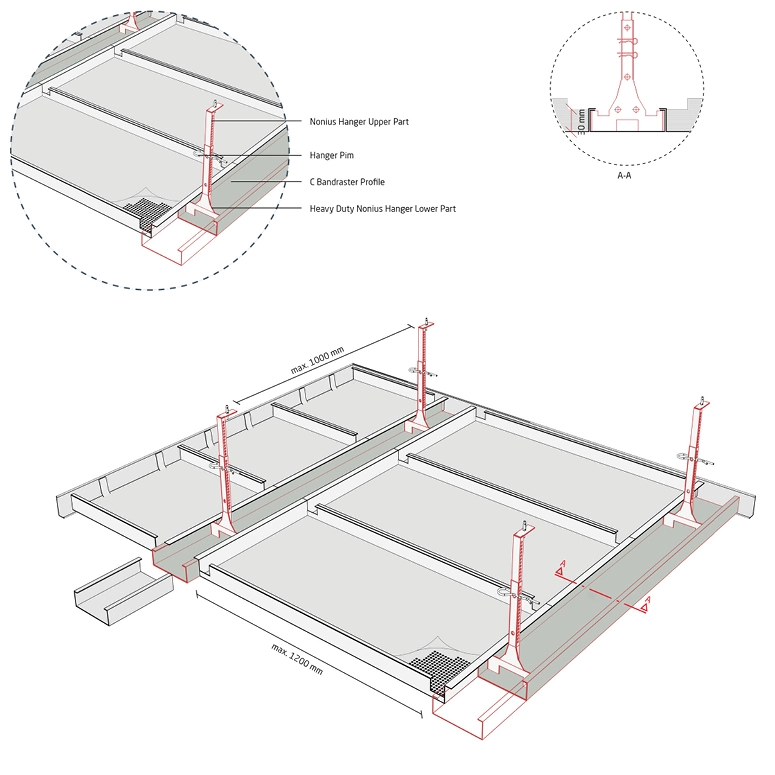

BAND GRID NONIUS
Integra Pespekta C Bandraster Nonius is offered when the system needs to have a certain stiffness. Such a solution meets both aesthetic and functional requirements of the designers. The hanging system is strengthened by the use of vernier hangers.
BANDRASTER HINGE-DOWN NO
Integra Perspekta C Bandraster Hinged Panels can be lowered from the ceiling by hanging from hinges on the edges of the profile. In areas where frequent and quick access is needed, hinged panels offer a lot of benefit."
COLORS
ALL COLORS
