GALLO ROOF TILES AND SLATE
GALLO ROOF TILES AND SLATE
Giving Your Home The Villa Look It Deserves
The Gallo profile gives with its soft, Mediterranean curves an stylish, upper-class look to your home, with the additional benefits of steel roofing.
Because of the downturned front and the upturned rear edges, the panels have a strong overlapping and interlocking tile covering, which provides an excellent durability, protection and resistance to wind lift or other extreme weather conditions.
INFORMATION
PRODUCT TYPE
Roof Tile
TILES PER
2.28 m²
BATTEN SPACE
368 mm

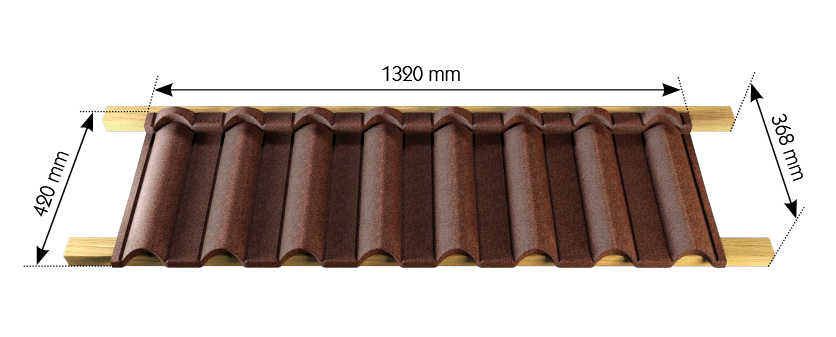

DIMENSIONS
- Overall Length : 1320 mm
- Width of cover : 368 mm
- Overall Width : 420 mm [± 3 mm]
WEIGHT /TILE
3.00 kg
WEIGHT/AREA
6.84 kg/m²
ROOF PITCH
- Minimum roof pitch : 10° (18 %)
- Maximum roof pitch : 90°
STEEL
- Steel Grade : DX52D
- Steel Thickness : 0.41 mm
DETAIL
The Gallo is an eight tile, stone-coated panel pressed from a high grade of anti-rust coated steel and is available in a wide selection of colours to enhance any exterior colour scheme.
ROOF COVER
0.438 m²
LENGTH OF COVER
1190 mm
MATERIAL STRUCTURE
MEASUREMENTS
The measurements and the weight may vary slightly by the finish that is added to the accessory.
UP STAND
25 mm
DOWN TURN
25 mm
DETAIL
STEEL DETAIL
The Metrotile Gallo tile is made of Aluzinc® alloy coated steel. The grade of steel used is designed to allow forming without cracking or significant elastic recovery and at the same time to be rigid enough to tolerate reasonable loads without excessive deformation.
- Aluzinc® Coating Mass 150 g/m²
- Aluzinc® Coating Grade AZ150
COATING SPECIFICATION
-Overglaze : Clear 100% acrylic resin coating for granule binding and a semi-gloss finish. It helps enhance the appearance as well as increase the resistance to physical damage.
-Stone Chip : Carefully selected granules provide excellent surface coverage and attractive natural looking and lasting colours.
-Basecoat : A tough opaque coating based on acrylic resin. It bonds the stone chips and protects the underlying layer from water and UV radiation. It has good UV resistance and retains its flexibility although it does become harder after the first few weeks.
-Transparent coatings : Both sides of the Aluzinc® alloy coated steel are coated with a transparent layer that provides protection and a uniform substrate for further coatings. This transparent coating allows identification of the aluminium-zinc substrate to be made by distributors and customers.
