METAL PANEL CEILING WITH BANDRASTER FOR GEOMETRIC PATTERNS
METAL PANEL CEILING WITH BANDRASTER FOR GEOMETRIC PATTERNS
The NormaGrid metal panel ceiling with bandraster fully meets aesthetic and functional expectations.
The system offers the possibility to create different geometric patterns with bandraster profiles.

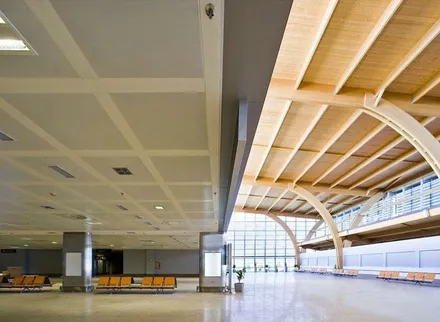

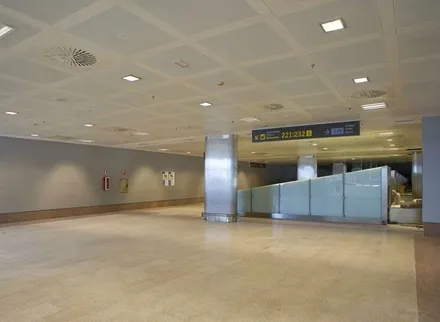

Ideal for spaces with both aesthetic and functional requirements such as offices and airports. Discover the versatility in detail and acoustic options in black, white and gray.
INFORMATION
PERFORATION
- Ø12.0, Ø16.0, 8 x 8 square.
- Ø3.0, Ø4.5, Ø6.0, Ø7.0
- Ø12.0, Ø16.0, 8 x 8 square.
INLAY
- Acoustic fleece (Soundtex)
- Sealed rock wool or polyester fiber mat
COLLECTION
NormaGrid
PRODUCTION
Made in Netherland
USE
Interior
THICKNESS
0.6 to 1.0 mm.
COLORS
- Black
- White
- Grey
WIDTH
- Panels 800 mm to 1200 mm
- Bandraster profiles 100 to 200 mm
EDGES
Sharp-edged (Default)
FIRE CLASS
Fire reaction group A2-s1.d0.
LENGTH
- Panels 800 mm to 1200 mm
- Bandraster profiles 100 to 200 mm
TECHNICAL DRAWINGS
ACOUSTICS
NRC: 0.60 to 0.90
OPTIONS
Panels can be fitted with a folding option
MATERIAL
- Galvanized steel
- stainless steel and aluminum
COLOR
-RAL9006, RAL9010 and RAL9016 -if desired, production is possible in all other RAL colors and NCS colors. -If desired, special anti-bacterial paint is possible for places where hygiene is important -If desired, panels with a wood motif can be produced. -For more information see colors.
ACOUSTICS
The metal ceilings of Integra can be supplied with an acoustic fleece and / or sealed stone or glass wool. In addition to its technical performance, the acoustic insert can also be perceived as part of the architectural design with its visible surface.
TECHNICAL STANDARDS
ceiling panels are supported by the clip-in system, which are produced according to European, American and TAIM (Technical Association of Industrial Metal Ceiling Manufacturers) standards, which are produced in our factory according to ISO 9001.2008, TSE certificates panels are tested according to the EN 13501-1 standard.
INSTALLATION SCHEDULE NORMA-GRID SYSTEM
| PROFILE / ACCESSORIES | PRODUCT CODE | QUANTITY MODULE 1.200X1.200 mm |
|---|---|---|
| C profile | OJ 100 K2 | 1.38 pcs / m2 |
| Box | CZK-100 | 0.70 pcs / m2 |
| Threaded rod or vernier | ATJ-100 | 0.70 pcs / m2 |
| Bolt nut | CDS60 | 0.70 pcs / m2 |
STANDARDS AND GUIDELINES
The measurements were carried out in accordance with the quality manual of the Laboratory for Acoustics and the following standards: ISO 354:2003[1] Acoustics and Measurement of sound absorption in a reverberation room.Note The ISO 354 standard has been accepted as European Standard EN 354:2003 in all EU countriesSome single number indications can also be calculated from the measurement results, which are displayed in thirds from 100 to 5000 Hz.
The following standards are used for this: ISO 11654: 1997Acoustics - Silencers for use in buildings - Rating of sound absorption ASTM C423 Standard test method for sound absorption and absorption coefficients by the reverberation room method.
Integra metal panels meet the required level of absorption (NRC). The acoustic performance reports can be downloaded from our website.
This standard states that for each measurement the average reverberation time of the empty reverberation room and of the reverberation room with the material to be investigated must be indicated per frequency band in the report. In order not to burden the client with a large series of figures that are not relevant to assess the quality of the product, these have been omitted from this report. Naturally, these figures can be provided afterwards at the request of the client.
