Metrotile Xbond Roof Tile and Slate
XBOND ROOF TILE AND SLATE
XBOND ROOF TILE AND SLATE
XBond is a fusion of the wave shape and an advanced roof tile. The common perception of noisy steel roofs is a thing of the past with.
The appearance is one of the main concerns when it comes to the decision about the roof. XBond clean lines will blend well on any house in any location.
INFORMATION
PRODUCT TYPE
Roof Tile
TILES PER
1.95 m²
DIMENSIONS
- Overall Length : 1470 mm
- Width of cover : 367 mm
- Overall Width : 410 mm [± 3 mm]
WEIGHT /TILE
2.25 kg
WEIGHT/AREA
4.39 kg/m²
ROOF PITCH
- Minimum roof pitch : 12° (21 %)*
- Maximum roof pitch : 90°
STEEL
- Steel Thickness : 0.43 mm
- Steel Grade : DX52D
DETAIL
As modern buildings have become more complex, lightweight and yet strong profile enables the design of modern design enhancing roofs that provide numerous safety advantages.
ROOF COVER
0.513 m²
LENGTH OF COVER
1400 mm

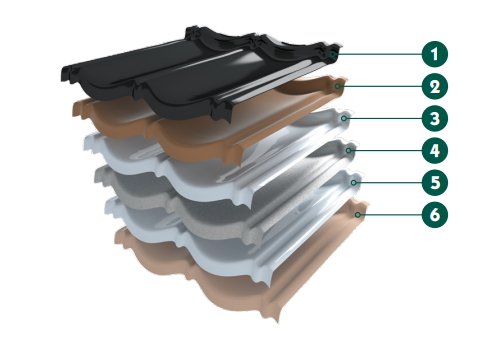

MATERIAL STRUCTURE
-1 Super durable powder coating (> 80 μm) -2 Polyurethane primer -3 Zinc-aluminium-magnesium alloy -4 Steel 0,43 mm -5 Zinc-aluminium-magnesium alloy -6 Polyester primer
DETAIL
COATING DETAIL
-Polyester Backer Coating : This coating provides increased durability to the underside of the tiles.
-Polyester Powder Coating : The finish coating is an extremly durable Polyester Powder Coating that is applied post pressing.
-Polyurethane primer : The primer is applied by a coil coating process, this coating provides increased corrosion protection and a surface for superior adhesion of the Powder Coating that is applied.
STEEL DETAIL
The Metrotile X Bond Prestige tile is made from pre primed zinc-aluminium-magnesium coated steel that when combined with the extra durable powder coating finish provides optimal performance. The grade of steel used is designed to allow pressing without cracking while at the same time is ridged enough to tolerate reasonable loads.
- Zinc-aluminium-magnesium Coating Mass 250 g/m²
- Zinc-aluminium-magnesium Coating Grade ZM250
COLOURS
BRILLIANCE
MATT

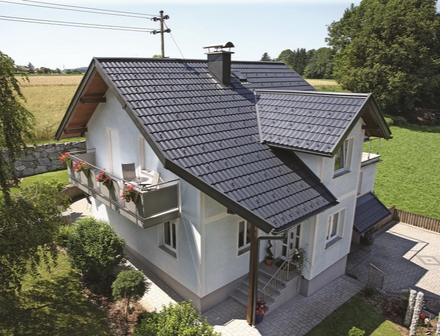

GALLERY
