Integra Quadroline Grid Ceiling
QUADROLINE GRID CEILING
QUADROLINE GRID CEILING

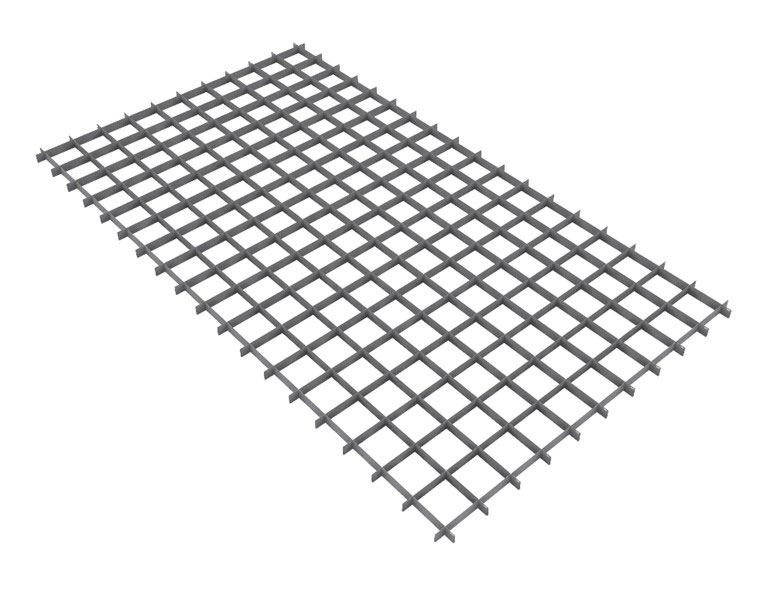

The Quadroline is a linear solution for the Eurogrid system.
It consists of a U-shaped profile and modular 1200x600mm panels, which can be dismantled downwards.
INFORMATION
BRAND
Integra
PRODUCT TYPE
Ceiling
COLLECTION
Quadroline
PRODUCTION
Made in Netherland
THICKNESS
0.43 mm (standard)
WIDTH
600 mm (standard)
LENGTH
1.200 mm (standard)
HEIGHT
30 mm (standard)
USE
Interior
SPRINGS
4
COLORS
- Black
- White
- Grey
ACOUSTICS
The grid ceilings from Integra can be supplied with a polyester fiber mat. In addition to its technical performance, the acoustic insert can also be perceived as part of the architectural design with its visible surface. Color
MATERIAL
Aluminum
CEILING
Square & Rectangle
DETAIL
The side slats are 40mm high, in combination with cross sections with a height of 20mm, both with a width of 9mm. The suspension consists of black profiles with accessories. Each panel is mounted on the supporting structure with 4 springs.
COLOR
A large number of finishes are available in pre-painted or post-painted aluminum in RAL, NCS, Pantone and SIKKENS colors.
TECHNICAL DRAWINGS
INSTALLATION DIAGRAM
| ACCESSORIES (1M2) | UNIT | PANEL 600X1200 MM |
|---|---|---|
| DELTA-01 Suspension construction | M1 | 0.83 |
| DELTA-02 Length connector | Broken | 0.28 |
| DELTA-03 Cross connector | Broken | 5.56 |
| ATJ-100 Threaded rod or vernier | Broken | 0.80 |
COLORS
ALL COLORS
