Integra Metal Baffle Ceiling, Type Expo
METAL BAFFLE CEILING - TYPE EXPO
METAL BAFFLE CEILING - TYPE EXPO
Screw-mounted baffle system, multi-hole rails for flexible positioning

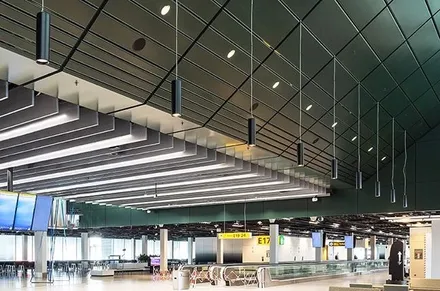

Integra Baffle Expo is not only functional, but also a visual eye-catcher. With this system, various lighting elements can be integrated, allowing you to create the right atmosphere in your room.
The system can be designed with various space distances between the slats and is attached to the suspension system with screws, which ensures stability and durability.
Integra Linear System Baffle Expo is an innovative and aesthetic design for linear systems. Various lighting elements can be integrated into the system. Integra Baffle Expo can be designed with different space options and is attached to the hanging system with screws.
INFORMATION
PRODUCT TYPE
Metal Ceiling
BRAND
Integra
MATERIAL
Aluminum
COLLECTION
Metal Baffle
PRODUCTION
Made in Netherland
SURFACE
Panels resistant to scratches and corrosion.
DETAIL
Integra Linear System Baffle Expo is an innovative and aesthetic design
SIZES
Base (b): ... mm
Height (h): ... mm
Length (L): ... mm
Center to center: C/C: ... mm
(The measurements of L and C can be adjusted optionally.)
PROTECTIVE FILM
Baffle surfaces coated with protective film that is resistant to weather, sun rays and external influences.
COLOR
Baffle panels with electrostatically applied powder coating in standard RAL 7032 color (min. 60 µ thickness and approx. 20% gloss). All RAL colors are possible.
DIFFERENT SPACE OPTIONS
Integra Baffle Expo can be designed with different space options and is attached to the hanging system with screws.
TECHNICAL DRAWING
SUSPENSION SYSTEM
- Threaded rod anchor.
- Baffle panel connection
- Bolt/Nut/Roundelle Ø6 mm
- Threaded rod, Ø6 mm, length 1000 mm (Standard)
- Primary L-Runner, L-shaped, 30x30 mm size, 4000 mm length, 1 mm thickness, galvanized steel / Carrier C-profile, C-shaped
