OUTDOOR CEILING - HOOK-ON METAL PANELS
OUTDOOR CEILING - HOOK-ON METAL PANELS
Outdoor ceiling system - made of aluminium
Integra's outdoor ceiling systems combine aesthetics and functionality and offer sustainable solutions for both residential and commercial projects.
They are high-quality solutions for outdoor spaces, ranging from functional canopies to aesthetic ceilings that beautify the outdoor environment. The Hook-on 'outdoor system' is the ideal solution for canopies, stations, outdoor ceilings and tunnels.
INFORMATION
EDGES
Beveled (4 mm) or sharp-edged (Standard)
BRAND
Integra
PRODUCT TYPE
Panels
COLLECTION
Ceilings
INLAY
Polyester Fiber Mat
MATERIAL
Aluminium
THICKNESS
0.7 to 1.0 mm
COLOR
RAL9010, RAL9016 and RAL9006 (90 mu - outdoor quality)
- if desired, production is possible in all other RAL colors and NCS colors.
PERFORATION
Unperforated or Ø2,5 (standard), Ø3.0 mm. For more information see perforation.
ACOUSTICS
NRC: 0.60 to 0.90 For more information see reports
WIDTH
200 mm to 900 mm
LENGTH
200 mm to 2000 mm
OPTIONS
Panels can be fitted with folding option (brackets)
FIRE CLASS
Fire reaction group A2-s1.d0.
TECHNICAL STANDARDS
Ceiling panels are supported by the clip-in system, which are produced according to the European, American and TAIM (Technical Association of Industrial Metal Ceiling Manufacturers) standards produced in our factory
according to ISO 9001.2008, TSE certificates Panels are tested according to the EN 13501-1 standard.

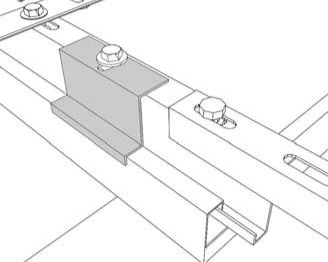

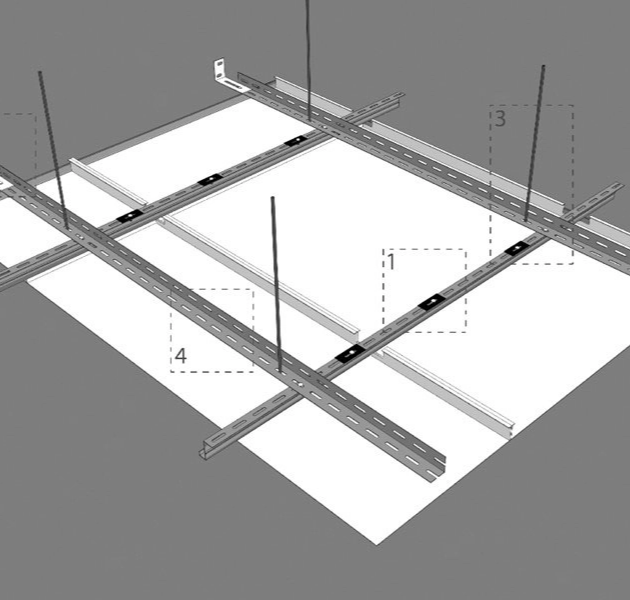

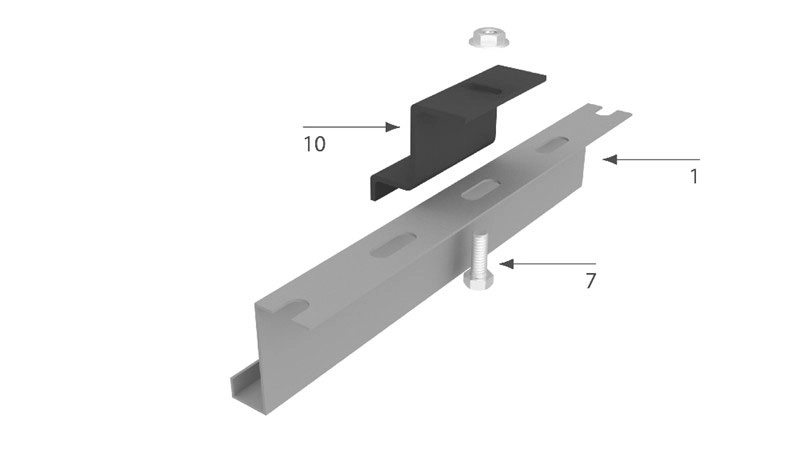

DETAIL
