REGULAR CURTAIN WALLING WINDOW
REGULAR CURTAIN WALLING WINDOW

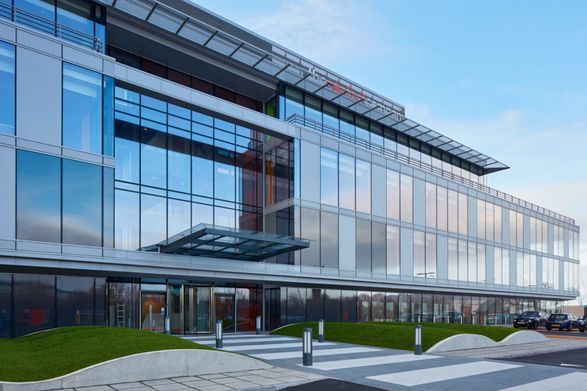

EFP 50 RCW and EFP 60 RCW curtain wall systems enables the construction of attractive sloped and inclined curtain walling, with the benefits of slim sightlines.
information
BRAND
EFP
PRODUCT TYPE
Window system
GLASS THICKNESS
2mm up to 68mm; glazing according BS 6262
DRAINAGE
Mullion drained and pressure equalised as specified in BS 6262
EFP 60 RCW
With an increasing demand for larger vertical and horizontal spans a range of high static value mullions and transoms with a sightline of 60 mm.
- Same components and gaskets as EFP 50 RCW
- One substructure for all curtain wall types (RCW-TSH-TSV-FSS)
COLLECTION
Regular Curtain
PRESSURE PLATE GASKET
Continuous pressure plate gasket
TYPICAL SPRING
Economic ladder (unit) construction by using typical spring loaded transom spigots
WIDE RANGE
Wide range of cover caps with typical edge radius of 1.5 mm for even distribution of the powder coating layer. Sightlines of 50mm
SOUND ISOLATION
Depending largely upon the glass spec, the frame reduces the figure about 2dB(A)
INCORPORATES EFP SYSTEMS
Incorporates EFP Systems:
– Louver & Sunshade Blades
– Windows & Doors
– Sliding and Windows & Doors
WATER TIGHTNESS
Up to 750 Pa; Class RE 750 acording BS EN 12154
AIR INFILTRATION
Up to 750 Pa; ClassAE 750 according BS EN 12152
THERMAL INSULATION
Class 2.1 in accordance with EN ISO 10077-1
WIND RESISTANCE
-2400 Pa design- 3300 Pa safety – according BS EN 13116
THERMALLY INSULATED
These thermally insulated 50 and 60 mm stick curtain wall system consist of many standard profiles. Customs made profiles are available upon request.
DETAIL
-Continuous pressure plate gasket -One substructure for all curtain wall types (RCW-TSH-TSV-FSS) -Fully integrated concealed window system EFP 55 SSG -Tested in the UK at Taylor Woodrow according the latest European Standards

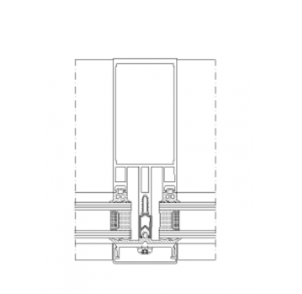

TECHNICAL DRAWINGS
