Dupont Wall 5-in-1 Composite Panel For Commercial Wall Systems
WALL 5-IN-1 COMPOSITE PANEL FOR COMMERCIAL WALL SYSTEMS
WALL 5-IN-1 COMPOSITE PANEL FOR COMMERCIAL WALL SYSTEMS
ArmorWall™ Plus Fire-Rated Structural Insulated Sheathing
FEATURES & BENEFITS
AIR AND WATER-RESISTIVE BARRIER
-Arrives complete to the jobsite with a factory-applied, high quality air and water-resistive barrier -Coating offers industry-leading exterior adhesion performance and compatibility with tapes, sealants, and other materials
CLADDING ATTACHMENT SUPPORT
Capable of handling many different claddings, attachments, and hangers, all of which attach directly into the component layers of the sheathing and no longer require attachment back to the stud frame or substrate assemblies
KEY FEATURES
Featuring a 1/2" layer of Magnesium Oxide (MgO) sheathing on the exterior side, DuPont™ ArmorWall™ Plus Fire-Rated (FR) Structural Insulated Sheathing (SIS) arrives at the job site complete with a high-quality air and water-resistive barrier on the exterior.
FUSION TECHNOLOGY
-High-performance, poured polyurethane insulation layer fused to our sheathing, which provides an easy way to comply with continuous insulation requirements in building codes -Utilizes a 1/2" layer of Magnesium Oxide (MgO) sheathing on the exterior face, providing top of the line fire-resistance, durability, and strength
INSTALL IN HARSH WEATHER
-ArmorWall™ Plus FR SIS™ can be exposed to weather for up to 180 days -ArmorSeal line of products can be installed and cured in harsh weather conditions, with overall proven functionality of the panel in all outdoor environments
INFORMATION
APPLICATIONS
ArmorWall™ Plus FR SIS is an ideal solution for the following building types:
- Medical Buildings
- High Rise Buildings
- Multifamily Buildings
- Institutional Buildings
- Public Municipal Buildings
- Mixed-Use and Retail Buildings
BRAND
Dupont
PRODUCT TYPE
Wall Systems
COLLECTION
ArmorWall™ Plus
PANEL COVERAGE
48" x 96" (32 sqft/ sheet)
R-VALUE
- 21
- 10
- 15
SKU
- 10 : APL200096
- 15 : APL234096
- 21 : APL334096
PRODUCT BENEFITS
-Top of the line fire-resistance, durability, and strength
-Cladding no longer requires attachment back to the stud frame assembly or other substrates-Industry-leading exterior adhesion performance and compatibility with tapes, sealants, and other materials -Meets continuous insulation (ci) requirements, building codes, and construction schedules faster and cost effectively.
LAYER
1/2
DOWNLOAD
↓ Data Sheet
TOTAL PANEL THICKNESS
- 10 : 2
- 21 : 3.75
- 15 : 2.75
WIDTH
48
LENGTH
96
RESISTANT
Fire-resistant
SHEATHING THICKNESS
1/2"
WEIGHT
- 10 : 103 lbs
- 15 : 110 lbs
- 21 : 115 lbs
INSULATION THICKNESS
- 10 : 1 1/2"
- 15 : 2 1/4"
- 21 : 3 1/4"
ARMORWALL™ PLUS FR SIS

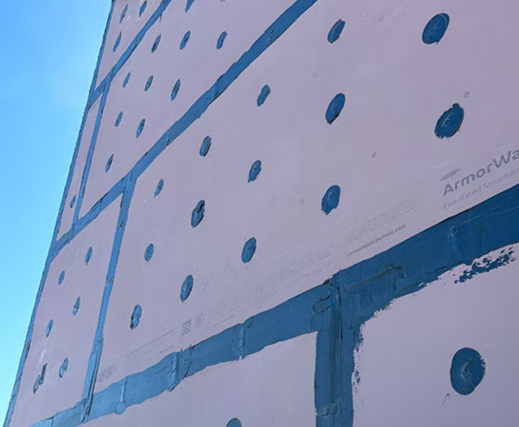

DuPont™ ArmorWall™ Plus Fire-Rated (FR) Structural Insulated Sheathing (SIS) is an ICC listed, high strength, fire-resistant exterior wall sheathing product. ArmorWall™ Plus FR SIS offers a factory-applied, high quality air and water-resistive barrier.. Once seams and fasteners have been sealed the enclosure may be considered “dried-in”, allowing interior construction to commence regardless of final exterior finish status.
ArmorWall™ Plus FR SIS incorporates five traditional building enclosure elements into a single panel product: structural sheathing, fire-resistance, air barrier, water-resistive barrier, and a high-performance continuous insulation layer. The five-in-one system of ArmorWall™ Plus FR SIS can replace several traditional individual components that, on their own, add cost, labor and complexity to a project.
PHYSICAL PROPERTIES
| PROPERTIES | METHOD | UNIT | VALUE |
|---|---|---|---|
| Air Leakage Resistance | ASTM E2357 | - | Pass |
| Air Infiltration at 75 Pa | ASTM E283 | cfm/ft2 | 0.01 cfm/ft2 (0.1 L/s/m2 |
| Air Infiltration at 300 Pa1 | ASTM E283 | cfm/ft2 | 0.04 cfm/ft2 (0.2L/s/m2) |
| Water Penetration at 6.27 psf (300 Pa) | ASTM 331 | - | Pass |
| Mold and Mildew | ASTM C1338 | - | Pass |
| Fastener Sealability2 | ASTM D1970 | - | Pass |
| Fire Resistance3 | NFPA 285 | - | Pass |
| Vapor Permeance (of 2" panel) | ASTM E96, Procedure A | - | 0.5 Perms (grains/hr in Hg ft2) |
| Flame Spread/Smoke Developed Index (facer) | ASTM E84 | - | 0 / 0 |
| Flame Spread/Smoke Developed Index (insulation) | ASTM E84 | - | 10 / 250 |
| Thermal Resistance | ASTM C518 (ASTM-54) | - | 6.5 per inch |
| Foam Compression Range | ASTM D1621 (ASTM-65) | - | 30 psi |
| Fastener Withdrawal Capacity | ASTM D17614,5 | - | 284 lbs |
| Fastener Pull Through5 | ASTM D17614,5 | - | 505.2 lbs |
| Fastener Shear in Sheathing Only6 | ASTM D17614,5 | - | 519 lbs |
