SHERPA AQUADUE S2 HEAT PUMP
SHERPA AQUADUE S2 HEAT PUMP
The aquadue® patented technology thanks to the combination of an air-water cycle with inverter technology and a second stage water-water guarantees the cooling or the heating contemporary to the dhw production at high temperature, indipendently from the outside temperature.
FEATURES
LOW GWP GAS
In sizes up to 10 kW, it uses the R32 refrigerant, characterised by greater efficiency and a greenhouse effect reduced by almost 70% (compared to R410A).
DHW (DOMESTIC HOT WATER) AND COMFORT AT THE SAME TIME
The two interconnected refrigerator cycles allow the decoupling of the heating/cooling from the DHW production, enabling them to operate in parallel, avoiding thus interruptions in the domestic comfort supply.
75°C DOMESTIC HOT WATER
High temperature DHW storage allows a reduction of the boiler volume up to 30%, to heat bathroom heater radiators and avoids highly energyconsumpting anti-legionella cycles that are normally performed through the use of electrical resistances.

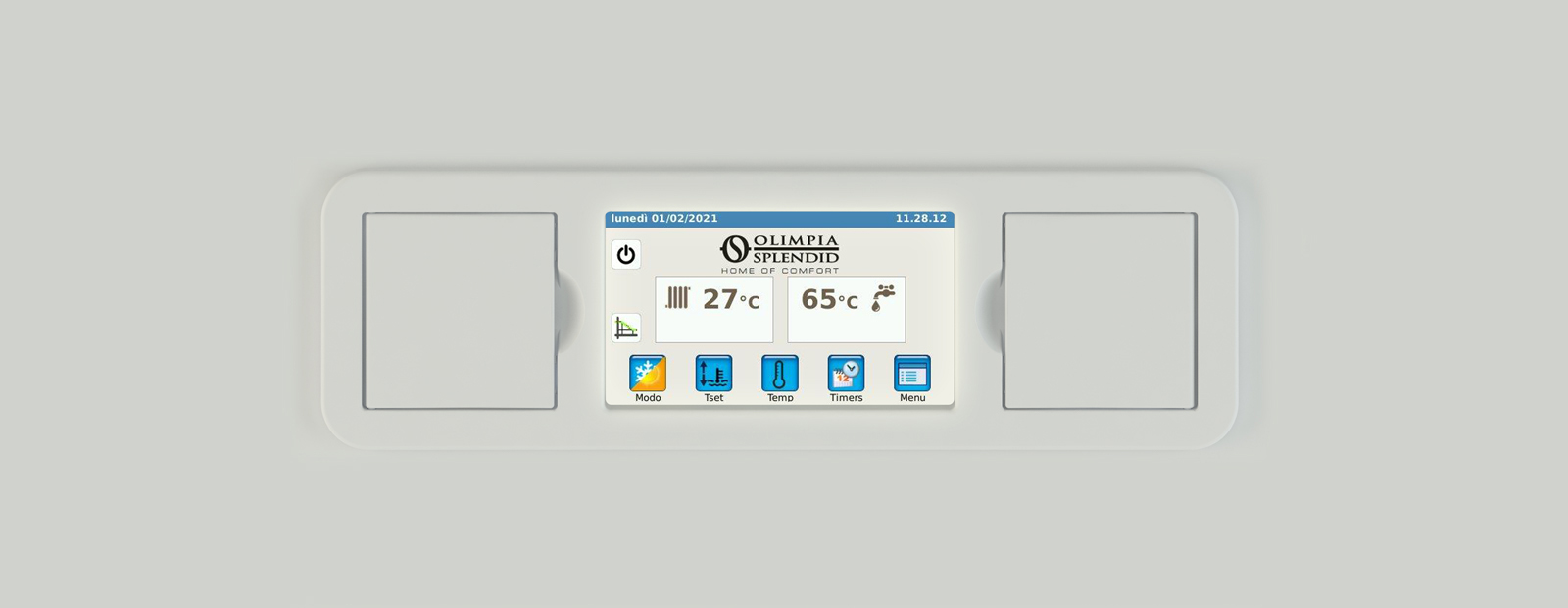

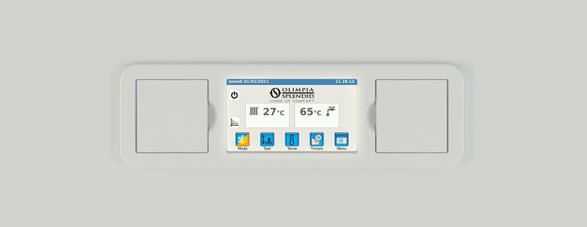

TOUCH SCREEN USER INTERFACE
The control of Sherpa Aquadue, extremely flexible and configurable, is used to customise the intervention thresholds of the two cycles at the time of installation and the needs for comfort and DHW, as well as to optimise energy performance by managing operation of the dual cooling cycle.
INFORMATION
BRAND
Olimpia Splendid
PRODUCT TYPE
Heat Pump
WEEKLY PROGRAMMER DHW
Holidays and daily with night mode.
TEMPERATURE
DHW (Domestic Hot Water) production at a high temperature, up to 75 ° C.
ANTILEGIONELLA CYCLES AVOIDABLE
Using the refrigeration cycle at high temperature. 2-stage electric heater: single or double strength activation to support the heat pump through a simple configuration of the electronic control. Each stage is activated according to the actual need of thermal power in order to optimize power consumption.
PRODUCTION
Made in Italy
COLLECTION
Sherpa
AVAILABLE POWERS
4 powers with R32 refrigerant: 4-6-8-10 kW single-phase and 3 powers with R410A refrigerant: 12-14-16 kW single-phase and three-phase
CONTINUOUS ABSOLUTE AVAILABLITY OF DHW
Guaranteed by the redundance of the double refrigerating circuit system.
ENERGY EFFICIENCY CLASS IN HEATING MEDIUM CLIMATE UP TO
A+++ (35°C) e A++ (55°C)
CONFIGURABLE POINTS
Two set points in cooling mode three set points in heating mode (one of them for dhw): the set points are also selectable by remote contact.
DOWNLOADS
↓ Energy Label
↓ Catalogue
↓ CE Declaration
↓ Dimensional drawing
↓ Installation template
↓ Installation manual UE Sherpa Small 4-6-8-10 kW
↓ Installation manual UE Sherpa Big 12-14-16-12T-14T-16T
↓ Installation manual UI Sherpa Aquadue S2 Small 4-6-8-10 kW
↓ Installation manual UI Sherpa Aquadue S2 Big 12-14-16-12T-14T-16T
FUNCTION
Heating
TWO CURVES
Cooling & Heating
DHW MANAGEMENT
A group of water-water heat pumps integrated in the indoor unit provides domestic hot water at a high temperature regardless of external weather conditions.
CLIMATIC CURVES
With outside air temperature sensor: two curves are available, one for cooling and one for heating. Climatic curves allow you to modify system water temperature supply depending on climate conditions, adapting the heat requirements of the building in order to obtain Energy savings.
REFRIGERANT GAS
R32* or R410A* for the reversible circuit dedicated to air-conditioning and R134a** for the high temperature circuit dedicated to DHW production.
