Impronta Wood And Aluminum Windows Compact
WOOD AND ALUMINUM WINDOWS COMPACT
WOOD AND ALUMINUM WINDOWS COMPACT
Compact is the Impronta window in aluminum with thermal break and laminated wood sash, which has an additional external aluminum cladding.
Available in the essences of fir, larch, red grandis and oak, this window with a double core of wood and aluminum proves to be versatile in use and appearance.
Compact offers the possibility of having an internal finish of the wood different from the external one of the aluminum. An interesting possibility when looking for a piece of design and not just a window.
INFORMATION
BRAND
Impronta
PRODUCT TYPE
Window
AIR PERMEABILITY CLASS (1-4)
CLASS 4
LIGHT TRANSMISSION
72%
WOOD
- Spruce
- Larch
- Oak
- Teak
- Ash
- Okoumè
PRODUCTION
Made in Italy
CAPACITY
150 kg
SOLAR FACTOR
49%
MAINTENANCE
Minimal
OPENING
At 95 degrees
THERMAL INSULATION
0.88 W/m²K
SOUND INSULATION OF THE GLASS
Up to 45 dB
MATERIAL
- Recyclable
- Wood/green
- Environmentally Friendly
SAFETY
High
DOWNLOAD
↓ Data Sheet

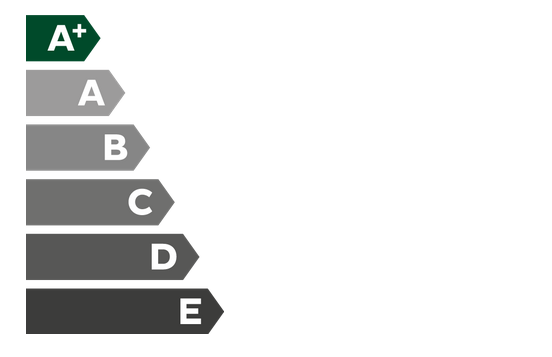

ENERGY LABEL
The energy index is based on English window standards. The actual energy consumption for a specific installation depends on the building and climatic conditions.
DETAIL
GLASS
Standard double glazing 33.1 low emissivity / 14/4/14 / 33.1 low emissivity with argon gas and thermal break spacer (Ug = 0,6 W / m2K).
CONSTRUCTION
Door construction: corner connection with cylindrical pins and anti-torsion pin. Integrated glazing bead. Frame construction: corner connection with alignment and crimping brackets. Frame section 75x70 mm. Leaf section 77x78 mm.
HARDWARE AND ACCESSORIES
Retractable tilt and turn locking hardware as standard, capacity of 150 Kg, opening at 95 degrees. RC1 burglar-proof hardware configuration with mushroom-shaped locking points. External cover in aluminum 40x20 mm. Three thermo-acoustic seals.
FINISHING
Water cycle varnish with natural or colored anti-mold and anti-woodworm impregnating agent, base and finish. The paints used have a low environmental impact. Aluminum cladding fixed to the wooden door by clips and spaced from the wooden part to allow ventilation and prevent the formation of mold. High strength powder coated aluminum.
