Makro Street Bathtubs To Clad
STREET BATHTUBS TO CLAD
STREET BATHTUBS TO CLAD

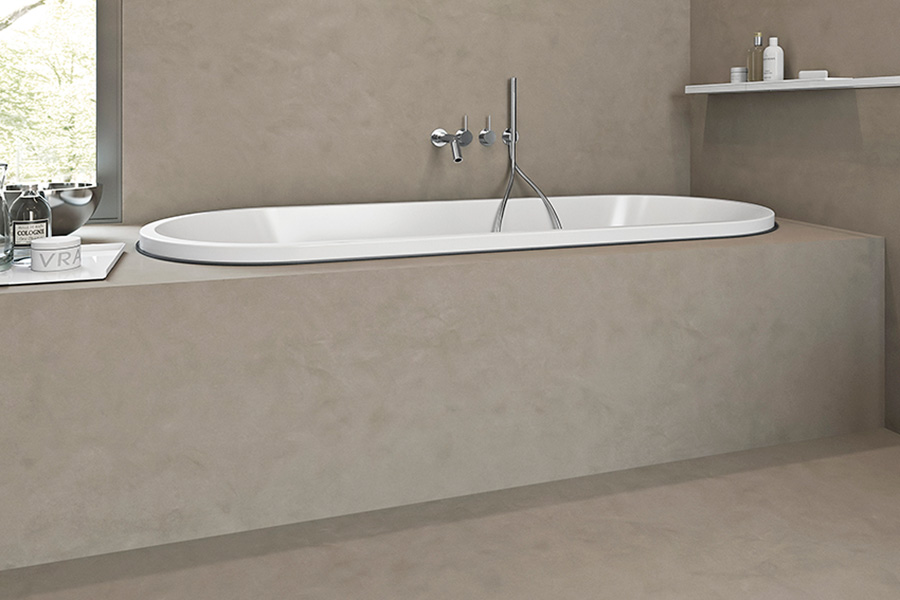

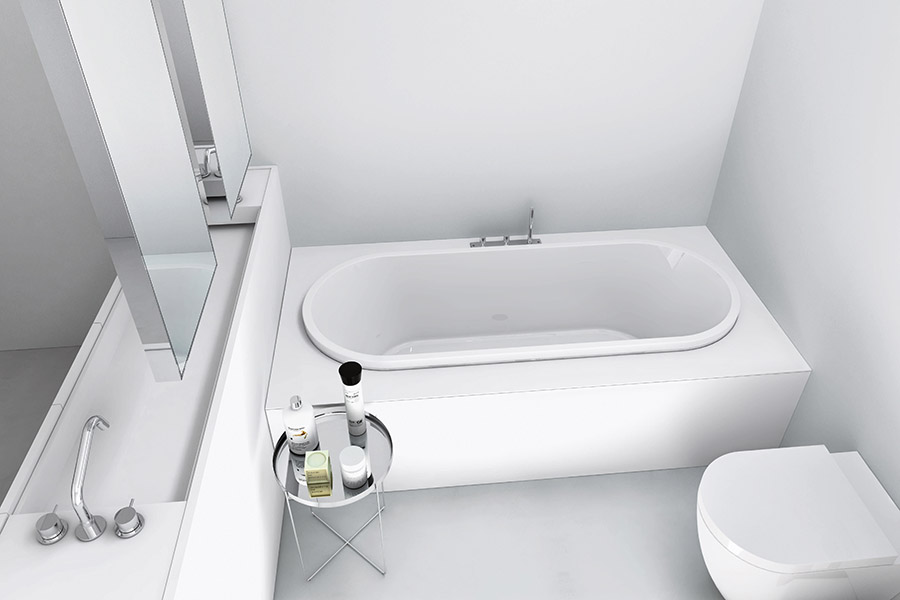

A clean-cut stylish shape characterizes the Street bathtub, consisting in a sit-on oval base integrated in an outer structure of expanded polystyrene (EPS). The edge of the bathtub protrudes from the bathtub top by about 35 mm along the entire perimeter.
The top can be clad in mosaics, porcelain stoneware and ceramics, and it is also suitable for resin finishes. The standard range of claddings includes Corian®, Makril, glass, thermo-treated wood, cement, marble and Touch (for lateral claddings only). There are three standard sizes: 180×80 cm; 190×90 cm and 200×100 cm.
INFORMATION
BRAND
Makro
PRODUCT TYPE
Bathtub
BATHTUB’S EXTERNAL SIZE
- 180 x 80 x 46 cm
- 190 x 90 x 46 cm
- 200 x 100 x 46 cm
DOWNLOADS
↓ Data Sheet
↓ DWG
↓ Dimensions And Types
WEIGHT
26 kg
STANDARD HEIGHT
46 cm
POP-UP WASTE
-Standard Pop-up Waste : Pop-up waste with siphon without overflow with filler
-Pop-up waste with ETP : pop-up waste with siphon with overflow with filler
HEIGHT ACRYLIC EDGE
3.5 cm
ACRYLIC BASE SIZE
158 x 58 cm
BATHTUB’S TOP / TAMPLATE
Please rely on the template dima top_makro see the dedicated technical sheet to measure customized tops
BATHTUB’S TOP / TAPS
It’s possible to make single holes for taps withtout plate or cut-outs for taps with cover plate. in both cases always attach the technical specifications of the taps
GLUES
To glue the top and side cladding to the EPS body of the bathtub, we recommend to use the glue mapei keralastic, or other products having similar technical features
CLADDINGS
Street can be clad with standard claddings belonging to our collection On application street can be clad with custom made claddings
PRODUCTION
Made in Italy
FLEXIBILITY
Our bathtubs can be cut and adjusted on site using carpentry tools
MADE TO MEASURE BATHTUBS
The external sizes of our bathtubs can be customized adding EPS compensation panels or reducing the size of the EPS body
TAILOR-MADE BATHTUBS
We can produce tailor made bathtubs and make linear cuttings of the EPS structure in case of outer square
AVAILABLE STANDARD FINISHES
The top is available in the standard finishes Corian®, polished or satined glass, marble, eco-cement and thermo-treated; Touch finish is available only for claddings.
COUNTERTOP BATHTUB TAPS
-Cut-out in EPS structure required for taps and water connection -Cut-out for taps’ installation: standard size 50 x 6 cm; -Custom-made cut-outs can be done after feasibility check.
CAPACITY AT OVERFLOW LEVEL
180 lt
POP-UP WASTE
58 cm (length with and without ETP)
TYPOLOGY
- Niche
- Corner
- Wall
- Wall short side
- Freestanding
EXTERNAL PANEL
External polystyrene panel
POLYSTYRENE STRUCTURE
Expanded polystyrene structure (EPS)
DETAIL
-Top -Pannelling -Siphon Ø 40 mm -Basin in cast acrylic -Drain column (cable length l.57,5 cm) -Lowered floor slab for connections H.70 mm
TECHNICAL DRAWINGS
STREET 180X80
STREET 190x90
STREET 200x100
