Leeboy NB25 Brooms Sweeper
NB25 BROOMS SWEEPER
NB25 BROOMS SWEEPER

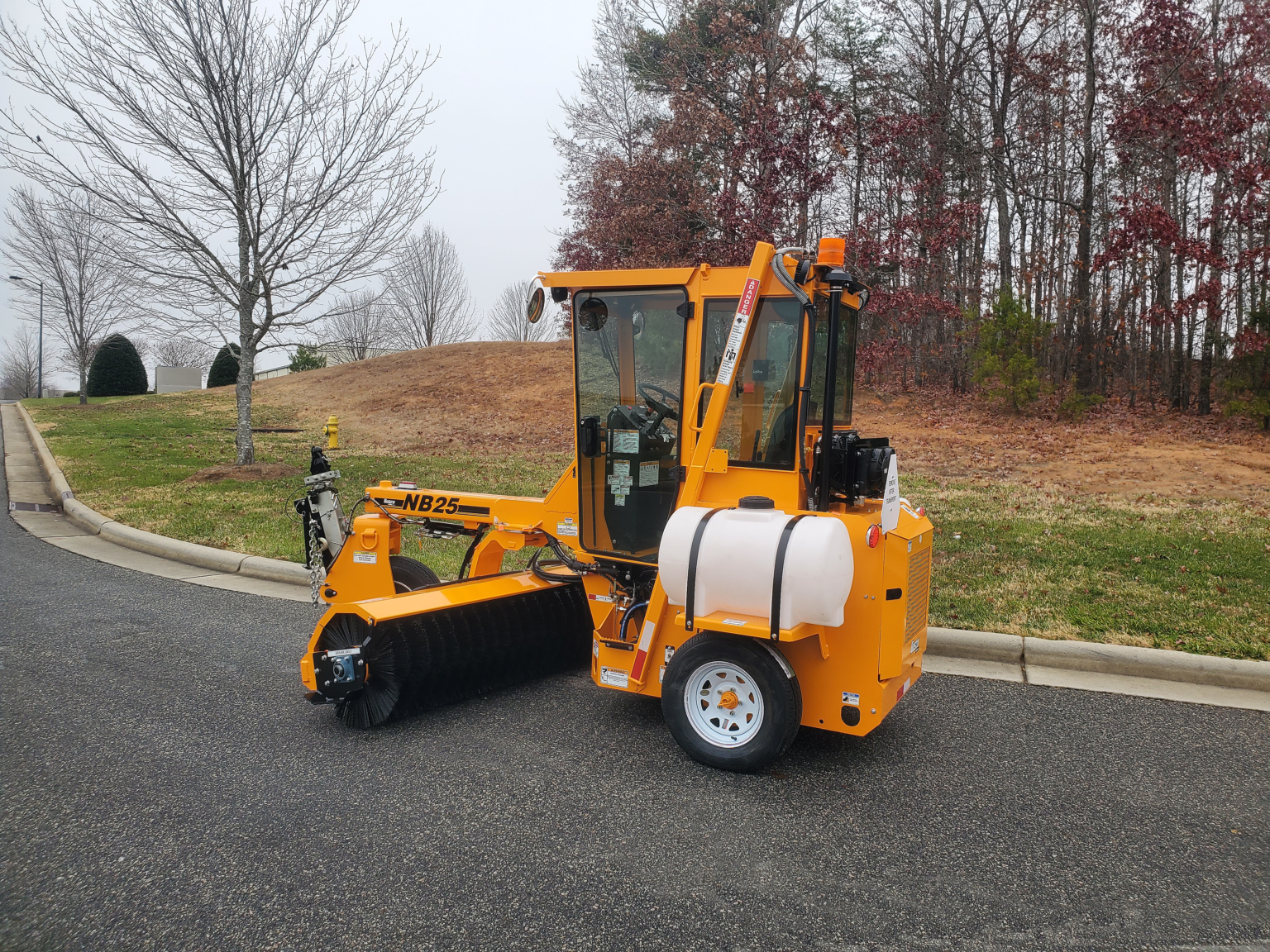

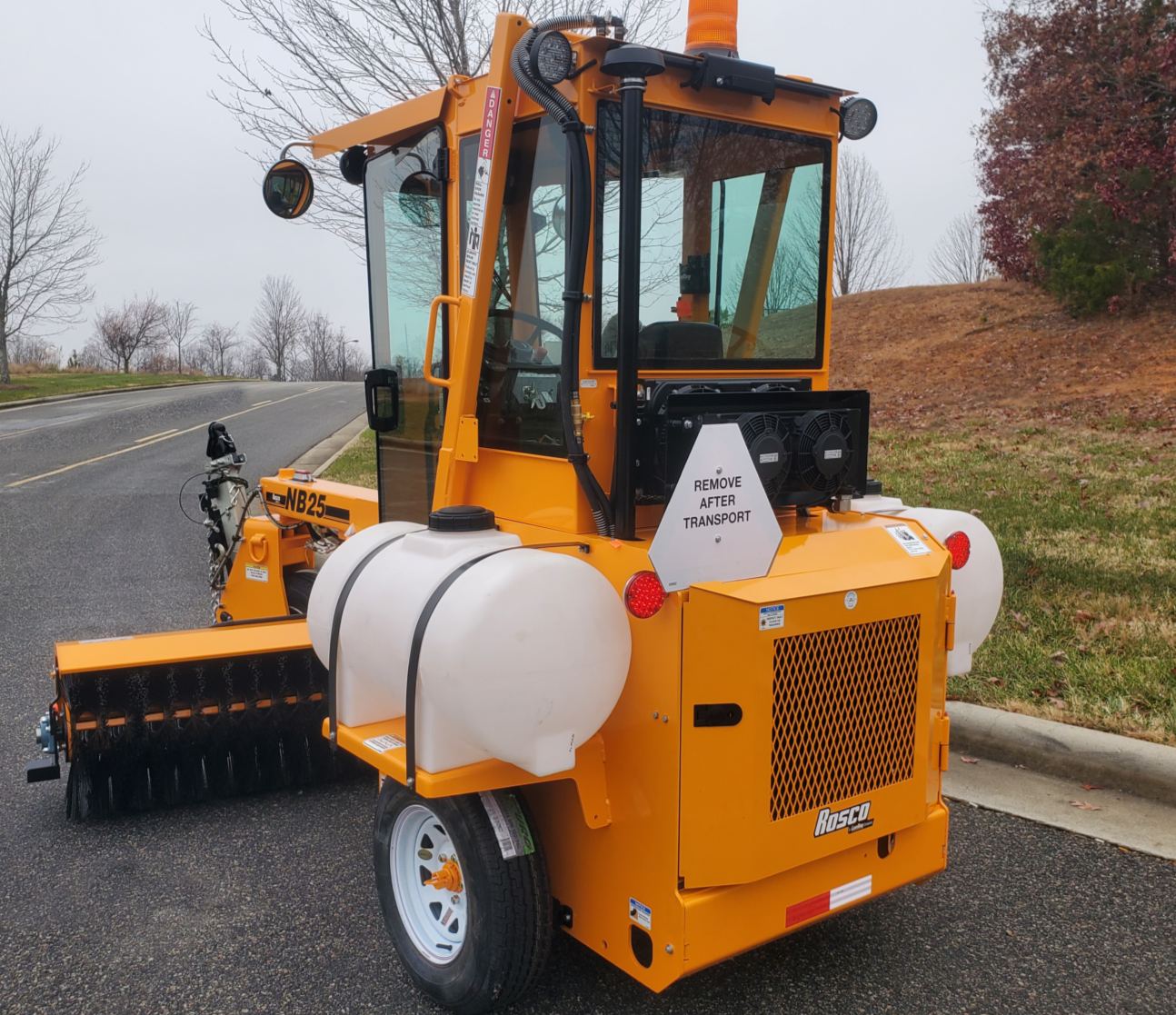

The NB25 is LeeBoy’s 3 Wheeled Self-Propelled Sweeper. This broom is Designed with the Paving Professional in Mind® who is in need of a reliable and quality built 3 wheel sweeper.
The frame is heavy duty, operator area is ergonomically friendly with optional climate controlled cab and the machine is easy to tow, if desired. The NB25 is perfect for the rental industry or general application sweeping for any surface with its heavy duty brush core.
INFORMATION
BRUSH LOCATION
Center-Mount Brush Location
OPTIONAL
25 hp max @ 2,300 rpm, Deutz D2.2 (Cab)
STANDARD
25 hp max @ 2,300 rpm, Kubota V1505-E4B (Canopy)
BRUSH
- Toggle switch controls
- Variable down pressure
- Speed: 180 rpm max, variable by engine speed
- Drive mechanism consists of direct hydraulic motor
- Filler: wafer type. poly, 24″ diameter, 8′ long
- Sweep angle: 50°, left or right
ELECTRICAL SYSTEM
12 volt system, alternator and battery
FUEL RESERVOIR
8 gallons
TURNING CIRCLE
6’ 6” inside rear wheel
TEMPERATURE GAUGE
- 50 - 3000 F (10 - 1490 C)
- Adjustable angle faceplate
LENGTH
- 15’ 1” w/ Trailer hitch down
- 13’ w/ Trailer hitch up
- 12’ 2” w/o Tow package
INSTRUMENTATION
Digital control screen. Review and monitor system vitals including: oil pressure, water temp. voltmeter, tachometer, hour meter, fuel gauge
WHEELBASE
8’ 5”
TRACK WIDTH
4’ 3”
GROUND CLEARANCE
: 7”
TURNING RADIUS
10’ 2” center front wheel
STEERING
- Orbital, hydrostatic type
- Fixed steering column
HYDRAULIC SYSTEM
Two separate circuits, one for travel, one for brush control and power steering
TRANSMISSION
- Hydrostatic foot pedal transmission
- Speed infinitely variable, 0 to 10 mph
- 2 direct drive wheel motors
TOTAL WEIGHT
- 3,050 lbs. w/o water (Canopy) - 3,175 lbs. w/o water (Cab)
- 3,775 lbs. w/ water (Cab)
HEIGHT
- 8’ 1” Beacon flipped down, shipping
- 8’9” Beacon flipped up, operating
WHEELS
- Tires: ST205/75-15R14, load rand C (6 Ply)
- Rim: 3 steel modular, 14 x 6”-5 lug x 4.5”
MAIN FRAME
Heavy duty steel welded construction
WIDTH
- 9’ Brush centered
- 7’7” Brush fully rotated
BRAKES
-Foot operated two-wheel shoe and drum type brakes which also de-stroke the hydrostatic drive -Hand operated parking brake
