Impronta Lift and sliding Duoxima
Lift and sliding Duoxima
LIFT AND SLIDING DUOXIMA

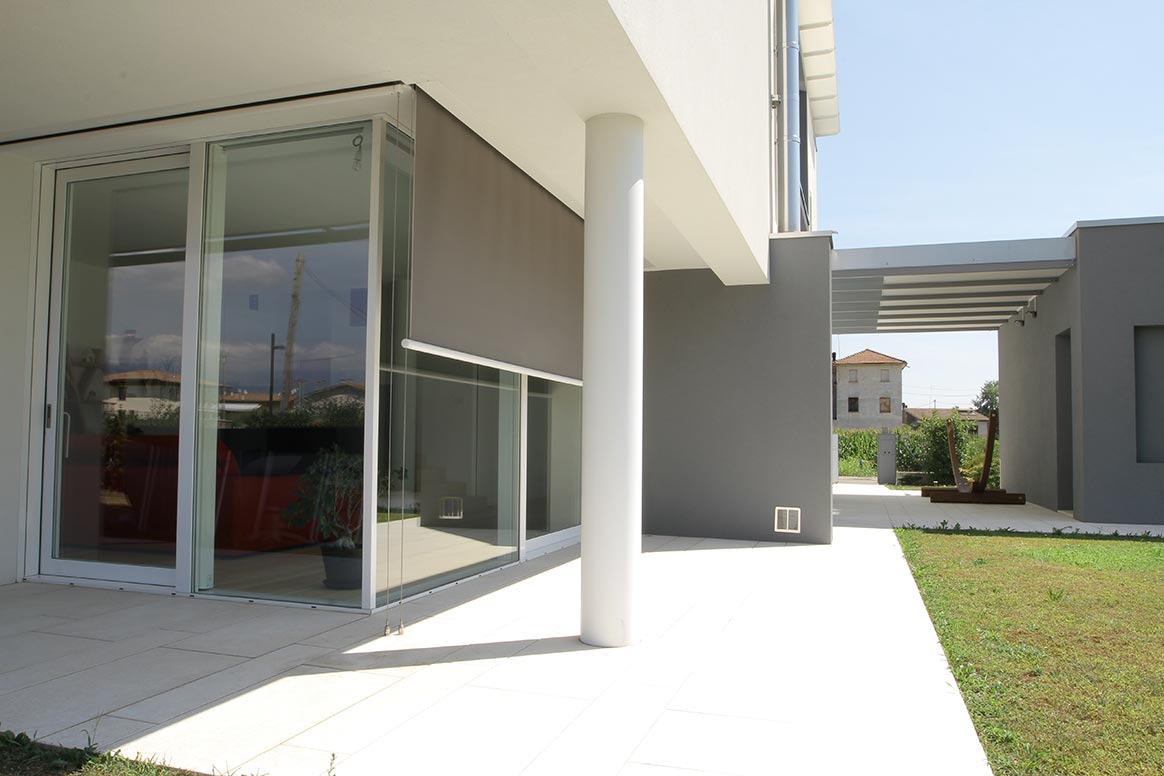

The lift and slide version of Duoxima is the Impronta solution that offers the aesthetics and practicality of wood and aluminum in this modern opening. Perfect for large surfaces, the Duoxima lift and slide is made of laminated wood with external aluminum cladding.
INFORMATION
BRAND
Impronta
PRODUCT TYPE
Windows
PRODUCTION
Made in Italy
THERMAL INSULATION
1.2 W/m²K
AIR PERMEABILITY CLASS (1-4)
Class 4
COLLECTION
Lift
MATERIAL
Wood
CAPACITY
300 kg
TYPE
HSA
ENERGY LABEL
The energy index is based on English window standards. The actual energy consumption for a specific installation depends on the building and climatic conditions.
SOLAR FACTOR
49%
MAINTENANCE
Minimum
DETAIL
The excellent air and water tightness, combined with excellent acoustic and thermal performance, complete the appreciated features of this proposal which is available in many essences like: fir, larch, red grandis, oak, teak, ash.
SOUND INSULATION OF THE GLASS
Up to 45 dB
SAFETY
RC2
LIGHT TRANSMISSION
72%
WOODS
- Oak
-Teak
- Ash
- Spruce
- Larch
- Akoumè
DETAIL
CONSTRUCTION
Corner connection with cylindrical pins and anti-torsion pin Frame section 190x61 mm. Leaf section 81x110 mm.
GLASS
Double glazing 33.1 / 16 / 33.1 low emissivity with argon gas and thermal break spacer channel (Ug = 1.1 W / m2K)..
HARDWARE AND ACCESSORIES
Lift and slide opening with silver hardware with 300 kg capacity and 19 mm lower rail. Predisposition for internal handle and external shell, thermo-acoustic seals. Internal flat cover 95x13 mm and external angular aluminum 40x20 mm.
FINISHING
Water cycle varnish with natural or coloured anti-mold and anti-woodworm impregnating agent, base and finish. The paints used have a low environmental impact. Aluminum cladding fixed to the wooden frame by clips and spaced from the wooden part to allow ventilation and prevent the formation of mold. High resistance thermosetting polyester powder coating.
