Leeboy NV55 Brooms
NV55 BROOMS
NV55 BROOMS
The broom for professionals, the NV55 offers many advantages linked to simple operation and superior sweeping action. The multi-functional joystick control lever combined with fingertip controls provide precision movement during operation.

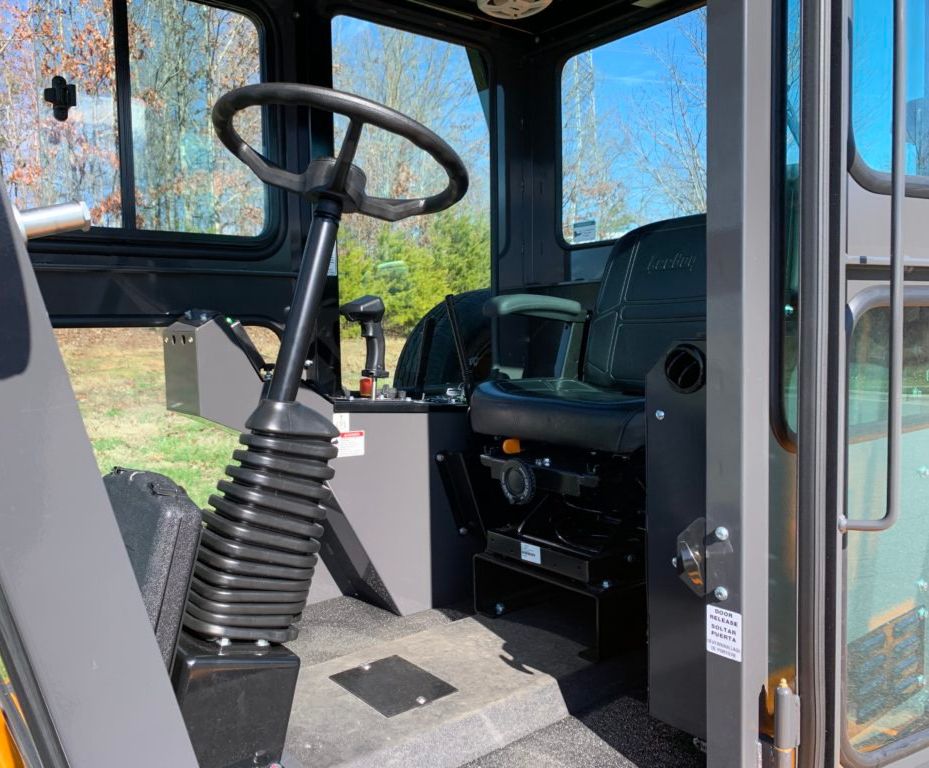

The standard configuration features wrap-around windows that give the operator remarkable visibility while residing in the comfortable fully-enclosed cab. Requiring only one person, the quick-change core system permits the replacement of a brush in minutes limiting downtime.
INFORMATION
BRAND
Leeboy
PRODUCT TYPE
Brooms
SWEEP ANGLE
30⁰, left or right standard (50⁰ w/side shift option)
LIGHT
Two LED head lights, stop, turn, tail, rear working lights and amber strobe light
DIMENSIONS
- Height : 9’ 1”
- Length : 15’ 6”
- Width : 7’ 9” no tilted
WARRANTY
2 Years
PRODUCTION
Made in USA
WHEELBASE
7’ 3”
DOWNLOAD
↓ Brochure
TURNING RADIUS
- Inside : 4’ 2”
- Outside : 13’ 4”
TOTAL WEIGHT
- 5.700 lbs w/o water
- 6.900 lbs w/ water
CAPACITIES
- Fuel : 30 gallons
- Hydraulic reservoir : 25 gallons
BRUSH LOCATION
Front-Mount Brush Location
SPEED
160 rpm max, variable by engine speed
ENGINE
- Hatz diesel
- 74 hp (55 kw)
REAR AXLE
- Oscillating
- Heavy-duty truck type

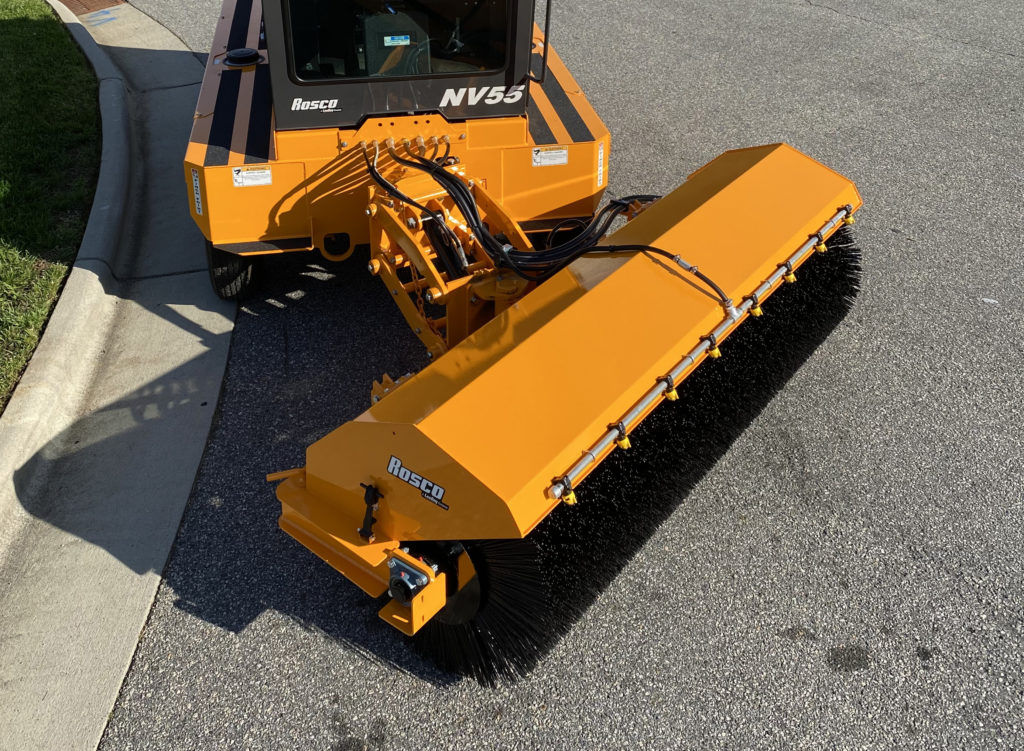

BRUSH
- Joystick control
- Quick change brush system
- Variable down pressure and speed control
- Speed: 160 rpm max, variable by dial or engine speed
- Drive mechanism consists of direct hydraulic motor enclosed in broom core
FRONT AXLE
-Rim : 4 steel disc type, 15 x 6”
-Heavy-duty, limited slip differential
-Tires : ST 225 x 75-15R, load range E
TRANSMISSION
- Hydrostatic drive
- Speed infinitely variable, 0 to 12 mph low 0 to 22 mph high range
INSTRUMENTATION
- PV 380 digital display
- Oil pressure, water temperature, voltmeter, tachometer, hour meter, fuel gauge
ADDITIONAL STANDARD EQUIPMENT
- Horn
- Back-up alarm
- Tilt steering column
- Vandalism package
- Slow-moving vehicle sign
- Fully enclosed cab with ROPS
- Dual West Coast & 2 convex safety mirrors
FILTER
- Poly
- Tube type
- 7’ 6” long
- 32” diameter
HEAVY-DUTY HYDRAULIC SYSTEM
Two separate circuits, one for travel, one for brush control and power steering
BRAKES
- Two wheel wet disk type brakes
- Hand operated parking brake
- Foot operated de-stroke breaking of the hydrostatic drive
SEAT
Suspension seat with armrest and safety belt, sliding window, horn, dome light, defroster fan, 12V outlet, e-stop, cup holder, air conditioner and hearter
OPTIONAL EQUIPMENT
- 7’ 6” poly wafers
- 8’ Poly Wafers
- 8’ Poly Tube Brush
- Engine Block Heater
- Front windshield washer
- Spare tire and mount
- 8’ Poly/Steel Tube Brush
- 8’ Brush Head (in lieu of 7’6”)
- Forward/reverse brush rotation
- 8’ Combination Poly/Steel Wafers
- Rear wiper and washer assembly
- Extended air intake (above cab)
- 7’ 6” Combination poly/steel wafers
- Side shifting brush head, 18” left and right
- Telescoping steering column, tilt is standard
- 7’ 6” Poly/steel tube brush (in lieu of poly tube)
- Radio/Bluetooth with dual speakers and remote
- Back-up/reverse camera with in-cab color display
- Two 75 gallon water tanks with spraying system
- Self-loading brush core system, 32/36 OD, 72- 96” length
- Cab air filtration and pressure monitor system (MERV 16 rated)
- Foot pedal transmission, forward and reverse, in lieu of joystick controls
