Carmix Trailer Pump 15 Pre-mixe
TRAILER PUMP 15 PRE-MIXE
TRAILER PUMP 15 PRE-MIXE
2-cylinder piston pumps, hydraulic driven Ideal for pumping up to 15 m3/h
INFORMATION
DIESEL ENGINE
Yanmar 31HP 3 Cylinders liquid cooled diesel engine
BRAND
Carmix
PRODUCT TYPE
Trailer Pump
VICTAULIC DELIVERY MANIFOLD
4” Victaulic delivery manifold (= 100 mm)
PRODUCTION
Made in Italy
WEIGHT
1550 kg
DIMENSIONS
- Width : 1495 mm
- Length : 4100 mm
- Height : 1540 mm
EASYSPRITZ SYSTEM
EasySpritz system: best pumping performance also at low flow rate
DOWNLOAD
↓ Data Sheet

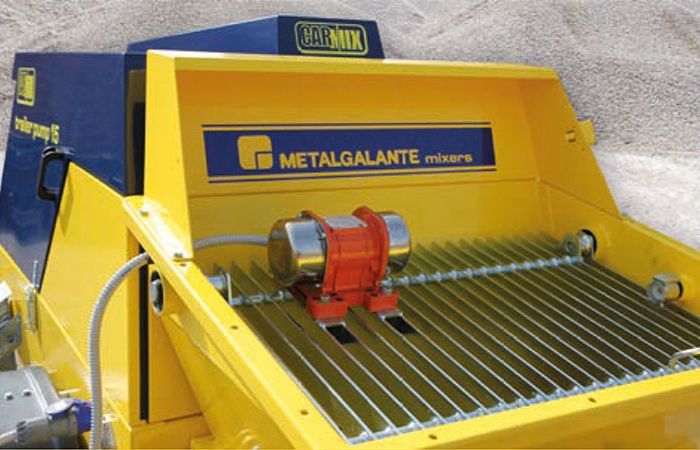

CONCRETE HOPPER
Concrete hopper with agitator
PUMPING UNIT
Pumping unit with S-Tilting valve for automatic compensation of clearance and wear
ACCESSORIES STOWABLE CE KIT - CONCRETE PUMPING KIT:
- 01 Bend top 100 Victaulic
- 12 Victaulic coupling dn 4”
- 15 Gasket for Victaulic coupling dn 4”
- 01 Rubber hose 4” L 3 mt for Victaulic 4”
- 01 Steel bends dn 4” r=250/90° Victaulic
- 02 Steel bends dn 4” r=250/45° Victaulic
- 02 Cleaning ball dor hose diam. 150/200
- 07 Steel pipes dn 4” L 3 mt for Victaulic 4”
- 01 Basket for cleaning ball recovery dn 4” 01 90° bend with ball inlet port
4-FUNCTION
4-Function wire remote control
COMPACT
Compact and easy to move
MAX PUMPING HEIGHT
60-70 m
MAX PUMPING DISTANCE
80-90 m
DETAIL
-2 cylinders piston pump, hydraulic drive -Flow rate upto 15 m 3/h -Max aggregate size 25 mm -Pumping pressure 70 bar
-Hopper capacity 240 liters
ACCESSORIES STOWABLE CE KIT - SHOTCRETING SPRITZBETON KIT
- 01 hanging belt for hose
- 01 Victualic coupling dn 4”
- 03 Victualic coupling dn 2
- 01 gasket for cam coupling dn 50
- 02 cleaning ball for hose dn. 50
- 06 gasket for Victualic coupling dn 2”
- 02 gasket for Victualic coupling dn 4”
- 02 rubber hose dn 50 mm , l. 10 m Victualic 2” – Victualic 2”
- 01 rubber hose dn 50 mm , l. 10 m Victualic 2” – cam dn 50-
- 01 reduction cone dn 100 (4”)-dn 50 (2”)Victualic l = 1000 m
- 01 complete hopper gun dn 50 with fast Geka coupling ¾ “ for air
PANEL
Control panel with electromechanical devices
ROAD-TOWABLE
Road-towable unit complete with parking brake and lights
