Carmix Carmix 45 Fx Self Loading Concrete Mixer Carmix

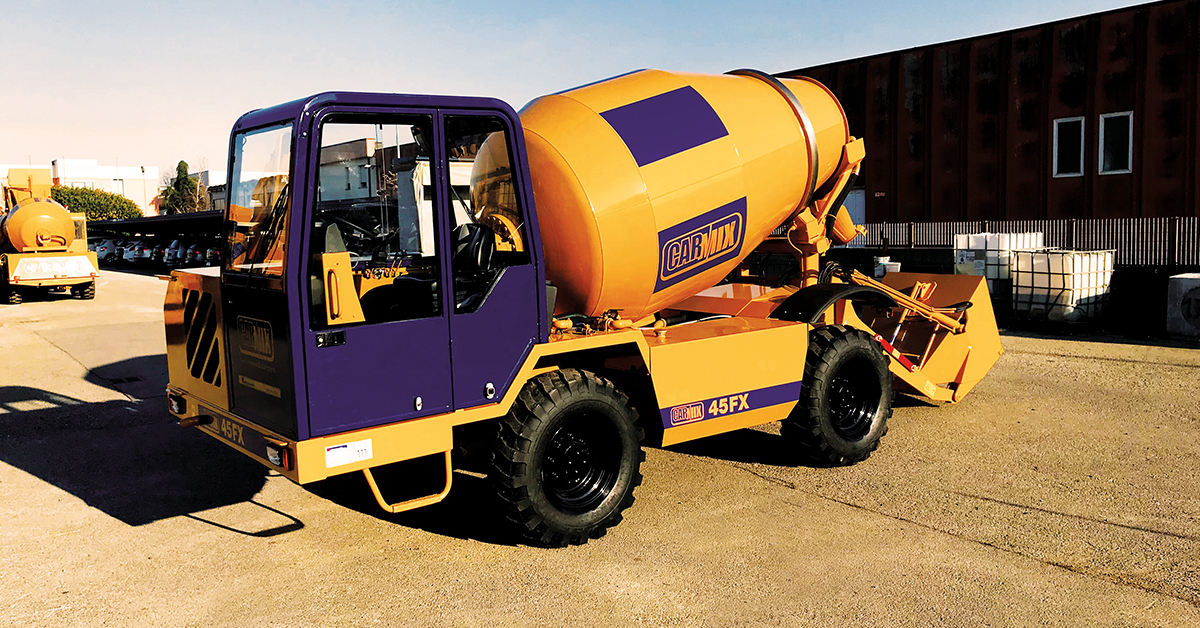

CARMIX 45 FX SELF LOADING CONCRETE MIXER CARMIX
CARMIX 45 FX SELF LOADING CONCRETE MIXER CARMIX
INFORMATION
BRAND
Carmix
PRODUCT TYPE
Concrete Mixer Truck
MIXING UNIT
Drum capacity 6050 liters. Concrete drum output: 4,5 m3 . Double mixing screws, cover for emergency unloading. Drum rotation by hydraulic motor and planetary reducers. Mixing and discharging speed indipendent from r.p.m. of diesel engine. Discharging by reversing drum.
WATER SYSTEM
Self-contained. Hydraulic driven water pump, water meter, washing outlet.
CHUTE
Slewing and hydraulically tilting. 2 extra chutes included.
WEIGHT
In running order Kg. 7000 equally distributed on both axles.
TRANSMISSION
Hydrostatic Bosch-Rexroth. Heavy duty differential axles with planetary reducers. Front axle swinging and steering. Rear axle fixed.
DOWNLOAD
ā Data Sheet
GRADIENT
Fully loaded 30%
HYDRAULIC SYSTEM
3 indipendent circuits. 2 variable outlet pumps for hydrostatic transmission and drum rotation. 1 pump for services. Inlet and outlet filter. Heat exchanger water/oil-air type.
BRAKES
Oil bath disc brakes inside differential axles. Twin indipendent circuits. Negative hydraulic parking brake.
TECHNICAL DRAWING
DRIVING SEAT
ROPS-FOPS canopy. Reversible seat with automatic inversion of hydraulic steering circuit. Closed cabin on request. Air conditioning on request.
CATALOGUE
The machine is equipped with Use and Manteinance and Spare Parts Manuals according to CE regulations.
ELECTRIC SYSTEM
12 Volt. 120 Ah battery for electric starter and road lighting. Safety battery cut-off.
TANKS
Water: 2x590 liters. Diesel: 130 liters. Hydraulic oil: 80 liters.
CHASSIS
Steel profile specially engineered for off-road operations.
SPEED
Working speed from 0 to 10 km/h, road transfer from 0 to 25 km/h. Electric servo control.
SAFETY
Machine equipped with checking and block valves for maximum safety of the operator.
ENGINE
Perkins 1104D - 44TA Turbo-Diesel Tier 3, water-cooled, 4 cylinders Tier 3. Power 83 kW (111 HP) set at 2200 rpm
AXLES
Comer with oil bath disc brakes and planetary reducers.
STEERING
Hydrostatic. 3 wayS steering. Radius: internal mm. 1800 - external mm. 3800
LOADING SHOVEL SELF ARTICULATED
Effective capacity per load 600 liters, complete with hydraulic opening gate.
