Leeboy 8530 Asphalt Pavers
8530 Asphalt Pavers
8530 ASPHALT PAVERS

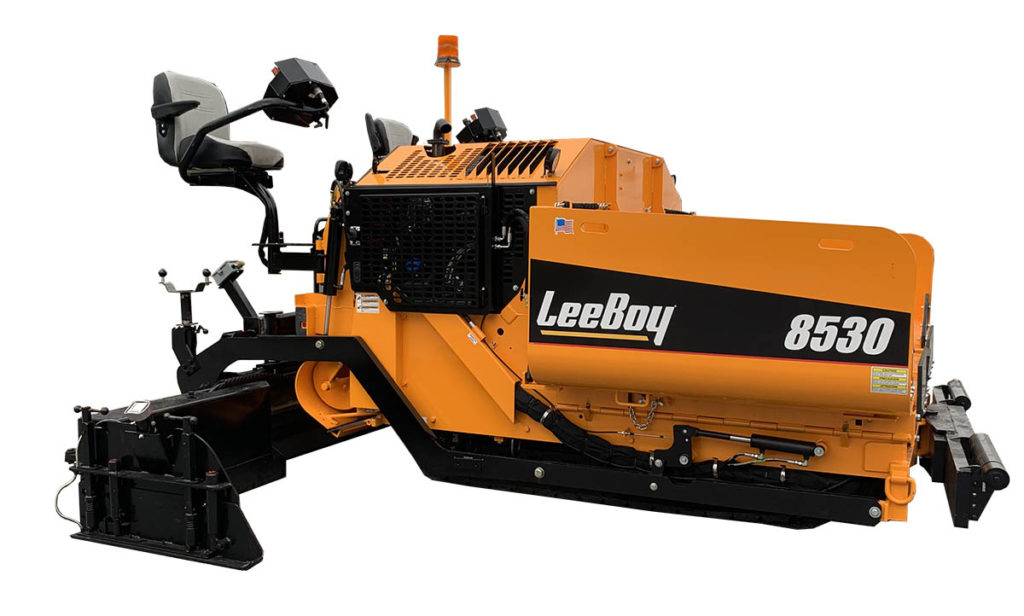

We’ve set the standards in heavy-commercial paving even higher! Equipped with exciting new features that were truly designed with the paving professional in mind, the LeeBoy 8530 is the new benchmark.
Standard machine assets include the 4,150 lbs Legend HD PRO Screed with spring-loaded end gates, front adjustable conveyor chains, pivoting dual seating and controls as well as many other enhancements.
And as always, LeeBoy’s wide slow-moving conveyor system moves material from the truck to the screed without segregation which ensures a flawless mat.
INFORMATION
TOTAL WEIGHT (WITH SCREED)
22.520 lbs
BRAND
Leeboy
PRODUCT TYPE
Machine
PRODUCTION
Made in USA
COLLECTION
8530
ENGINE
-Kubota turbocharged diesel
-Tier 4 Final – 125 HP (93.2 kW)
-Remote mounted DOC + DPF + SCR -MURR I/O distributor blocks with LED lighting
DIMENSIONS
-Length :15’ transport 13’ 4” operating
-Width : 8’ 6 transport 10 hopper wings down
-Height : 6’ 4” with beacon folded down
WASHDOWN TANK
7 Gallons
FUEL
32 Gallons
DOWNLOADS
↓ Manual
↓ Brochure
↓ Line Card
PAVING WIDTHS
Variable up to 15’
HOPPER
Hopper size: 7.5 ton
CAPACITIES
- Fuel : 23 Gallons
- Washdown tank : 7 Gallons
- Hydraulic reservoir : 19 Gallons
DEF TANK
5 Gallons
HYDRAULIC
25 Gallons
PAVING DEPTHS
Variable paving widths up to 15’ 6″
OPERATOR’S PLATFORM
Low Deck : Seat mounted on screed
