Leeboy 695B Motor Graders
695B MOTOR GRADERS
695B MOTOR GRADERS
The 695B provides precise performance and ruggedness in a time-tested design.
Delivering exceptional 360-degree views and heightened visibility to the cutting edge, while operating this motor grader, you will also notice profound performance marked by ergonomic controls, industry-leading hydraulic responsiveness and electronic gauge package.
INFORMATION
BRAND
Leeboy
PRODUCT TYPE
Motor Graders
ENGINE

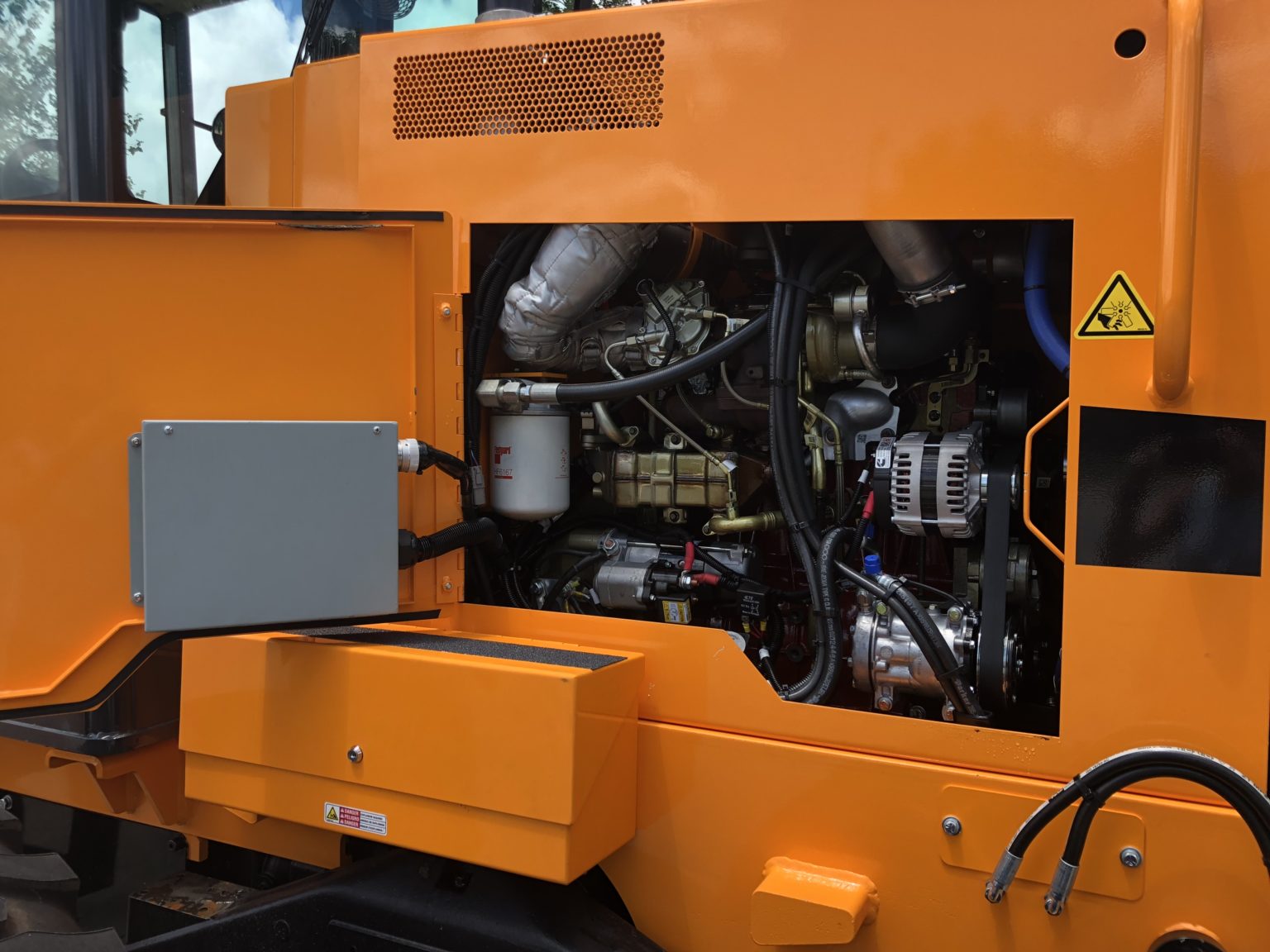

- Tier 4 Final – 130
- Cummins turbocharged diesel
TRACTION DRIVE
- Working range: 0 to 10 mph
- Travel range: 0 to 20 mph
- Hydrostatic drive, 2-speed tandem axle
- Tandems oscillate a minimum of +/- 150
COLLECTION
695B
PRODUCTION
United States
WHEEL BASE
16’ 1”
BASE WEIGHT
16.000 lbs.
DIMENSIONS
- Width : 7’ 8
- Length : 22’ 3”
- Height(w/ cab and beacon) : 10’ 2”
OPERATOR’S STATION
-Fully cushioned, adjustable suspension seat -Adjustable operator’s pedestal -Choice ROPS/FOPS cab or ROPS/FOPS canopy -Cab includes air conditioning, heat, front and rear wiper, washer, defroster and radio/CD with speakers b -Two external convex 7.5” diameter side mirrors, single rear view mirror -Color display with digital readouts: coolant and hydraulic oil temperature, fuel level, volt meter, tachometer, hour meter, DEF level, percent engine load, engine diagnostics.
REAR HITCH
15-ton, heavy-duty, forged rear pintle hitch
CAPACITIES
- Fuel : 45 gallons
- Hydraulic reservoir : 30 gallons
ARTICULATED FRAME
Steel channel, rectangular tubing, articulated 240m in each direction
HEATED AND COOLED CAB
Featuring ten spool fully adjustable controls, the 695B can be used for various grader operations all while remaining in the comfortable pressurized, heated and cooled cab.
ADDITIONAL STANDARD EQUIPMENT
- Horn
- Back-up alarm
- 12V DC power outlet
- Slow moving vehicle sign
- High temperature, low oil pressure shut down
- Mounting provisions for Topcon control system sensors
TIRES
- Six 15 x 19.5, TL, G-2
- 8-ply pneumatic tires
TURNING RADIUS
22’ from center to outside front tire with frame articulated
OPTIONAL EQUIPMENT
- Cold weather engine package.
- 8’ x 16” front blade, inlcudes blade float control.
- Front blade mounted flip-down 4 shank scarifier.
- Back-up/reverse camera with in cab color display.
- Front-mounted V-bar scarifier, includes float control.
- 8’ X 30” front dozer blade, includes blade float control.
- Rear-mounted scarifier, includes 9 ripper shanks with teeth.
- F-N-R pedal.
- Foot throttle.
- 10’ moldboard.
- 12’ moldboard.
- Dead engine steering.
- Topcon ready options.
- All-wheel drive & Circle side shift.
MOLDBOARD
- Tilt: 300
- Rotation : 640
- Penetration : 1’ 2"
- 11’ x 21” x 5/8"
- Ground clearance : 13”
- Side shift: 3’ left or right
PERFORMANCE FEATURES
- 11’ Moldboard.
- Tandem Drive.
- Fail Safe Braking.
- Electronic Gauge Package.
- Vandalism Protection Package.
- Moldboard Shifts 3’ left or right.
- ROPS/FOPS Cab or ROPS/FOPS Canopy.
- Front or Rear Mounted Scarifier Optional.
- Cushioned, Fully Adjustable Suspension Seat
- Hydrostatic Transmission, 2-Speed Tandem Axle.
- 130 hp (97 kw) Cummins Tier 4 Final Diesel Engin.
LIGHTING
- Two rear tail lights, signals
- Amber LED strobe beacon.
- Two rear LED working lights
- Two front LED moldboard lights
- Two front headlights, signals, flashers
BRAKES
- Foot operated primary and service brakes
- Hydrostatic traction drive system includes secondary brakes
- Spring apply, hydraulic release parking brakes automatically apply when ignition is in “off” position or if system pressure is lost.
OPERATOR’S CONTROLS
Industry-standard control levers mounted to an adjustable operator’s pedesta Left and right-hand moldboard lift, front attachment lift, moldboard side shift, circle side shift, moldboard tilt, circle turn, articulation, front wheel lean and rear-mount scarifier control.
