Leeboy 8500e Asphalt Pavers
8500E ASPHALT PAVERS
8500E ASPHALT PAVERS
Boasting of a small footprint yet retaining a 15 foot-wide screed, the LeeBoy 8500E allows for wider and longer pulls than competitive pavers. The new and improved 8500E series paver is equipped for the next generation, with a 71 hp Kubota turbocharged diesel engine: DOC only. No regen required.
This machine is enhanced with 12″ augers, heavy duty radius hopper wings, and more robust hydraulics for cooling and efficiency. The larger fuel tank increases the daily run time. These enhancements make the 8500E more productive than ever, along with less hand work, means the end user minimizes the number of stops which increases productivity and profitability.
INFORMATION
PRODUCTION
Made in USA
ENGINE
Kubota turbocharged diesel, (DOC only) Tier 4 Final – 71 hp (53 kw)
SCREED HEAT
-Two propane burners on main screed - One propane burner in each extension -OPTIONAL – Electric heated
PUSH ROLLERS
-Two rollers with sealed bearings mounted to allow pivoting on frame -Adjustable height push rollers with self-cleaning scrapers
DIMENSIONS
- Length : 12’ 8” transport 13’ 4” operating
- Width : 8’ 6” transport 10’ hopper wings down
- Height : 6’ 4” with beacon folded down
COLLECTION
8500e
HOPPER
Hopper size : 7 ton
PAVING DEPTHS
-Depth: 0” to 6” -Manual flight screws positioned on the screed to control material thickness.
CAPACITIES
- Fuel : 23 gallons
- Hydraulic reservoir : 19 gallons - Washdown tank : 7 gallons
PAVING WIDTHS
Variable up to 15’
OPERATOR’S PLATFORM
Low Deck: Seat mounted on screed
HOPPER
Hopper size: 7.5 ton
SCREED CROWN/VALLEY
-Equipped with a crown/invert adjustment -Includes a levelling indicator for the operator
TRACK DRIVE SYSTEM
- Hydrostatically powered, self-cleaning crawler type
- Track size : 12” wide x 77” long steel
- Paving speed : 0 to 135’ per minute (1.5 mph)
- Travel speed : 0 to 290’ per minute (23.2 mph)

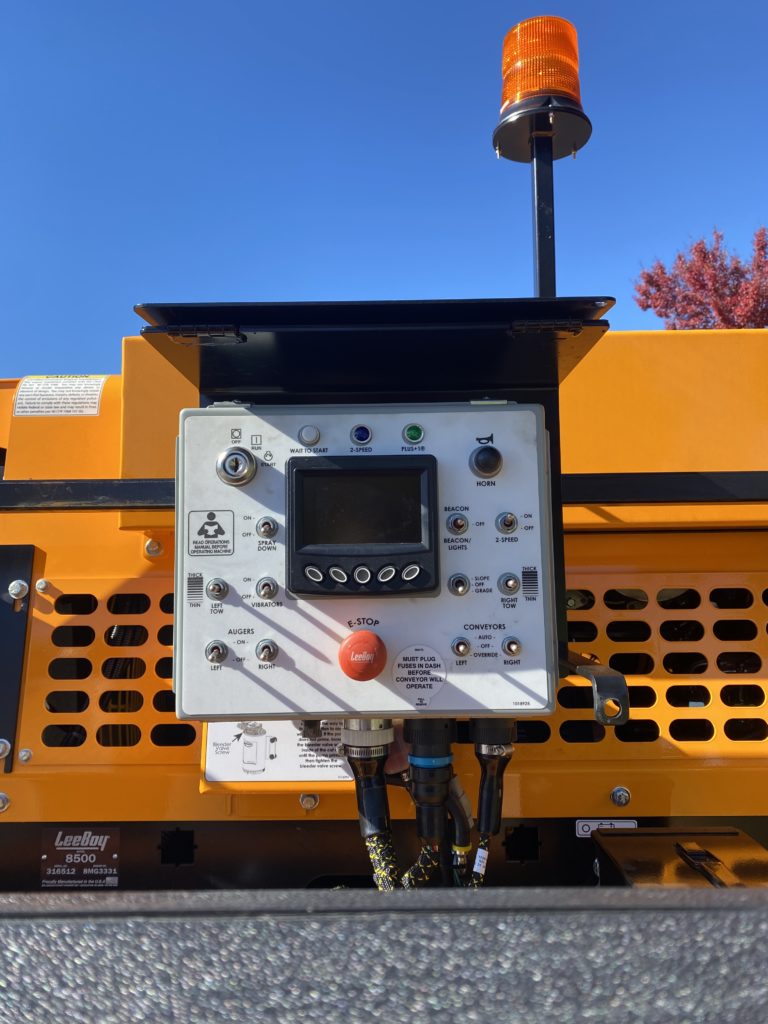

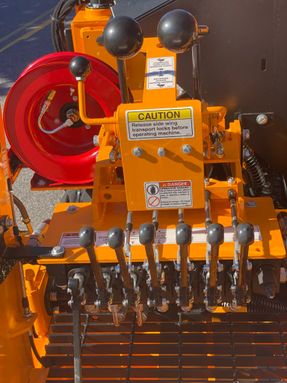

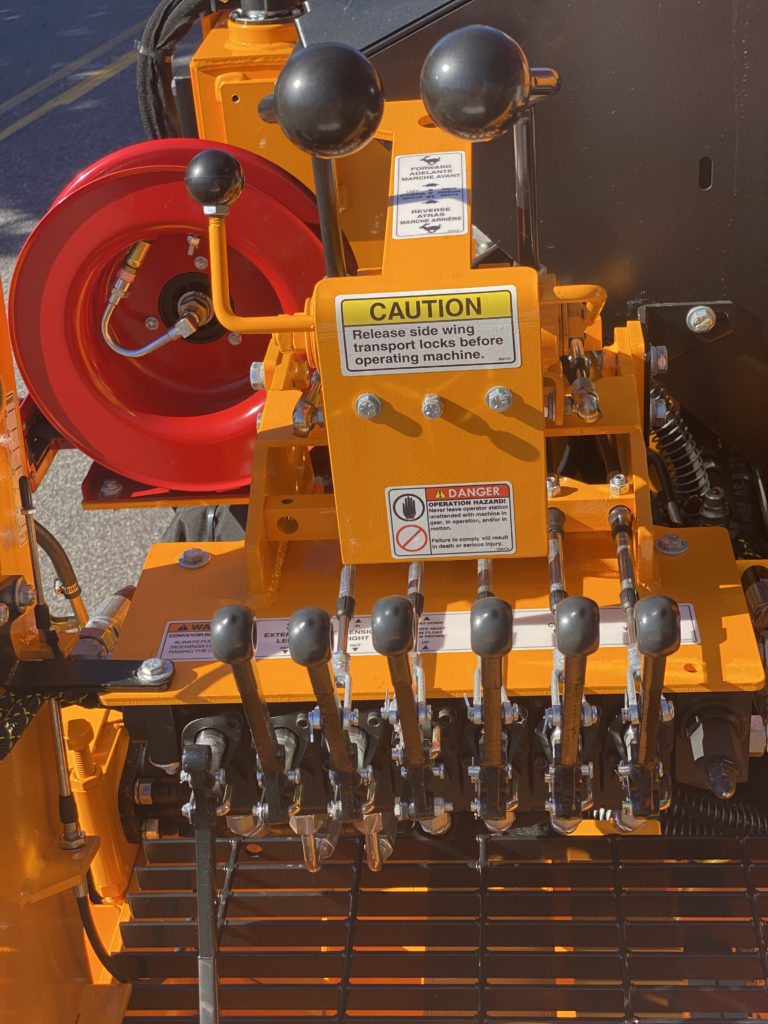

OPERATOR’S CONTROLS
-All functions can be controlled from left side -Right side levers include screed raise/ float, left and right cutoffs, hopper wings, and right
ADDITIONAL STANDARD EQUIPMENT
-Back-up alarm -LED beacon light -LED work light package -Electronic gauge package (oil pressure, voltmeter and fuel) -Glow plugs -Vandalism protection covers -Horn -Wired for sonic auger, sensors and cords
MATERIAL HANDLING
-Two independently controlled, hydraulically operated under augermaterial cutoff -Two variable 12” diameter independent hydraulically operated cast augers
SCREED
-Legend Propane full free floating screed -Consisting of a main screed and two hydraulically operated screed extensions -Equipped with one electric vibrator
MATERIAL HANDLING
-Two independently controlled, hydraulically operated under augermaterial cutoff -Two variable 12” diameter independent hydraulically operated cast augers
TOTAL WEIGHT (WITH SCREED)
18.100 lbs.

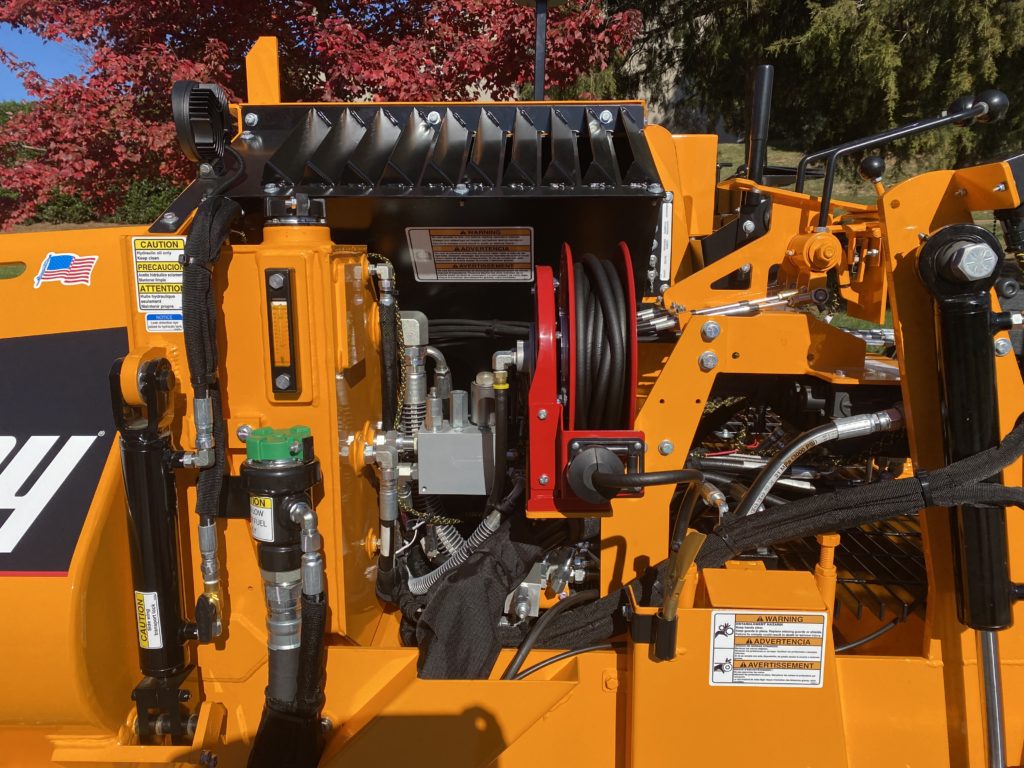

WASHDOWN SYSTEM
Electric HD pump with hoses
STEERING
Independent hydrostatic steering from the left or right side of machine
OPTIONAL EQUIPMENT
- Truck hitch.
- Slope meter.
- Second seat .
- Heated end gates.
- Hose reel, limited to two.
- LED work light package .
- 14” polyurethane pad track.
- Sonic auger, sensors and cords.
- Legend Electric screed 8’ to 15’.
- Electric screws for grade controls.
- Wiring only, grade controls (TopCon) .
- Sonic grade controls, one side (TopCon).
- Rubber track 15.75” wide continuous in lieu of steel.
- Dual grade controls (TopCon), includes electric screws .
