Anaunia Pml Light Movable Partition Walls
PML LIGHT MOVABLE PARTITION WALLS
PML LIGHT MOVABLE PARTITION WALLS
Finally an innovative solution that reflects the contemporary lifestyle. Anaunia has invented residential movable partition walls.
The compact area of an apartment becomes flexible thanks to movable partition walls which allow for different ways of living available space. This will give further options to architects and interior designers, enabling them to project and create an intelligent new contemporary luxury.
INFORMATION
BRAND
Anaunia
PRODUCT TYPE
Movable Walls
EXPANSION OF SIDE COMPENSATING BORDER
100 mm
USE
Indoor
COLLECTION
PML
CLASS OF EMISSION OF FORMALDEHYDE
E1
HIGH ACOUSTIC STANDARDS
Up to rw = 41 db. Accredited by accredia - istituto giordano
PRODUCTION
Made in Italy
STRUCTURAL STABILITY
Free standing non load-bearing wall
WALLS ADAPTING DURING INSTALLATION
- Height : ±5 mm
- Width : ±10 mm
DOWNLOADS
↓ Catalog
↓ Specification
↓ Technical details pdf
↓ Technical drawings pdf
↓ Storage and Guide fixing systems
TYPE OF GUIDE
Natural Anodized Aluminum
EXCELLENT THERMAL INSULATION
Heat up only spaces you use
RECYCLABLE
Ecological and recyclable materials
FIRE REACTION
Approved in Fire Reaction Class 1 (one)
ELEMENT WIDTH
- PS door element : 1100 mm
- S standard/TC telescopic : From 700 mm to 1200 mm
ELEMENT HEIGHT
- PS door element : Min 2600 mm
- S standard/TC telescopic : Max 3000 mm
OPERATING SYSTEM
-S standard : Rototranslating mechanism
-TC telescopic/PS door element : Operating system operating system with 1400 n spring
ELEMENT OPERATING SYSTEM
Manual
FRAME
Profiles in natural anodized aluminum
SURFACE FINISHING
Laminate hpl 0,9 mm thick, cpl 0,4 mm thick, melamine, suitable for eventual painting, wood veneers, ral coloured or transparent lacquered, leather, fabric, moquette
PANELS
Chipboard panel: ce 1121 cpd bb-0001 en 13986 p2 class e1, density 750 kg/mc, thickness 16 mm reaction to fire: class b-s1, d0
ELEMENT THICKNESS WITH HIDDEN PROFILE
70 mm
EXPANSION OF LOWER/UPPER COMPENSATING BORDER
20 mm
TECHNICAL DRAWINGS
ALL DRAWINGS

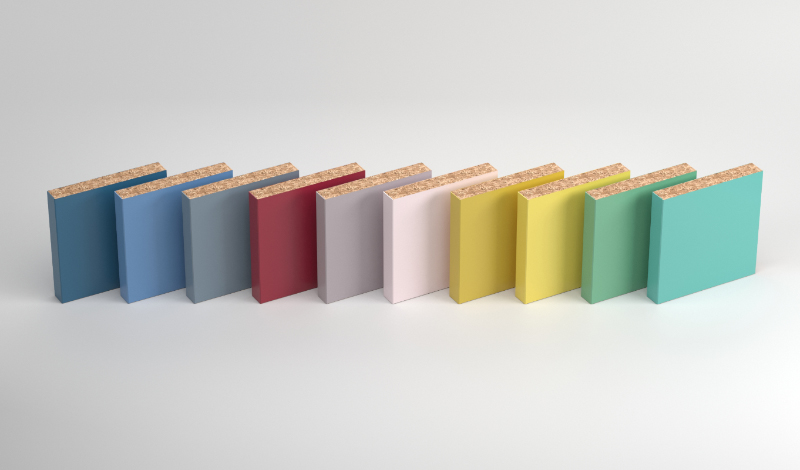

FINISHES
FINISHES
-HPL Metal Series thickness 0,9 - 1 mm finish Varie -Digital printing on laminate -CPL Grey RAL 7035 - Ivory RAL 9001 - White RAL 9010 -HPL Colours Series thickness 0,9 mm finish Sei -HPL Polaris Series thickness 0,9 mm finish Polaris -HPL Wood Series thickness 0,9 mm finish Various
