Knauf Ceiling Solutions Armstrong MetalWorks Lay-In Metal Ceiling Tile
ARMSTRONG METALWORKS LAY-IN METAL CEILING TILE
ARMSTRONG METALWORKS LAY-IN METAL CEILING TILE

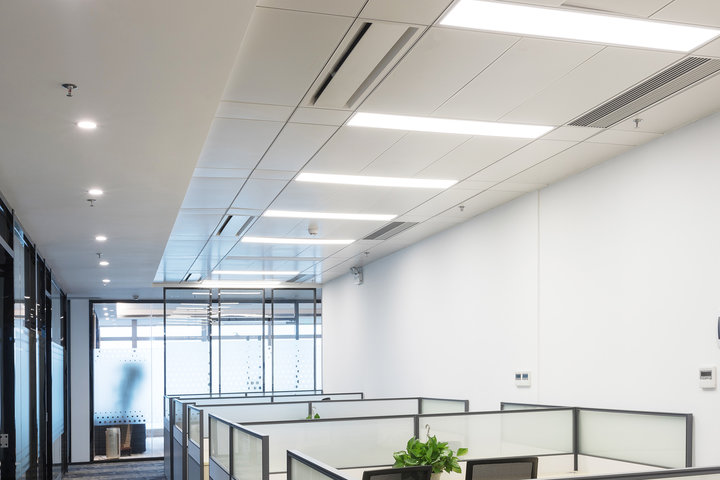

Armstrong MetalWorks Lay-In is a modular metal ceiling system. It provides a contemporary look and offers easy accessibility to plenum space.
INFORMATION
BRAND
Knauf Ceiling Solutions
PRODUCT TYPE
Ceiling Tile
COLLECTION
Armstrong
PRODUCTION
Made in Italy
GALVANISED STEEL
- 600 x 600 x 0.5 mm
- 600 x 1200 x 0.5 mm
- 300 x 1200 x 0.5 mm
PERFORMANCE
Good acoustic performance
SOUND ABSORPTION
NRC 0.70
ALUMINIUM
- 600 x 600 x 0.7 mm
- 600 x 1200 x 0.7 mm
- 300 x 1200 x 0.7 5mm.
SURFACE FIINISH
Post coating/Pre-coating
CLEANING
- Dry Cloth
- Moist Cloth & Damp Sponge
DOWNLOADS
↓ Data Sheet
↓ Warranty
↓ Mainline Brochure
FURTHER FEATURES
- Office
- Retail
- Foyers
- Education
- Transport
- Corridors
- Healthcare
WARRANTY
(10) years limited warranty
WEIGHT
Galvanised Steel : 3.92 Kg/M2 Aluminium ; 2.08 Kg/M2
TECHNICAL FEATURES
-Cost effective -Contemporary appearance -Standard grid systems, Simple accessibility -Available with 15mm & 24mm grid visual - Simple accessibility to plenum -Good acoustical performance
INSTALLATION AND ASSEMBLY DETAIL
MATERIAL
Hot dip Galvanised Steel/ Aluminium
THICKNESS
- Galvanised Steel : - 0.5mm
- Aluminium - 0.7mm
RECOMMENDED SUSPENSION SYSTEM
Prelude 24mm exposed tee grid system Suprafine 15mm exposed tee grid system
DESIGN CONSIDERATION
To avoid paint/surface damages take special care while handling installation of the product.
FIRE REACTION
MetalWorks GI & AL metal ceilings : Class 0 / Class 1, BS 476, Part 6 & 7
LIGHT REFLECTANCE
| PATTERN | GLOBAL WHITE | RAL 9010 |
|---|---|---|
| Plain (unperforated) | 77% | 87% |
| Microperforated with black acoustic fleece | 63% | 71% |
| Standardperforated with black acoustic fleece | 68% | 75% |
MATERIAL & OPTIONS
MATERIALS & OPTIONS
OPTIONAL COLOURS
