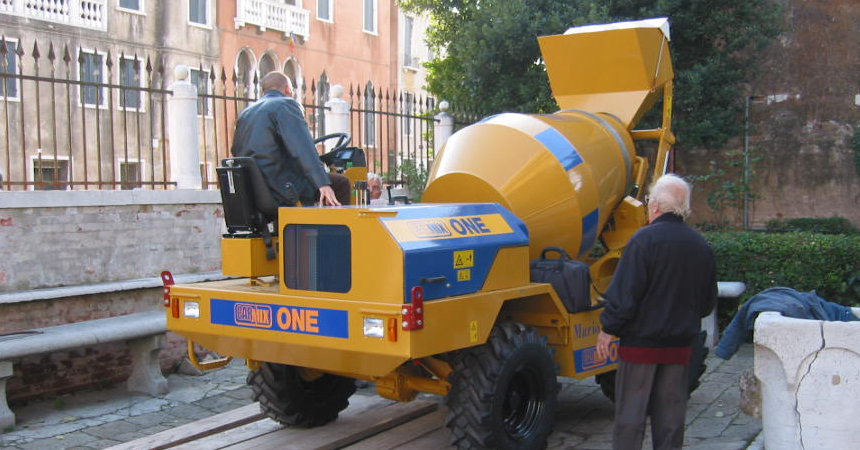

Small Concrete Mixer 4×4
Small concrete mixer 4×4 with 1.400 litre drum (308 gal UK – 370 gal US), 180 litre (39 gal UK – 47 gal US) shovel articulated chassis.
The Carmix ONE mobile concrete mixer works with an operating speed from 0 to 4,35 mph and a road transfer speed from 0 to 8,7 mph. A very handy self loading concrete mixer with reversible driving seat and chassis in steel profile engineered for off road operations and every kind of ground.
INFORMATION
ENGINE
Perkins 403 D-15T Turbo-Diesel, watercooled, 3 cylinders. Power KW 29 (39 HP) set at 2.800 rpm. Electric starter.
DRIVING SEAT
Reversible seat with automatic inversion of hydraulic steering circuit. ROPS-FOPS (UNI 11023) Canopy.
BRAND
Carmix
PRODUCT TYPE
Concrete Mixer Truck
ELECTRIC SYSTEM
12 Volt. 80 Ah battery for electric starter and road lighting. Safety battery cut-off.
BRAKES
Disc brakes. Twin indipendent circuits for parking and emergency. Mechanical parking brake acting on rear axle.
TANKS
- Water : 310 liters.
- Diesel : 35 liters.
- Hydraulic oil : 25 liters.
STEERING
Hydrostatic. 3 ways steering. Radius
- Internal : 2700 mm
- External :4600.. mm
CHUTE
Slewing and manually tilting. 2 extra chutes included.
WEIGHT
About Kg. 2.800 equally distributed on both axles.
TRANSMISSION
Hydrostatic. A variable outlet pump drives the hydraulic two speed motor connected to the differential through two speed reducers. 4 wheel drive
WATER SYSTEM
Self-contained. Hydraulic driven water pump, water meter, washing outlet.
CHASSIS
Articulated steel profile specially enginereed for off-road operations.
GRADIENT
Fully loaded 30%.
DOWNLOAD
↓ Data Sheet
MIXING UNIT
Drum capacity 1400 liters. Concrete drum output: 1 m3 . EN 206-1 IN SLUMP S1 Class, yield not vibrated. Double mixing screws. Cover for emergency unloading. Drum rotation by hydraulic motor and planetary reducers. Mixing and discharging speed indipendent from r.p.m. of diesel engine. Quick discarge by drum tilting.
LOADING SHOVEL
Effective capacity 180 liters
TYRES
Off road industrial type 11,5/80 - 15,3 PR 10
SPEED
Working speed from 0 to 7 km/h, road transfer from 0 to 14 km/h. Electric servo control.
CATALOGUE
The machine is equipped with Use and Manteinance and Spare Parts Manuals according to CE regulations.
TECHNICAL DRAWING
HYDRAULIC SYSTEM
3 Circuits. Variable outlet pumps for hydrostatic transmission and drum rotation. Gear pumps for services and steering. Heat exchanger type water/oil-air.
