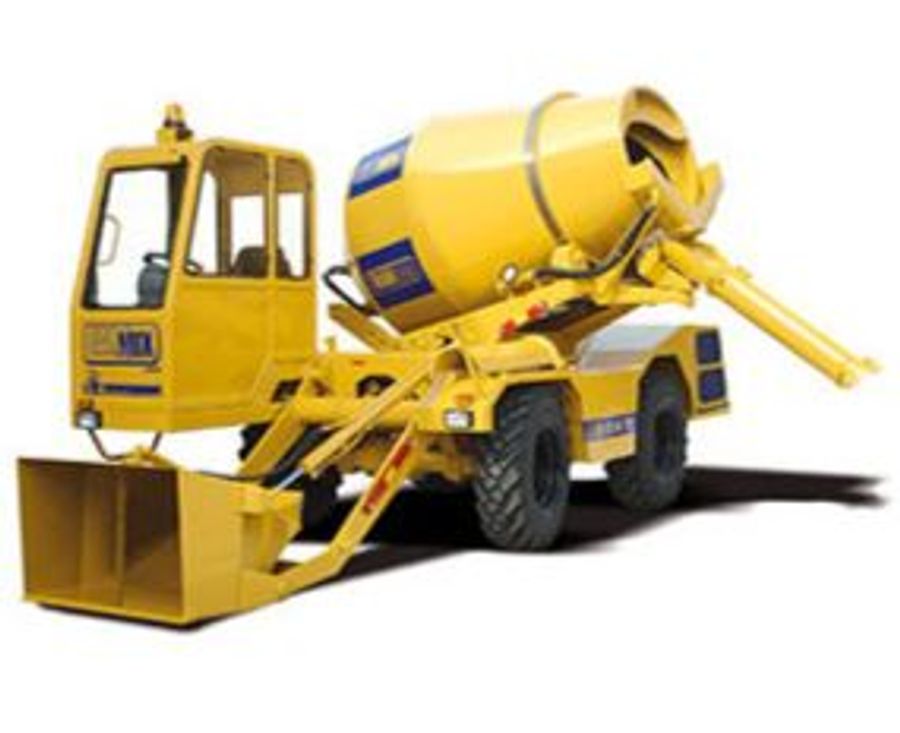

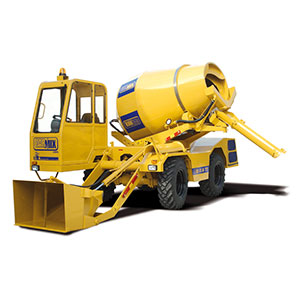

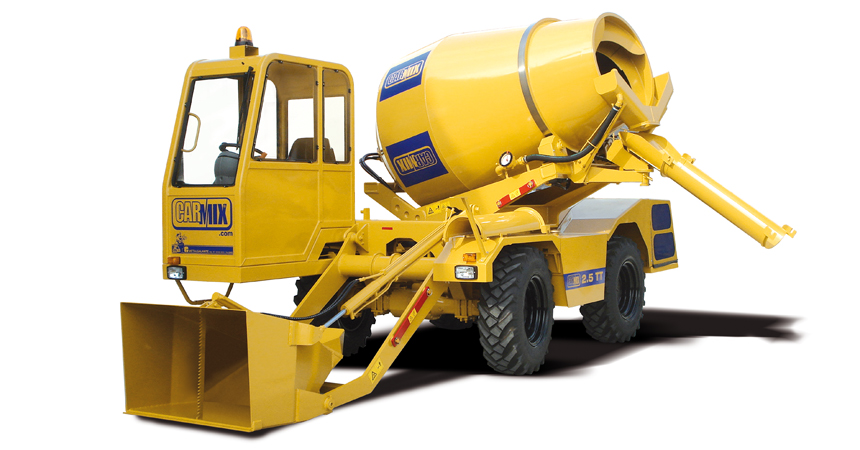

Mobile Concrete Mixer 4×4
Off road mobile concrete batching plant with 3.400 litre drum (748 gal UK – 911 gal US), 400 litre shovel (88 gal UK – 105 gal US), equipped with hydraulic opening gate for hopper discharge and an operating speed from 0 to 9 km/h (0 – 5,59 mph) and road transfer speed from 0 to 25 km/h (0 – 15,53 mph) with electric servo-control.
The Carmix 2.5 TT self loading concrete mixer has a comfortable and safety front cab on side of loading shovel: the mixer machine is equipped with checking and block valves for maximum safety of the operator.
INFORMATION
BRAND
Carmix
PRODUCT TYPE
Concrete Mixer Truck
ENGINE
Perkins 1104D-44T Turbo-Diesel Tier 3, watercooled, 4 cylinders. Rated power KW 62,5 (84 HP) set at 2.200 rpm. Engine mounted transversal on the rear.
TRANSMISSION
Hydrostatic Bosch Rexroth. Pump and motor are connected to the differentials through a 2 speed reducer (working and transfer). 4 wheel drive and steering.
STEERING
Hydrostatic. 3 ways steering. Radius
- Internal : 1500 mm
- External : 3500. mm
DOWNLOAD
↓ Data Sheet
GRADIENT
Fully loaded 30%.
ELECTRIC SYSTEM
12 Volt. 120 Ah battery for electric starter and road lighting. Safety battery cut-off.
TANKS
- Water : 2x270 liters.
- Diesel : 105 liters.
- Hydraulic oil : 80 lite
CHASSIS
Steel profile specially engineered for off-road operations.
WEIGHT
About Kg. 6.000. Equally distributed on both axles
BRAKES
Oil bath disc brakes inside differential axles. Twin indipendent circuits. Negative hydraulic parking brake.
CHUTE
Slewing and hydraulically tilting. Fitted with two pins easily detachable to increase the discharge height. 2 extra chutes included.
WATER SYSTEM
Self-contained. Hydraulic driven water pump 400 lt/min, water meter, washing outlet. High pressure water pump (on request).
SAFETY
Machine equipped with checking and block valves for maximum safety of the operator. Self control avoids drum to slew if shovel’s arm is lifted.
AXLES
Dana Spicer with oil bath disc brakes and planetary reducers.
TYRES
Off road industrial type 12.5-20 PR 12.
CATALOGUE
The machine is equipped with Use and Manteinance and Spare Parts Manuals according to CE regulations.
JOYMIX
All hydraulic functions of shovel controlled by a single - fully servo controlled Joystick.
SPEED
Working speed from 0 to 9 km/h, road transfer from 0 to 25 km/h. Electric servo control.
MIXING UNIT
Drum capacity 3.450 liters. Concrete drum output: 2,5 m3 . EN 206-1 IN SLUMP S1 Class, yield not vibrated. Double mixing screws, cover for emergency unloading. Drum rotation by hydraulic motor and planetary reducers. Mixing and discharging speed indipendent from r.p.m. of diesel engine. Discharging by reversing drum. The mixing unit is slewing hydraulically through 270° for high discharge at 1,9 m on the four sides of the vehicle.
LOADING SHOVEL SELF ARTICULATED
Effective capacity per load 400 liters, complete with hydraulic opening gat
WEIGHING
Electronic system. “Load cells” acting on the drum, display and printer in the cab. (on request)
HYDRAULIC SYSTEM
Three circuits. 2 variable outlet pumps for hydrostatic transmission and drum rotation. 2 gear pumps for services. Inlet and outlet filter. Heat exchanger water/oil-air type.
CABIN
Front cab on side of loading shovel. ROPS-FOPS (UNI 11023) type complete with double closing door. Clima, air conditioning heater available upon request.

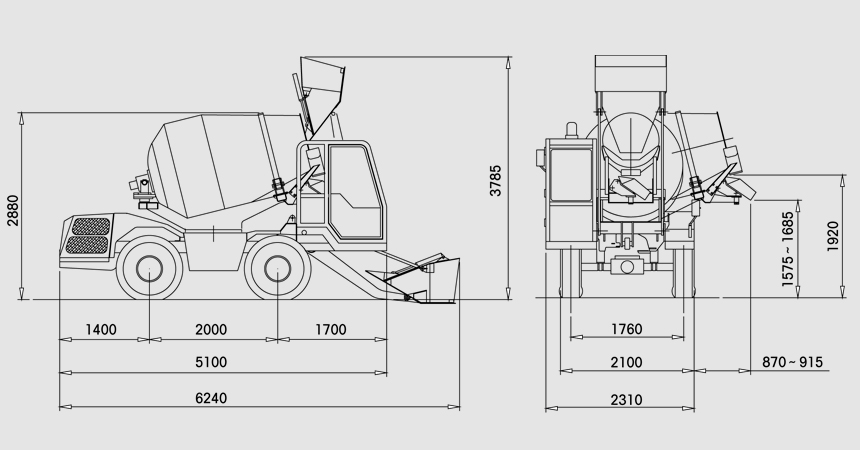

TECHNICAL DRAWING
