8608 ASPHALT PAVERS
8608 ASPHALT PAVERS
The new 8608 asphalt paver is equipped with an efficient narrow conveyor material management system along with our Oscillating bogie style, B1 smooth ride poly track system.
This allows the paver to drive over base imperfections and other obstacles that may be encountered without altering the depth of the mat. This asphalt paver is powered by a 125HP Kubota Tier 4 engine including a lowered SCR, exhaust, and flat hood for enhanced operator visibility and access.
The 8608 is equipped with a 14.4 kw belt driven generator. This model includes operator friendly toggle switch controls Leeboy operators are familiar with. The operator’s platform is equipped with the choice of high or low deck controls with electronic steering. Designed with the paving professional in mind, this heavy commercial paver is guaranteed to impress.
INFORMATION
BRAND
Leeboy
PRODUCT TYPE
Asphalt Pavers
ENGINE
- Kubota turbocharged diesel
- Tier 4 Final – 125 hp (93 kw)
OPERATOR’S PLATFORM
- Full machine width platform
- Walkboard extensions slide out, left and right
PAVING DEPTHS
-Depth : 0” to 6” -Manual flight screws positioned on the screed to control material thickness

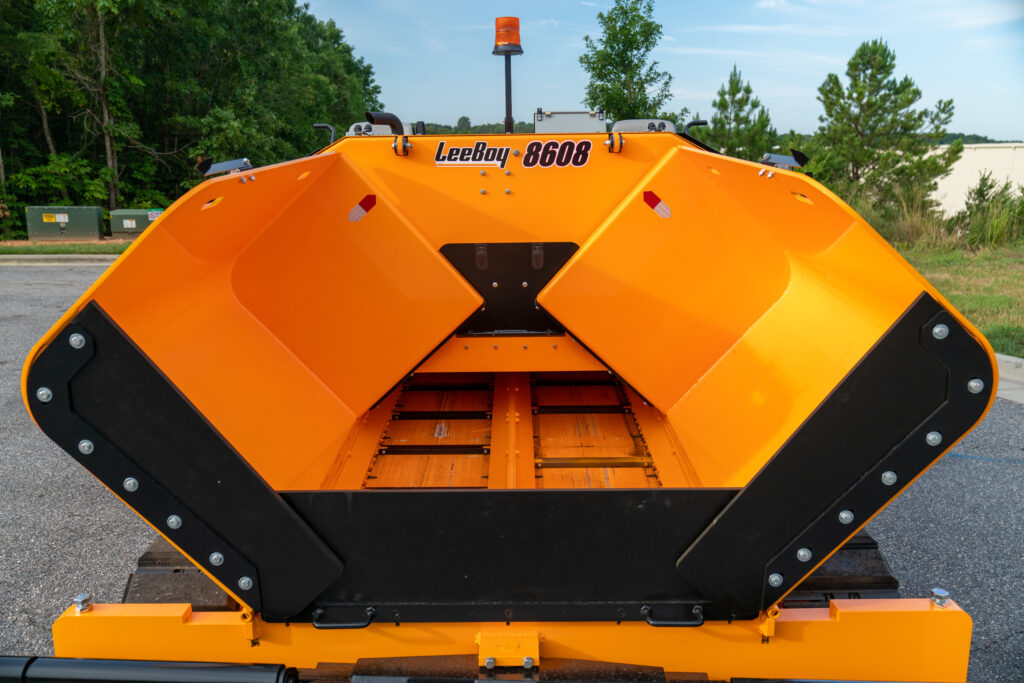

HOPPER SIZE
9 ton
PAVING WIDTHS
Variable up to 15
CAPACITIES
- Fuel : 32 gallons
- DEF tank : 5 gallons
- Washdown tank : 7 gallons
- Hydraulic reservoir : 25 gallons
WARRANTY
2 Years
PRODUCTION
Made in USA
DIMENSIONS
- Height : 6’ 10” high deck
- Length : 15’ 3” | 14’ 3” transport
- Width : 8’ 6” transport 10’ hopper wings down
OPERATOR’S CONTROLS
-Each side of the screed has independent control box -All control switches are in a single control box which can be moved from right side to left side
SCREED
-Legend HD Screed -Consisting of a main screed and two hydraulically operated screed extensions -Equipped with two electric vibrators, 4100 RPM
TOTAL WEIGHT
21.920 lbs.
DOWNLOAD
↓ Brochure
SCREED CROWN/VALLEY
- Equipped with a crown/invert adjustment
- Includes a levelling indicator for the operator
PUSH ROLLERS
- Vertically adjustable oscillating push rollers
- Two rollers with sealed bearings mounted to allow pivoting on frame
STEERING
-Dual electronic steering controls -Electronically controlled pumps operated by the forward/reverse joysticks
TRACK DRIVE SYSTEM
-Track size : 14” w x 94” long poly -Paving speed : 0 to 164 fpm (1.84 mph) -Travel speed : 0 to 316 fpm (3.59 mph) -Hydrostatically powered, self-cleaning crawler type -Oscillating Bogie Style, B1 Smooth Poly Pad Track System
PERFORMANCE FEATURES
- Dual Electronic Steering
- Large Access Service Doors
- Automatic RPM Control System
- Toggle Switch Functional Controls
- 125 HP (93 kw) Kubota Tier 4 Final Diesel Engine
- Actuator Driven Hood Lift to Aid in Maintenance
- Low Profile-SCR & Exhaust for Enhanced Visibility
- Electric Screed Heat, 14.4 KW Belt-Driven Generator
- Efficent Narrow Conveyor Material Management System
- LeOscillating Bogie Style, B1 Smooth Poly Pad Track System
- Operator’s Choice of High or Low Deck Configuration
WASHDOWN SYSTEM
Electric HD pump with hose and two hose reels
BERM EXTENSION
12” x 4.5” berm extension, left & right
MATERIAL HANDLING
- Highway class HD conveyor chains and flight bars
- Two 12” independent hydraulically operated cast augers
- Two hydraulically operated under auger material cutoffs
SCREED HEAT
- Legend electric screed heat, 14.4 kw generator
- Electric timer and automatic RPM control system
- Environmentally safe, sealed-s-curve elements in main screed and sealed blade-style elements in extensions
ADDITIONAL STANDARD EQUIPMENT
- Back-up alarm
- Gauge package
- LED beacon light
- LED work light package
- Vandalism protection cover
OPTIONAL EQUIPMENT
- Sloping screed extensions
- Screed extension vibration
- Single point lube system, screed
- Variable paving width up to 15’ 6”
- Legend HD PRO Screed, Weight 4.150
- Wiring only, grade controls (TopCon)
- Sonic grade control, one side (TopCon)
- Automatic screed temperature control
- Steering wheel drive controls, in lieu of joysticks
- Truck hitch
- Slope meter
- Power crown
- Heated endgates
- Horizontal flight screws
- 3:1 flight screw adjusters
- Other options available
- Dual grade control (TopCon)
- Dual grade and slope (TopCon)
