Nelskamp Sigma Roof Tile
SIGMA ROOF TILE
SIGMA ROOF TILE

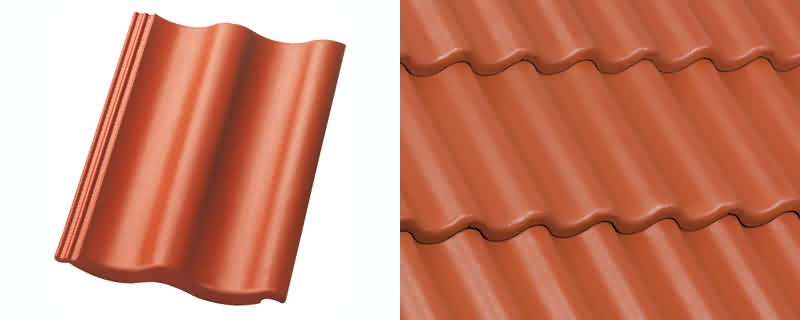

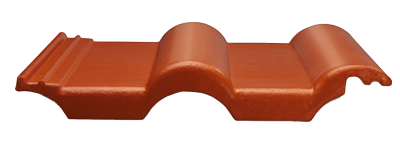

The Sigma tile brings momentum to the roof landscape. The symmetrically curved form creates dynamic-looking rooftops, while its rounded cut edge offers greater storm safety. The "EasyLife" version is around a third lighter, particularly easy to install and also suitable for statically weak roof trusses.
INFORMATION
TILES PER SQM
Approx.10 pcs.
BRAND
Nelskamp
PRODUCT TYPE
Roof Tiles
TOTAL LENGTH
42.0 cm
TILLING WIDTH
30.0 cm
WEIGHT PER TILE (STANDARD)
4.1 kg
TILLING LENGTH
31.4 - 34.5 cm
WEIGHT PER TILE (EASYLIFE)
3.0 kg
LONGLIFE CONCRETE ROOF TILES WITH HIGH COLOUR FASTNESS AND SELF-CLEANING EFFECT
Smooth – including the exposed edge: The fine surface of LONGLIFE roof tiles opens up a bright future for Nelskamp roofs. The advanced LONGLIFE technology means that the exposed edge now also has low porosity for permanent protection of the entire rooftop – and a visually harmonious look. LONGLIFE roof tiles stay clean for a very long time – so they always look like new. Dirt, algae and moss cannot gain a hold, and rain acts like a shower for the roof.
COLLECTION
Sigma
USE
Outdoor
PRODUCTION
Made in Germany
STANDARD ROOF PITCH
22°
QUALITY
Produced in compliance with DIN/EN 490/491 with raised longitudinal interlock and much better quality characteristics than stipulated
BENEFITS
-Overlapping side interlock and double base ribbing for optimum protection -Impermeable to water, resistant to frost and deformation, dimensionally precise with high compressive strength
INSTALL
Easy To Install
WEIGHT PER SQM (STANDARD)
41.0 kg
OVERLAP
Approx. 7.5 - 10.6 cm
TOTAL WIDTH
33.2 cm
WEIGHT PER SQM (EASYLIFE)
30.0 kg
EASYLIFE
-Weighing just around 3 kilos, the new "EasyLife" roof tile is about 30% lighter than conventional roof tiles. This makes it particularly easy to install and makes it suitable for statically weak roof trusses.
-The reduced weight is achieved by using a lightweight aggregate specially developed for Nelskamp, which does nothing to diminish its other technical characteristics. "EasyLife" is particularly suitable for renovation projects because its light weight puts hardly any strain on the roof's statics, and it isn’t normally necessary to modify the roof truss.The technical characteristics of the lightweight Sigma pantile, such as its breaking strength and frost resistance, are largely the same as those of the classic Sigma modelhe technical characteristics of the lightweight Sigma pantile, such as its breaking strength and frost resistance, are largely the same as those of the classic Sigma model
COLORS
EASYLIFE
LONGLIFE MATT
-Matt Granite -Matt brick red -Matt black -Matt new red -Matt dark grey -Matt dark brown -Matt Bordeaux Red -Matt Dark Brown -Matt Bordeaux Red
-Dark Grey
