Zehnder Pumpen Gerios Macerator Water System
Pumpen Gerios Macerator Water System
PUMPEN GERIOS MACERATOR
Product number: 20559
INFORMATION
BRAND
Zehnder Pumpen
PRODUCT TYPE
Water System
PRODUCT NUMBER
20559
MAX. HEAD
11.0 m³/h
SYSTEM
Macerator with high-performance cutting system
SCOPE OF DELIVERY
- Small parts and fastening materials
- Plug-and-play with 1.5 m power cable and safety plug
- Accessories: buoyancy protection, inlet nozzle DN 40, outlet connection 11/4" MPT/FPT, Ø32 and Ø40 connection
- Extended top section and closed cover plate available as accessories
APPLICATION
-Connection of one free-standing or wall-mounted toilet, sink, shower and bidet -single toilet lifting unit for limited use in private areas below the backflow level, e.g. basements or refurbishments -Single toilet lifting unit for limited use in private areas below the backflow level, e.g. basements or refurbishments
MAX. FLOW RATE
7.5m³/h
INPUT POWER
P1: 560 W
OUTPUT POWER
P2: 350 W
TEMPERATURE
40°C
PRESSURE OUTLET
1 1/4"
IP
68
OPTIMISED
optimised high-performance cutting system made of corrosion-resistant special steel 1.4112 with particular high hardness, wear resistance and cutting performance
CHARACTERISTIC
INLET HEIGHT
Tank made of ABS for direct connection to a free-standing toilet with minimum inlet height
VENTILATION VIA
40 Pipe
INSTALLED
Robust, wet-installed pump
POWER P1 [W]
560
PACKING DIMENSIONS
200 x 335 x 480
NOMINAL CURRENT [A]
2.5
POWER P2 [W]
350
PUMPED MEDIUM
Sewage Containing Faeces, Waste Water

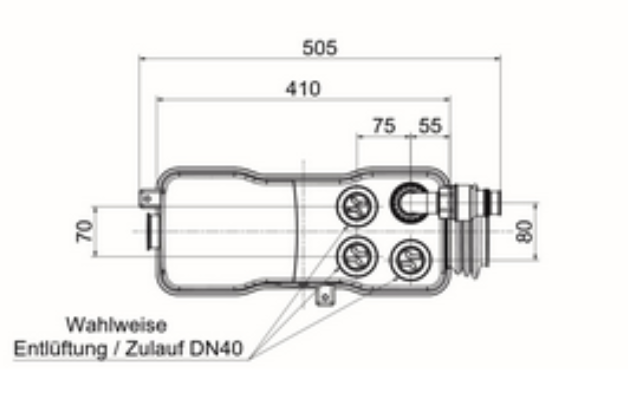

DIMENSIONS
DOWNLOAD
↓ Manual
↓ Data sheet
↓ Brochure lifting units
SPEED [U/MIN]
2950
VOLTAGE [V]
230
C [ΜF]
16
SOLIDS HANDLING [MM]
5
