3000C FORCE FEED LOADER MACHINE
3000C FORCE FEED LOADER MACHINE

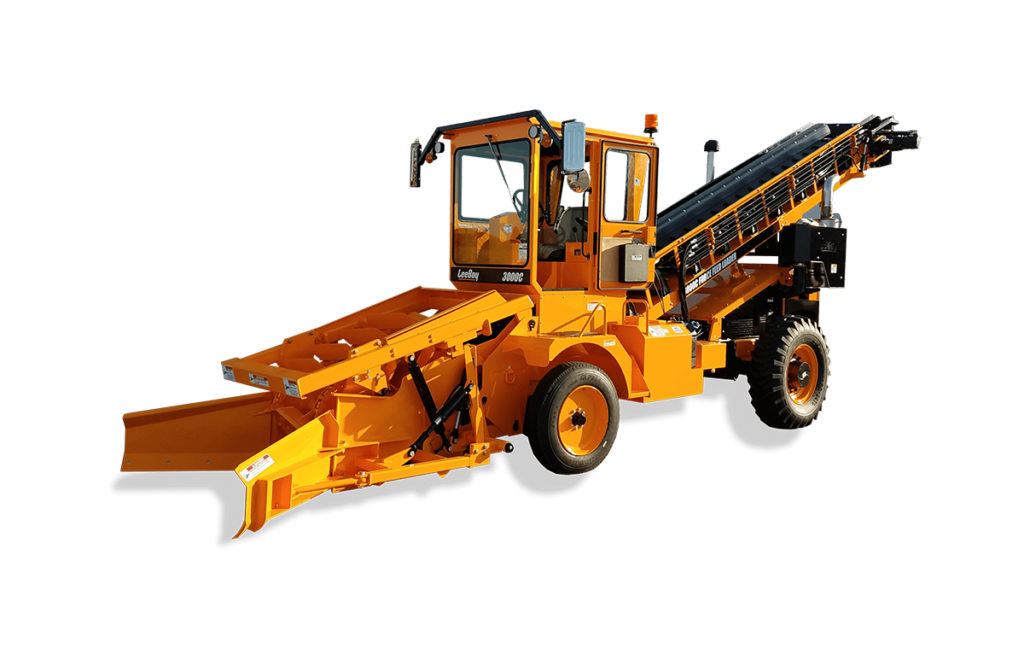

The only available machine of its kind, the versatile 3000C Force Feed Loader is a year-round workhorse, picking up soil, snow, millings or other windrowed material for fast, low-cost material loading.
The climate-controlled operator’s platform and cab enhance safety and comfort while providing superior visibility to the front pickup feeder and rear discharge conveyor. The loader excels at continuous high capacity material loading and offers safe, single or double lane operation in roadway applications.
INFORMATION
PRODUCTION
Made in USA
STEERING
Hydraulic power steering
CONVEYOR
- Belt width : 30”
- Includes 1” rubber cleats
- Conveyor length : 28’ standard
- Belt speed : 0 to 600’ per minute
- Hydraulically raised and lowered
- Independently controlled for variable speed
- Heavy-duty, reversible, 2-ply polyester cord carcass with rubber covers
DIMENSIONS
- Width : 8’ 6” transport
- Height : 11’ 7.5” minimum, 12’ 11” maximum
- Length : 34’ with 28’ conveyor 40’ with swivel attached
FUEL CAPACITIE
52 gallons
ENGINE
Cummins diesel, Tier 4 Final – 130 hp (97 kw)
TOTAL WEIGHT
- Total : 20.140 lbs
- Front : 10.020 lbs
- Rear : 10.120 lbs
- Total : 23.500 lbs with swivel
- Front : 7.300 lbs with swivel
- Rear : 16.200 lbs with swivel
FEEDER ASSEMBLY
-Paddle size : 3’ wide x 6” high
-Replaceable paddles attached to a chain assembly driven by a hydrostatically operated gear reduction and drive shaft/ sprocket assembly
HYDRAULIC RESERVOIR
52 gallons (Capacitie)
TIRES
- Front tires : 9R x 22.5, 12 ply
- Rear tires : 14 x 24, 16 ply
ENGINE BATTERIES
Two 12 volt, 835 cca (each)
ELECTRICAL SYSTEM ENGINE
12 volt with 130 amp alternator
OPERATOR’S AREA
-Fully enclosed cab including safety glass -Front and rear wiper and washer -Deluxe seat with safety belt and armrest
-Sound suppression -Tilt console
AIR CLEANER (ENGINE)
Heavy-duty dual element air filter with precleaner and a restriction indicator
ENGINE TYPE
Four-stroke turbo charged, in-line, 4-cylinder, Tier 4 Final diesel engine
BRAKES
-Hydrostatic dynamic service brakes -Foot operated, power asisted wet disc secondary brakes -Parking brakes are spring-applied hydraulically released wet disc
DRIVE
-Hand operated servo-controlled, variable speed hydrostatic pump with internal pressure override -Variable speed hydrostatic motor -Heavy-duty off road, two speed gear box, no slip differential
MOLDBOARD
-Tapered moldboard with replaceable cutting edges, factory set 7’ operating system
-Float position provided and hydraulically raised, lowered and tilted -Multi- purpose auger moldboard, optional
OPTIONAL EQUIPMENT
-180 degree swivel conveyor -Stand for swivel conveyor -Heating/air conditioner - LED work light package - Truck signal light - Radio/CD/ Bluetooth w/ dual speakers & remote -Central lubrication system - Shoulder scraper blade attachment
ADDITIONAL STANDARD EQUIPMENT
-Convex and west coast style mirrors -Cold weather engine package -Front fenders -Head lights and turn lights -LED beacon light -Back up alarm -Back-up lights -12V DC power outlet -Vandalism protection package -Horn
INSTRUMENTATION
-Low engine oil pressure, high engine temperature alarm/shut down -Color graphic control screen with digital readout. Review and monitor system vitals including voltmeter, fuel gauge, oil pressure gauge, tachometer gauge, water temperature gauge, hour meter, def fluid level -Air filter restriction indicator
