LeeBoy HB4T Hot Box
HB4T HOT BOX
HB4T HOT BOX
Perfect for the all-inclusive paving contractor and municipalities, the HB4T Hot Box provides a perfectly sized hopper for patching potholes and utility cuts.
Daily tasks can be completed with ease by relying on the trouble-free Beckett burner and the proven reliable user-friendly design.
The Hot Box keeps plant material hot and warms cold mix to the optimal working temperature. Uniquely configurable, the customizable options give the contractor the ability to create a solution specific to their exact needs.
INFORMATION
MATERIAL UNLOADING DOORS
- Insulated Guillotine style
- 36.25’’ x 22.25’’ x 1.5’’
- Multi position door
COLLECTION
Hb4t
SHIPPING WEIGHT
6.440 lbs
DUMP HOIST
- Large single scissor style
- Capacity Range: 6.4-12.9 tons
- Wired remote with magnet
MATERIAL LOADING DOORS
- Dual cantilever door
- 64’’ x 36.68’’ x 2’’
MATERIAL
Dual cantilever door
LOADING DOORS
64’’ x 36.68’’ x 2’’
INSULATION
2’’
HOPPER SIZE
4 Ton (8,000 lbs)
OPTIONAL EQUIPMENT
- Wheel chocks
- Loading hoist
- 5 lb fire extinguisher
- Hydraulic surge brake

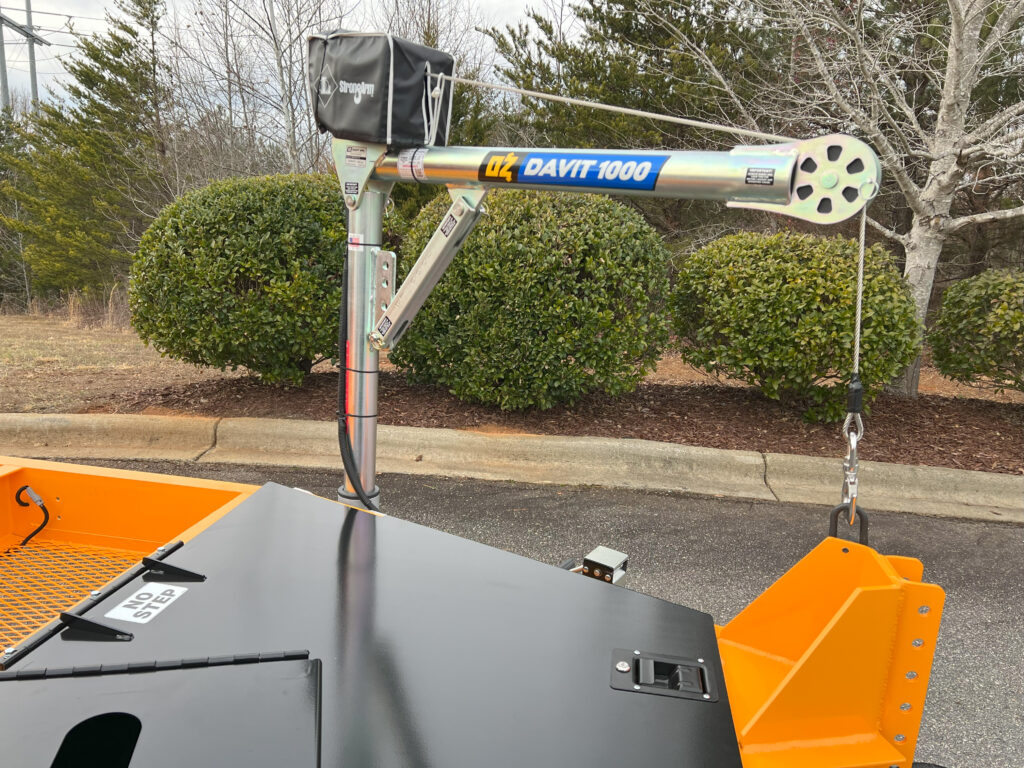

- Manual loading davit crane
- Electric loading davit crane
- Spare tire with trailer mount
- LeeBoy single direction plate compactor
- Washdown system with electric pump and hose reel
HOPPER DIMENSIONS (FOR TRAILER CONFIGURATION)
- Height : 42
- Length : 63.5’’
- Width : 55.6”
CONTROLS

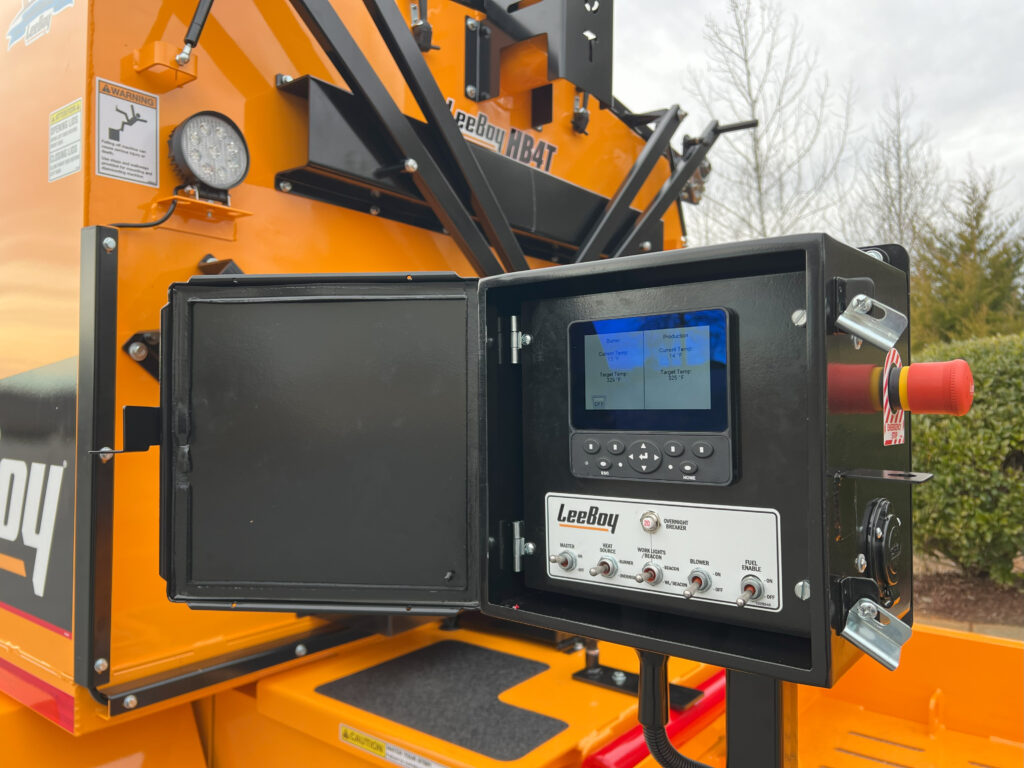

-DM430 Display with keypad -Burner and temperature controls -Working lights and beacon -LeeBoy Legacy Control Panel
COMPARTMENT
-Tool holder- Wet storage box -Pump spray holder -Compactor basket stowage with tie down provisions
STORAGE
Lockable storage compartment
ADDITONAL STANDARD
LED work light
HEAT SYSTEM
Thermostatically controlled heating
BATTERIES
- Two AGM 31 Series
- On-board battery charge
- Battery disconnect switch
DIESEL BURNER
105.000 BTU
DIESEL TANK
16 gallons
DEFLECTORS
- Variable chute deflecto
- Frame width shovel apron
EQUIPMENT
Beacon light
LOADING DOORS
64’’ x 36.68’’ x 2’’
LOADING DOORS
- 36.25’’ x 22.25’’ x 1.5’’
- Multi position door
DESIGN
User-friendly
CREATE
Solution Specific
DIMENSIONS (TRAILER CONFIGURATION)
- Length : 18′ 4”
- Height : 7’ 8”
- Width : 6’ 8”
