Zehnder Pumpen Vectis 400 Water Pump
VECTIS 400 WATER PUMP
VECTIS 400 WATER PUMP
Submersible waste water pump, made of corrosion- and shock-resistant polypropylene and high-grade stainless steel
INFORMATION
BRAND
Zehnder Pumpen
PRODUCT TYPE
Water System
NOMINAL CURRENT
1.4 A
APPLICATION
Disposal
PRODUCT NUMBER
21664
MAX. FLOW RATE
7.0 m³/h
INPUT POWER P1
400 W
OUTPUT POWER P2
300 W
PRESSURE OUTLET
1 1/4" External thread
FREQUENCY
50
HEAD UP TO [M]
7.0
DIMENSIONS
- Height : 254 cm
- Width : 183 cm
- Length : 280 cm
PACKINGING DIMENSIONS
- Height : 290 cm
- Width : 260 cm
- Length : 240 cm
INSTALLATION LOCATION
- Portable
- Pump sumps
- Outside buildings
MAX. HEAD
7.5 m
SOLIDS HANDLING
10 mm
MAX. TEMPERATURE
35 °C
SPEED [U/MIN]
2800
MATERIAL
- Seal motor : Shaft seal
- Seal pump : Shaft seal
- Material impeller : PA6 GF25
- Material pump housing : PP GF30
- Material motor housing : Stainless steel AISI 316
TECHNICAL DRAWINGS
DOWNLOADS
↓ Manual
↓ Data sheet
POWER P2
200
FEATURES
Mit Schwimmerschalter
WATER PUMP
Submersible waste water pump made of plastic
C [ΜF]
10
VOLTAGE [V]
230.400

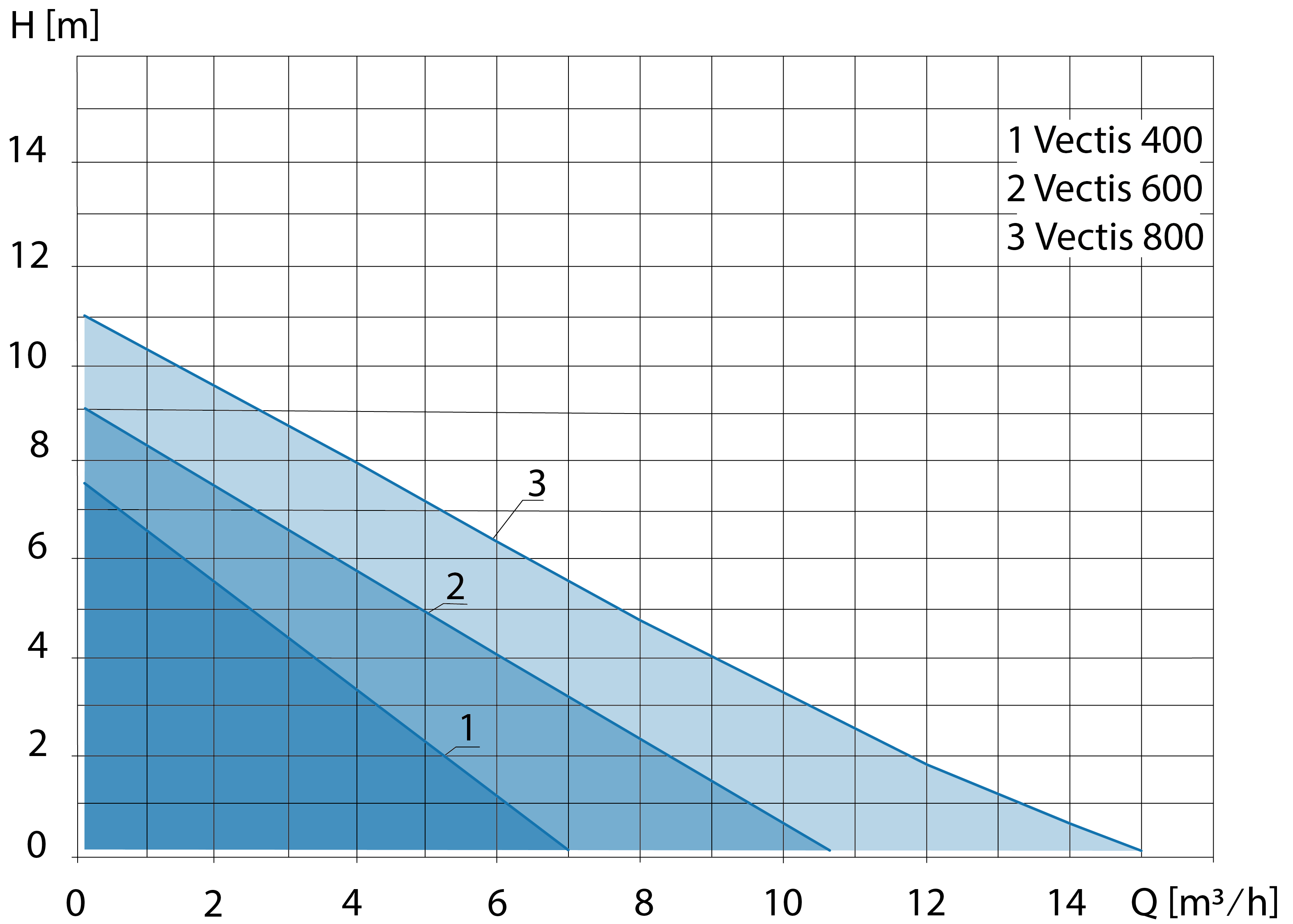

CHARACTERISTIC
PUMPED MEDIUM
- Clear water
- Rainwater
- Waste water
SCOPE OF DELIVERY
- Non return valve
- 90° hose connecting bend
- Locking device for continuous operation
- Pump with 10 m power cable and plug
APPLICATION
-Portable pump for emergency drainage -Pumping of clear water and waste water from pits, drainage manholes, cellars etc. -Drainage of domestic waste water without faeces from showers, washing machines, washbasins etc.
MODEL
- Integrated vent screw
- Horizontal pressure outlet 1 ¼” MPT
- triple sealing by shaft sealing rings
- automatic mode due lever float switch
- protection grade IP 68 – fully submersible
- motor winding with thermal winding protection
- flat suction function due removable suction strainer
- Submersible waste water pump, made corrosion & shock-resistant polypropylene and high-grade stainless steel
