RATIA FIREPLACE

RATIA FIREPLACE

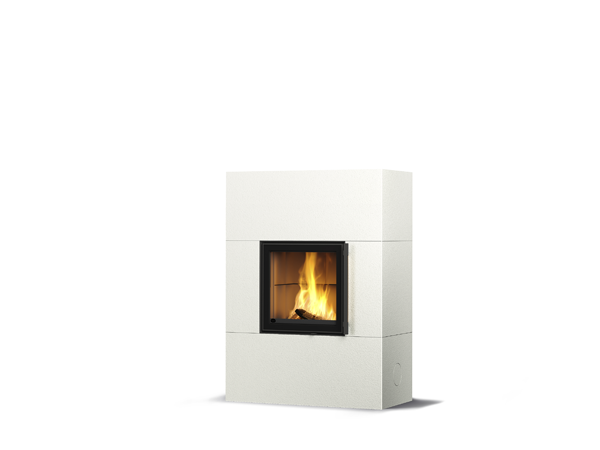

Raita is an elegantly modern soapstone masonry heater with no extra decorative touches. You can choose from the smooth, ribbed or water-cut Grafia soapstone tiles for the surface of the fireplace.

INFORMATION

BRAND

Tulikivi

PRODUCT TYPE

Fireplace

DETAIL (OPTIONAL EXTRAS)

The large, square door is equipped with double glazing, which allows the heat to slowly and gently fill the room. The back of the door handle is made of wood.

WEIGHT

- 1500 kg soapstone surfaces
- 1130 kg other surfaces kg

COLLECTION

Ratia

PRODUCTION

Made in Finland

FLUE CONNECTION DETAIL

Recommended flue size and diameter of round flue ø 150...210 mm

EFFICIENCY

84 %

ENERGY INTENSITY

41.9 kWh

HEAT RELEASE TIME,% OF MAXIMUM POWER (H)

- 6.1 h (100%)
- 18.1 h (50%)
- 28.8 h (25%)

AREA TO BE HEATED

50-70m²

SAFETY DISTANCES

- Back : 2 cm
- Side : 5 cm

FEATURES

-Its high efficiency saves wood. -An efficient heat plant for many kinds of needs. -Stylish, easy to use and well sealed doors and air controls. -A hybrid fireplace that can fire pellets without special accessories. -A long heat release time and a tightly sealed structure. A great choice for low-energy homes. -Very low particulate and carbon monoxide emissions, surpassing even the world’s toughest emissions standards.

DIMENSIONS

- Width : 1100 mm
- Depth : 550 mm
- Height : 1500 mm
- Firebox width : 470 mm
- Firebox depth : 345 mm

USE

Heating

MAXIMUM AMOUNT OF WOOD

12 kg

FLUE CLASS

T400

DOWNLOADS

↓ Energy label: Ratia 21
↓ Energy label: Ratia18
↓ Energy label: Ratia 15
↓ Energy label: Ratia 2D 21
↓ Energy label: Ratia 2D 18
↓ Declaration of Performance :TU-S-DT-1800
↓ Declaration of Performance :TU2D-S-DT-2100
↓ Declaration of Performance :TU-S-DT-1500
↓ Declaration of Performance :TU2D-S-DT-1800
↓ Declaration of Performance :TU-S-DT-2100

ADVANTAGES

-Our range of fireplaces is available in over 1000 different combinations, but we have grouped them into six distinct collections to make the selection process easier for you, whether you are looking for a traditional bakeoven or a compact heating unit for a passive building. Try our Fireplace Assistant or take a closer look at the models in our range. With all our installations, our principle is “all you need to do is light the fire”, whether you need us to dismantle your old fireplace and install a new Tulikivi, or put in a Tulikivi as a first installation.

Either way, you will simply need to fill the firebox, light the fire, sit back and enjoy the warmth from your new Tulikivi. -Our fireplaces are not just elegant, but also efficient and safe to use. You only need a small amount of wood in a Tulikivi, which will burn cleanly, generating only a little ash. It will come as no surprise to learn that our fireplaces exceed even the toughest emissions standards. -Tulikivi fireplaces are excellent at retaining heat, which the stone then releases slowly and steadily as radiant heat to give a warm and comfortable atmosphere.

-The surface of a Tulikivi fireplace and flue will however remain at a low enough temperature to be safe to touch. -All Tulikivi’s fireplaces are made of the highest quality natural materials, with close attention to detail and an assurance that the fireplaces will combine elegance with practicality. The doors are designed in-house and offer excellent seals and ease of use, while the fireplaces themselves are easy to clean and maintain. By applying a new Tulikivi “Color” coating, you can give your fireplace a whole new look and continue to enjoy the beauty of a glowing fire for many years to come.

SURFACE OPTIONS

CLASSIC

Classic is a smooth soapstone surfacethat highlights the different shades of the stone. The surface feels just like velvet.

GRAFIA

Grafia has a structured surface where the soapstone is water-cut to produce a roughened and glimmeringgrain. Pictures do not do justice to the beauty of the surface – you must see it for yourself!

NOBILE

Nobile looks and feels luxurious. The new type of stone surface almost feels like suede. Soapstone with Nobilesurface treatment is darker than the original smooth stone surface.

UNICA

The Unica soapstone surface follows in the footsteps of the luxurious, suede-like Nobile surface. Unica is soothing and exquisite, with horizontal ribbing that flows softly across its pleasing dark-toned surface.
