SOLAR TILE G10 S PV ROOF
SOLAR TILE G10 S PV ROOF

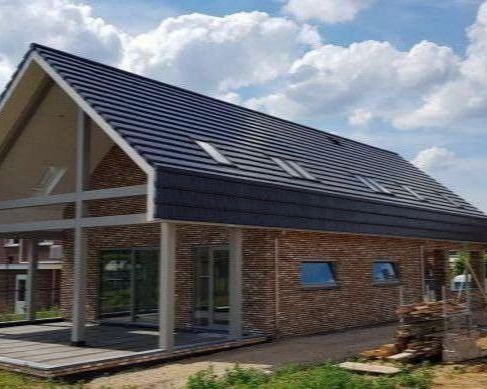

Do you want a new roof covering with a modern design, sustainability, and a profitable technology? The G10 S PV system combines all three, and is hardly noticeable on the roof. The overlapping G10 S PV modules, like the smooth tiles, lie directly on the roof lathing for a uniform and even overall appearance.
INFORMATION
BRAND
Nelskamp
PRODUCT TYPE
Roof
PRODUCTION
Made in Germany
MODULE PERFORMANCE Pmax
104 Wp
COLLECTION
Solar
SHORT CIRCUIT CURRENT Isc
13.03 A
NO-LOAD WORKING VOLTAGE Voc
10.28 V
MAXIMUM TESTED SYSTEM VOLTAGE
1000 V
MAXIMUM VOLTAGE Vmp
8.44 V
TEMPERATURE COEFFIZIENT Voc
-0.30%/K
TEMPERATURE COEFFIZIENT Isc
+0.06%/K
RATED WORKING CURRENT Im
12.39 A
RECOMMENDED SYSTEM VOLTAGE
Bis ca. 600 V
TEMPERATURE COEFFIZIENT Pmpp
-0.39%/K
HAIL RESISTANCE
IEC 61215 & IEC 61730
CELL EFFICIENCY
22.1 %
MODULE CABLE
2 x 4.0 mm² je 850 mm long
MODULE MEASURES
- Decklänge 384 mm - 404 mm
- Deckbreite 6 Ziegel
ca. 1500mm
MIN. ROOF PITCH
25° bei Verbanddeckung
30° bei Reihendeckung
PLUGS
MC4
MODULE WEIGHT
ca. 9.0 kg
COLOR & SURFACE
BENEFITS
The G10 S PV module is supplied as a ready-to-install unit for easy, quick and safe installation. The variable (20mm) overlap area permits a uniform roof layout, while the prefabricated cables with MC4 plugs allow for safe and simple connection of the powerful modules. The narrower module format of 6 G10 tile widths allows a more flexible allocation and is advantageous especially for hipped or tent roofs as well as on roofs with several windows, dormers, chimneys… Furthermore the new G10 S PV module offers additional ventilation for a higher yield via a toothed module frame.
- Only 3 screws per module
- 20mm variable cover length
- Ca. 6.4m² roof area per kWp
- Product guarantee: 10 years
- Performance guarantee:
- 25 years 80 % of rated performance"
- Modules interlock with the roof tile G10 NEW
- Delivered as a ready to install unit- 10years 90 % of rated performance
- Hanging nib and side interlock for swift, easy and secure laying
